Diesel-hydraulic power pack MNS-6/1 BK series
Auxiliary Equipment

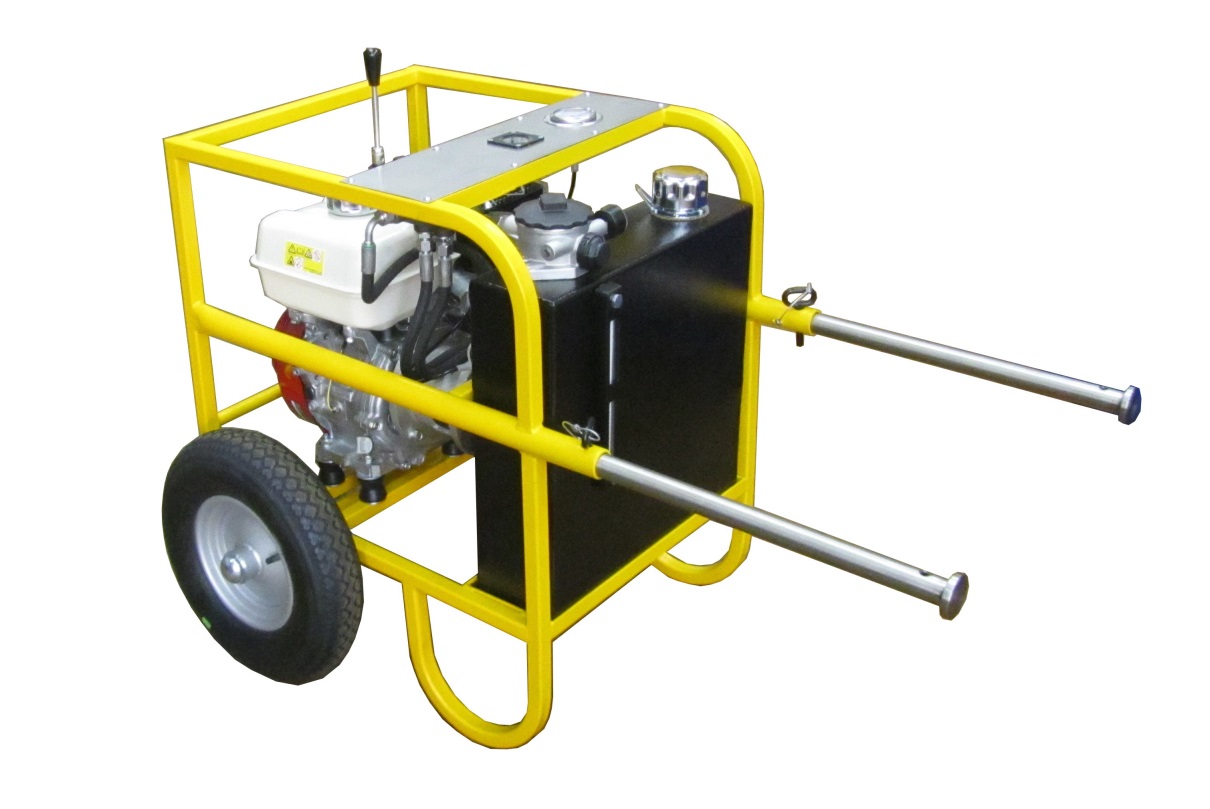

Diesel hydraulic power pack MNS-6/1 BK series
Description
Diesel hydraulic power pack MNS-6/1 BK series is designed for autonomous operation of different hydraulic equipment including hydraulic reels for the deployment and storage of the sea inflatable booms Zaslon-Sea series.
Diesel hydraulic power pack MNS-6/1 BK series is reverse one, that means that it can be used both for the booms’ deployment and for booms’ bringing aboard from water surface.
Diesel hydraulic power pack MNS-6/1 BK series is reverse one, that means that it can be used both for the booms’ deployment and for booms’ bringing aboard from water surface.
Properties
| Characteristic | Parameters |
| Weight (dry), kg | 85 |
| Dimensions, mm | 810х810х820 |
| Hydraulic tank capacity, l | 30 |
| Quantity of the hydraulic flows | 1 |
| Maximum pressure of the working liquid, MPa | 20 |
| Engine type | diesel |
| Power, kW | Not less then 6,0 |
| Nominal temperature of the working liquid | 45°С |
