Oil Flushing Installation “GP-1”
Auxiliary Equipment

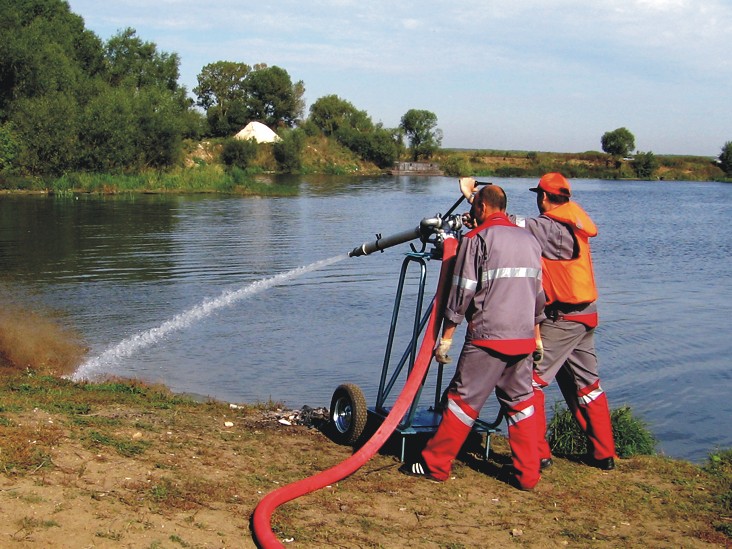

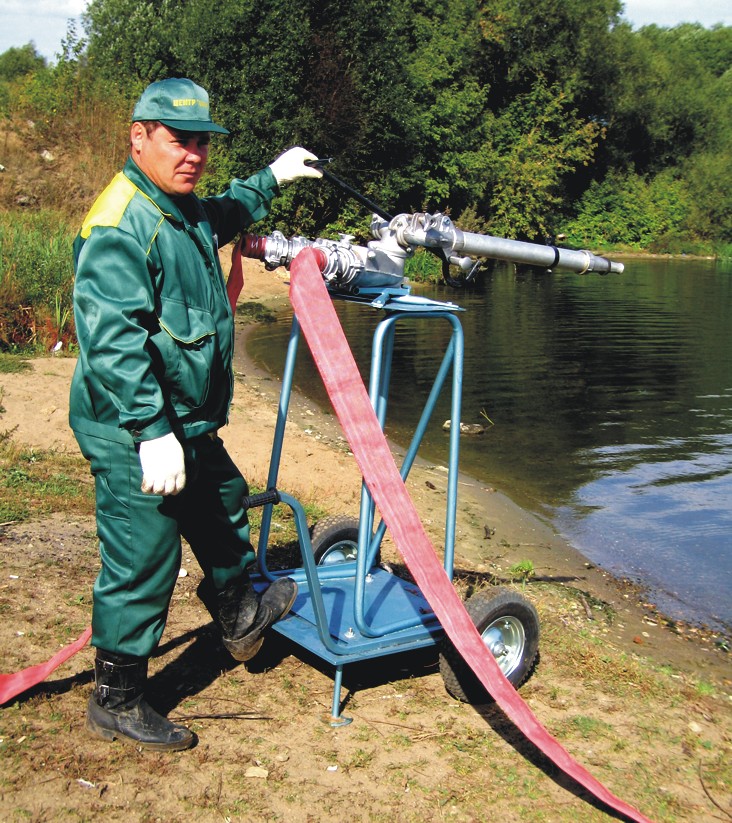

Installation “GP-1”
Installation “GP-1”

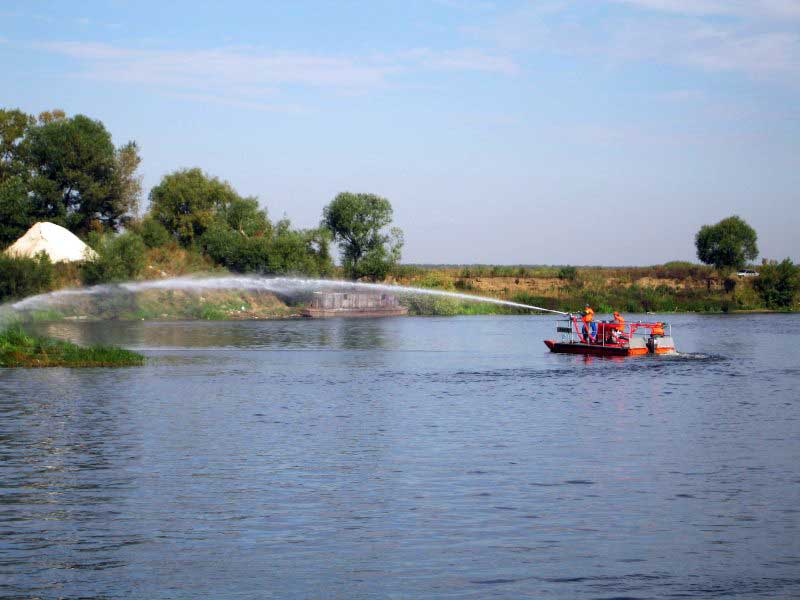

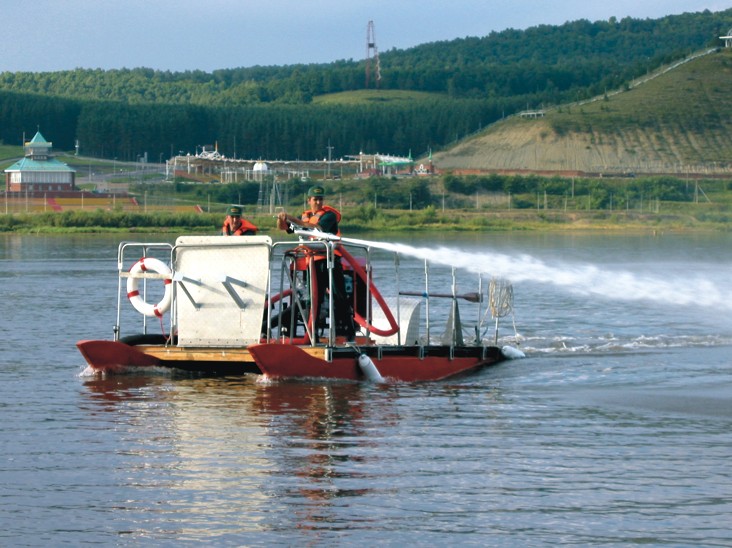

Installation “GP-1” on catamaran boat
Description
for herding the oil slick to desired location on water “GP-1” is intended first of all for
cleaning of coastal zone of the rivers and lakes from oil.
Oil flushing installation “GP-1” is delivered in complete set of the equipment consisting of a motor-pump and a regular fire fighting portable monitor.
Installation can be used autonomously or be mounted on the catamaran boat.
Installation “GP-1” can be used:
- for cleaning of coastal zone of the rivers and lakes from oil
- for cleaning of the equipment used during the oil spill recovery
- for fire fighting
Equipment
- Motor pump with built-in motor;
- Pressure portable barrel (PNPS-20);
- Support stand for the barrel;
- Suction pressure hose;
- A set of pressure relief hoses.
Properties
|
Description |
Ratings |
|
Maximum water delivery, (l/sec) |
20 |
|
Nameplate water delivery, (l/sec) |
13,3 |
|
Maximum geometric suction height, m |
7,5 |
|
Pump type |
Two-stage centrifugal console |
|
Motor pump dimensions, m |
1,21 х 0,72 х 0,92 |
|
Motor pump weight, kg |
215 |
|
Motor pump engine 75 (hp) |
4-stroke gasoline carburetor |
|
Fuel capacity, l |
20 |
|
Fuel consumption, l/h |
8,6 |
|
Angle of rotation, deg |
360 |
|
Maximum speed of water supply by the pressure barrel, l/s |
20 |
|
Suction pressure hose diameter, mm |
100 |
|
Relief pressure hoses diameter, mm |
70 |
