Portable Heating Installation

 Company «Ecoservice Oil» offers portable heating installation.
  The installation set is good for heating skimmed oil in cold weather conditions and also for increasing fluidity of skimmed high-viscous oil. Moreover the portable heating installation is indispensable when independent heating system needed.

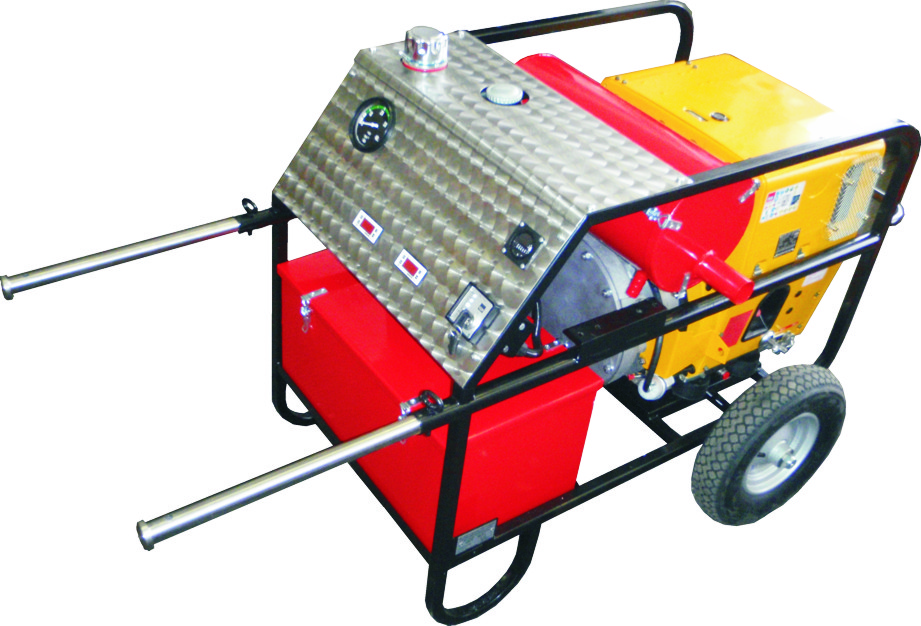

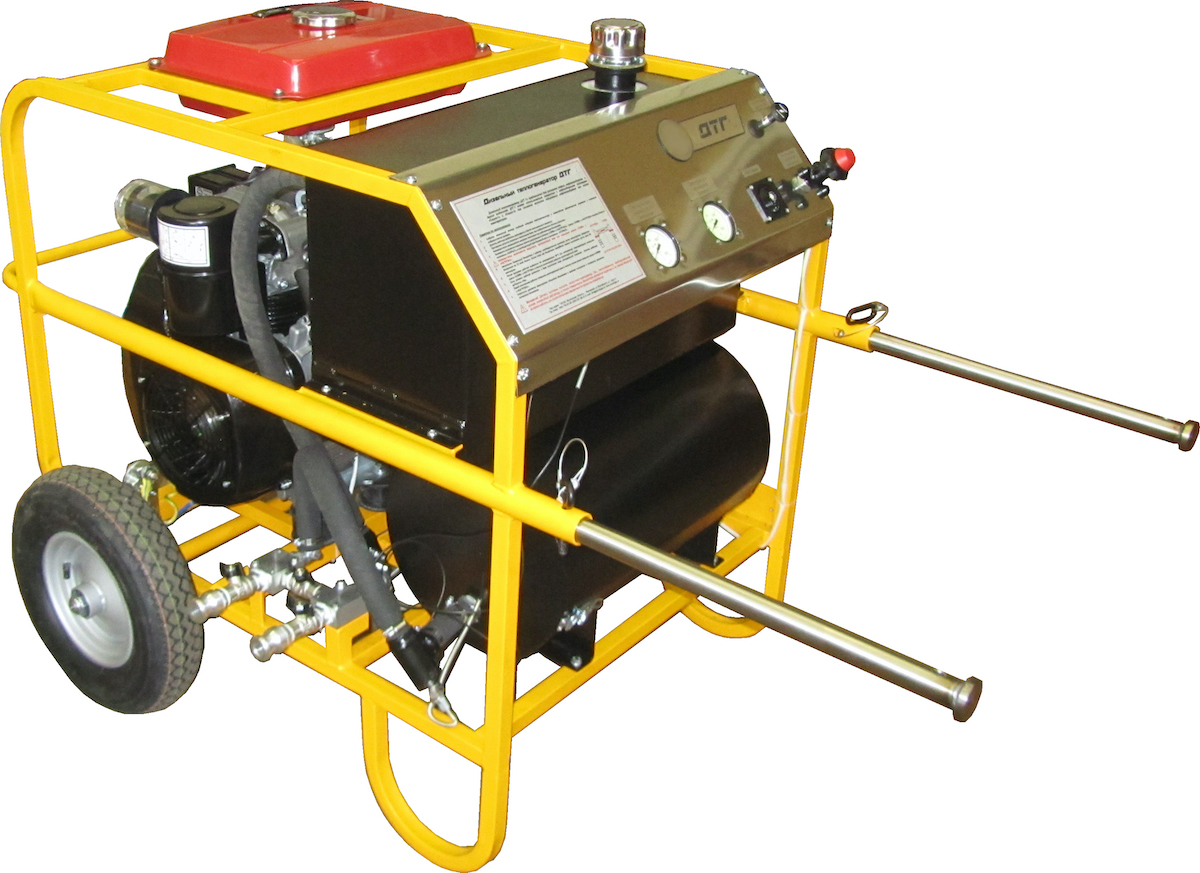

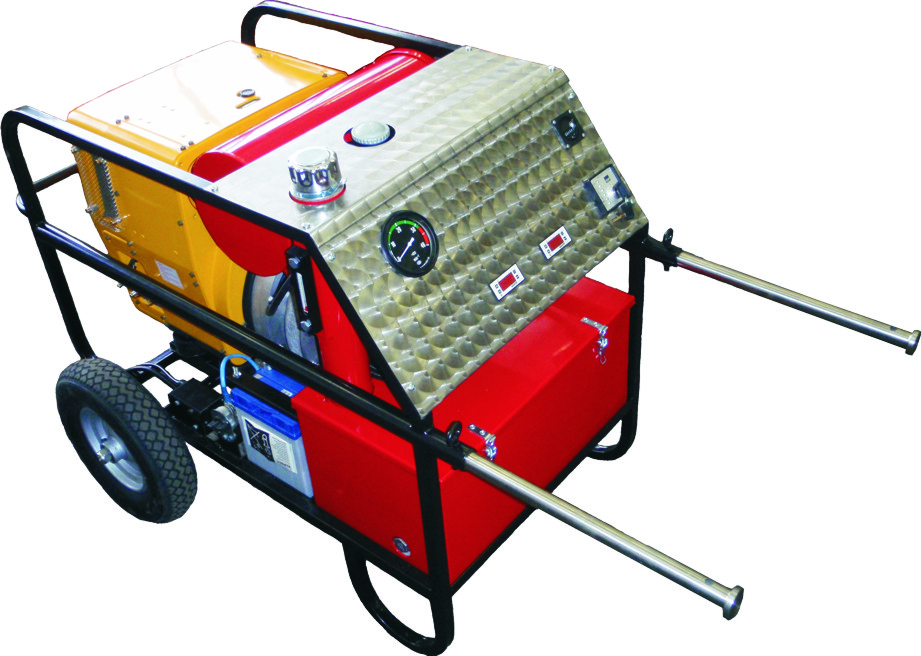

  The heating installation independent work is provided by diesel engine. The circulation pump makes the inner liquid heating.
  The installation is equipped with a special recovery appliance used for recovering of waste-gas heat that comes out of diesel engine exhaust pipe.
  At its first stage the heating installation makes heating fluid circulate and heat the pump’s inner circuit.

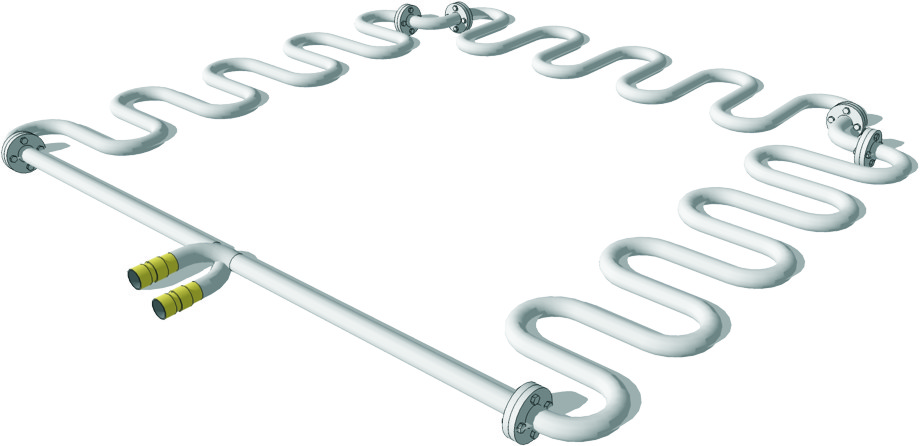

  Being heated up to 80-90 ^оС heating fluid comes to the outer heat generating set closed circuit. The shape and the size of the outer heating coil may vary according to the goals.
  Diesel engine exhaust pipe equipped with spark arrestor.
  Depending on coil length and size required by customer the heating installations can be manufactured with power packs output from 10 till 90 kW.

Description	Ratings
Total weight of heat-generating installation,  (dry), kg	250
Overall dimensions, mm	1180 х 710 х 910
Hydraulic tank capacity, l	40
Maximum pressure of the inner fluid, МPa	0,02
Pumping power unit engine model and type	Diesel, Lombardini 25 LD 330-2
Pumping power unit engine output, кW	12
Number of pumping power unit hydraulic pumps	2
Hand starter	Yes
Fuel tank capacity, l	12,5
Type of the inner fluid	Water or antifreezing agent
Type of hydraulic pump	cavitational
Hydraulic pump capacity, l/min	50
Maximum temperature of the inner fluid in the outer heat generating set closed circuit	+ 80 °С
Maximum time heating of the inner fluid  in the outer heat generating set closed circuit  till maximum temperature, min	50
Heat transmission power, kW	22
Acceptable environmental temperature during exploitation	not below – 40 °С
