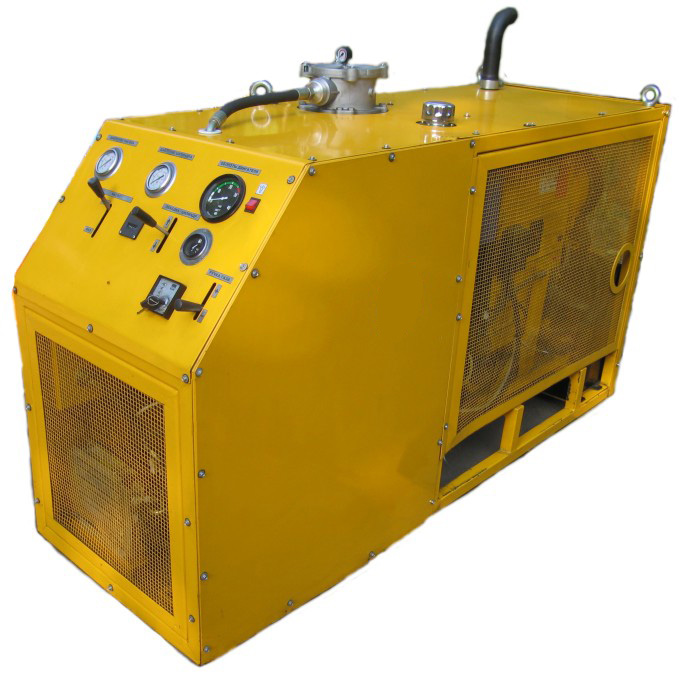

Oil pump station “MNS-40/3”
Hydraulic Powerpacks
Description
| Description | Ratings |
| Power station weight (dry), kg | 400 |
| Power plant dimensions, mm | 1960 х 740 х 1320 |
| Power station launcher | electric starter |
| Engine type | Diesel |
| Engine power, kW | 40 |
| Fuel tank capacity, l | 40 |
| System type (number of lines) | Dual-flow |
| Number of hydraulic pumps | 1 double |
| Hydraulic pump type | Doubled gear |
| Productivity of the 1st section, l / min | 70 |
| Productivity of the 2nd section, l / min | 4 |
| Nominal pressure, bar (MPa) | 160 (16) |
| Maximum pressure, bar (MPa) | 200 (20) set by valve setting |
| Maximum hydraulic flow of line 1 (adjustable), l / min | 0-70 |
| Maximum hydraulic flow of line 2 (adjustable), l / min | 0-4 |
| Oil volume in the tank, l | 200 |
| Working fluid | И-20А, ВМГЗ ТУ38-101479-86 |
| Purity class of the working fluid according to GOST 17216-71 | 10 |
| Working fluid nominal temperature | 45ºС |
| Hydraulic connections (quick couplings): | |
| Pressure line 1 | 1/2” |
| Pressure line 2 | 3/4” |
| Drain line | 3/4” |
| Drainage line | 3/8” |
| Cooling of working fluid | Air, forced |
| Cooler type | Fan (electric 12V) |
| Storage ambient temperature | [-60ºС;+60ºС] |
| Ambient temperature during operation | [-45ºС;+45ºС] |
| Maximum distance of the consumer from the station | 20 m |
| Operation in a hazardous area class | “Zone 2” |
| Power station hull painting | Powder technology |
