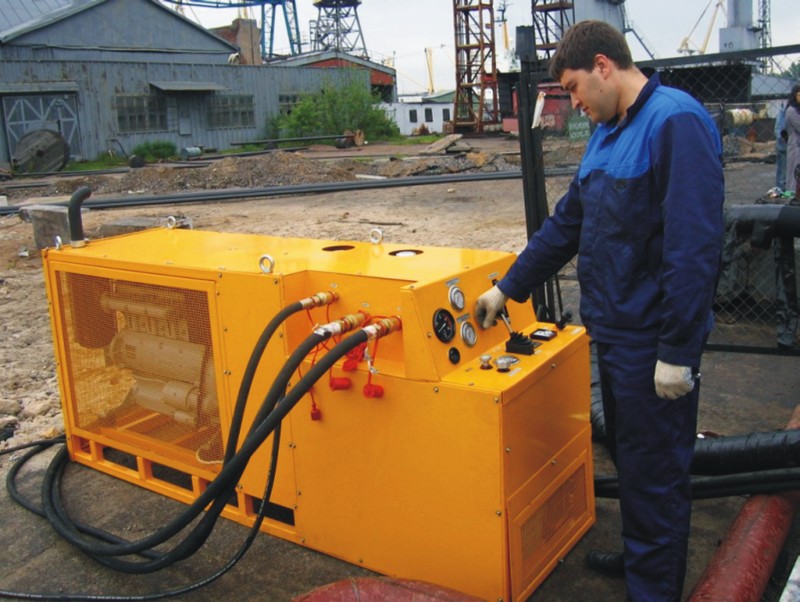

Oil pump station “MNS-52/2 D”
Hydraulic Powerpacks
Description
|
Description |
Ratings |
| Power pack weight (dry), kg |
500 |
|
Power pack overall dimensions, mm |
1700 х 670 х 1050 |
|
Method of power pack start-up |
Electric starter |
|
Engine type |
Diesel |
|
Engine power, kW |
52 |
|
Engine fuel tank capacity, l |
40 |
|
System type (flow quantity) |
2 hydraulic flows |
|
Hydra pump quantity |
2 |
|
Hydra type model and type |
Axial-piston / Double senary |
|
The first section efficiency, l/min |
160 |
|
The second section efficiency, l/min |
3 |
| Nominal pressure, bar (МPа) |
210 (21) |
| Maximal pressure, bar (МPа) |
250 (25) |
| Maximum hydraulic flow of the first hydraulic line (adjusted), l/min |
160 |
| Maximum hydraulic flow of the second hydraulic line (adjusted), l/min |
3 |
| Hydraulic oil tank volume, l |
200 |
| Nominal temperature of hydraulic fluid |
45ºС |
| Hydraulic fluid cooling |
Forced air-cooling |
| Storage ambient temperature |
-60ºС – +60ºС |
| Operation ambient temperature |
-45ºС – +45ºС |
| Maximal distance from the consumer |
30 m |
