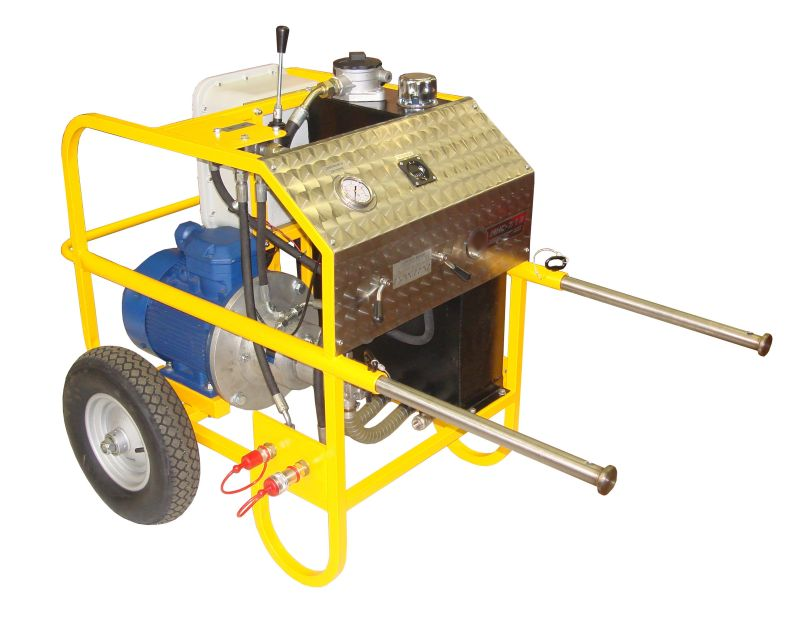

Oil pump station “MNS-7 / 2E”
Hydraulic Powerpacks
Description
| Description | Ratings |
| Power station weight (dry), kg | 115 |
| Power plant dimensions, mm | 1250 х 820 х 1120 |
| Power station launcher | explosion-proof starter |
| Engine type | Electric |
| Engine power, kW | 7,5 |
| Fuel tank capacity, l | – |
| Rated voltage value, V | 380 |
| System type (number of lines) | Dual-flow |
| Number of hydraulic pumps | 2 |
| Hydraulic pump type | Doubled gear |
| Productivity of the 1st section, l / min | 18 |
| Productivity of the 2nd section, l / min | 11 |
| Maximum pressure, bar (MPa) | 150 (15) set by valve setting |
| Maximum hydraulic flow of line 1 (adjustable), l / min | 0-18 |
| Maximum hydraulic flow of line 2 (adjustable), l / min | 0-11 |
| Oil volume in the tank, l | 40ºС |
| Working fluid nominal temperature | 45ºС |
| Cooling of working fluid | Air, without forced airflow |
| Heat exchanger brand and type | By agreement with the customer, it is possible to install forced oil cooling |
| Storage ambient temperature | [-60ºС;+45ºС] |
| Ambient temperature during operation | [-45ºС;+45ºС] |
| Maximum distance of the consumer from the station | 20 m |
