Autonomous Ice Cutting Device “Icecutter”
Ice Cutting Device at Water Bodies in Freeze up Time

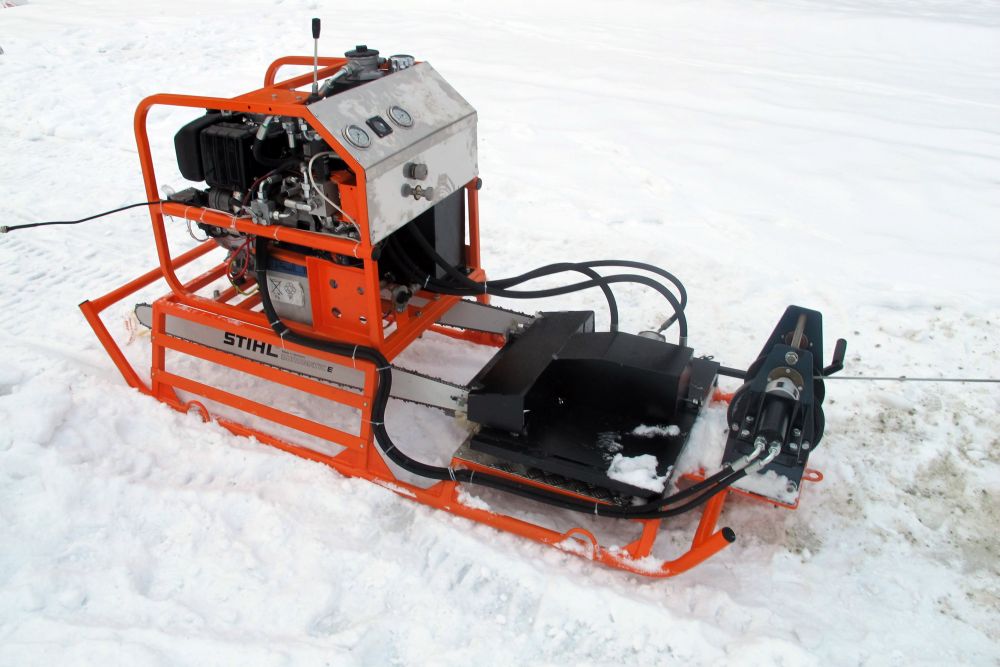

Portable Mobile Ice Cutting Device “Icecutter”
Description
Portable mobile ice cutting devices «Icecutter» series designed for cutting slots (channels) and rectangular wells in ice at water bodies for technological operations at ice cover of water bodies. Different diesel-hydraulic power packs can be used for providing work of ice cutting devices «Icecutter» series including diesel-hydraulic power packs for oil spill response equipment (engine power more than 9 kW). Ice cutting devices «Icecutter» series can be used with the maximum ice thickness 80 sm. Channel cutting speed of ice cutting
device is up to 100 m/hour. The hummocked and heavily snowed ice prior to ice cutting shall be cleaned up.
device is up to 100 m/hour. The hummocked and heavily snowed ice prior to ice cutting shall be cleaned up.
Properties
| Description | “Icecutter” |
|---|---|
| Type of Device | Portable, mobile |
| Operating element |
2 bars (length 900 mm) |
| Auxiliary equipment |
1. Manual wire winch |
| Maximum ice thickness, mm |
850 |
| Breadth of cutted channel, mm |
400 |
| Channel cutting speed, m/min |
up to 1,5 |
|
Device dimensions: length, mm breadth, mm height, mm |
|
| Weight, kg |
up to 230 |
