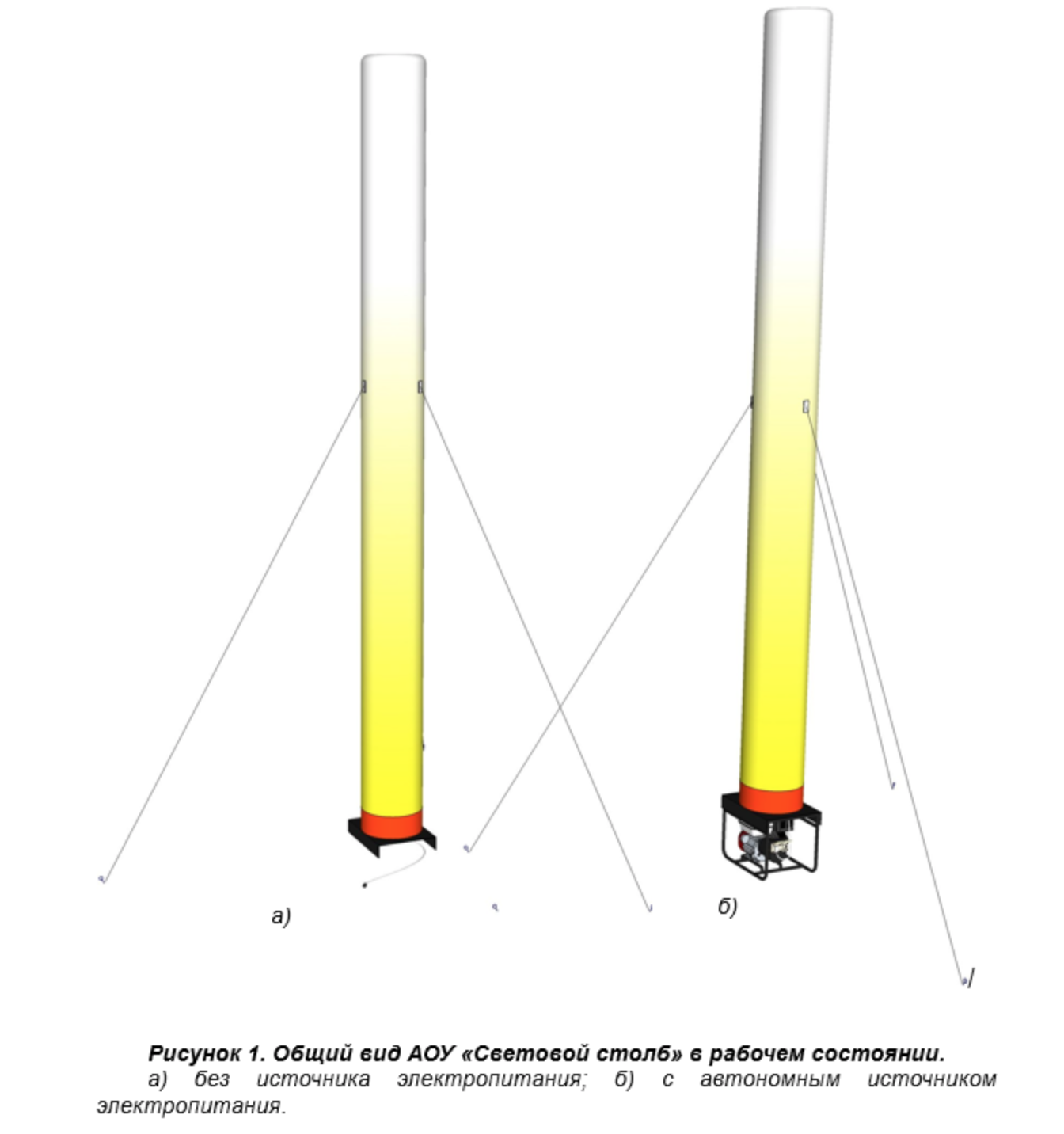

Emergency installation ” Light pole”
Lightning Installation
Description
Equipment
- Installation “Light pole” (fabric base, lamp, air blower);
- Gasoline electric generator;
- Insurance stretchers and pegs;
- Spare lamp HPS;
- Supporting documentation (installation passport)
Complectation variations
|
|
Modification |
Height, m |
|
1 |
“Light pole” 600 W (mains supply 220 W) |
3-5 |
|
2 |
“Light pole” 600 W (mains supply 220 W) |
5 |
|
3 |
“Light pole” 600 W (mains supply 220 W) |
5-7 |
|
4 |
“Light pole” 600 W (mains supply 220 W) |
7 |
|
5 |
“Light pole” 1000 W (mains supply 220 W) |
3-5 |
|
6 |
“Light pole” 1000 W (mains supply 220 W) |
5 |
|
7 |
“Light pole” 1000 W (mains supply 220 W) |
5-7 |
|
8 |
“Light pole” 1000 W (mains supply 220 W) |
7 |
|
9 |
“Light pole” 600 W (petrol generator 2,5 kW) |
3-5 |
|
10 |
“Light pole” 600 W (petrol generator 2,5 kW) |
5 |
|
11 |
“Light pole” 600 W (petrol generator 2,5 kW) |
5-7 |
|
12 |
“Light pole” 600 W (petrol generator 2,5 kW) |
7 |
|
13 |
“Light pole” 1000 W (petrol generator 2,5 kW) |
3-5 |
|
14 |
“Light pole” 1000 W (petrol generator 2,5 kW) |
5 |
|
15 |
“Light pole” 1000 W (petrol generator 2,5 kW) |
5-7 |
|
16 |
“Light pole” 1000 W (petrol generator 2,5 kW) |
7 |
Properties
|
Description |
Ratings |
|
Overall dimensions in operating condition: |
|
|
lenght, mm |
600 |
|
width, mm |
450 |
|
height, m (depends on model) |
3-5 |
|
Overall dimensions in transport condition: |
|
|
lenght, mm |
620 |
|
width, mm |
470 |
|
height, mm |
850 |
|
weight, kg |
≤65 |
|
light source |
high pressure discharge lamp DNAT or DNAZ |
|
Light source power, W (depends on model) |
600 |
|
Luminous flux, Lm |
86 000 |
|
Inflation time of the fabric cylinder, sec, up to |
30-60 |
|
Lamp full charge time, min |
3-5 |
|
Restarting tome for lamp, min |
15-20 |
|
Wind resistance, m/s, up to |
20 |
|
Electric shock protection class |
1 or P (1 или П) |
|
Air blower |
|
|
Productivity, m³ / min |
2,5 – 3,5 |
|
Operating hours counter |
+ |
