“Zaslon” series
Oil Containment Booms

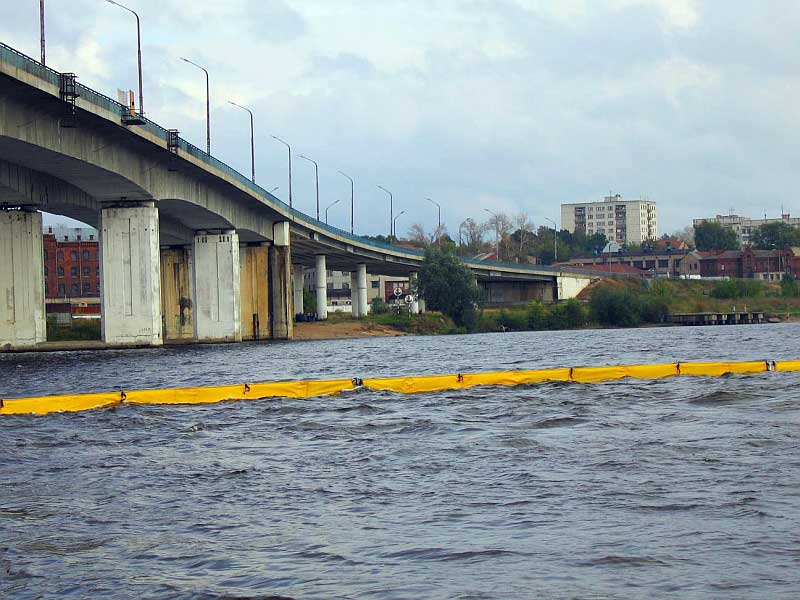

“Zaslon – 90Р”

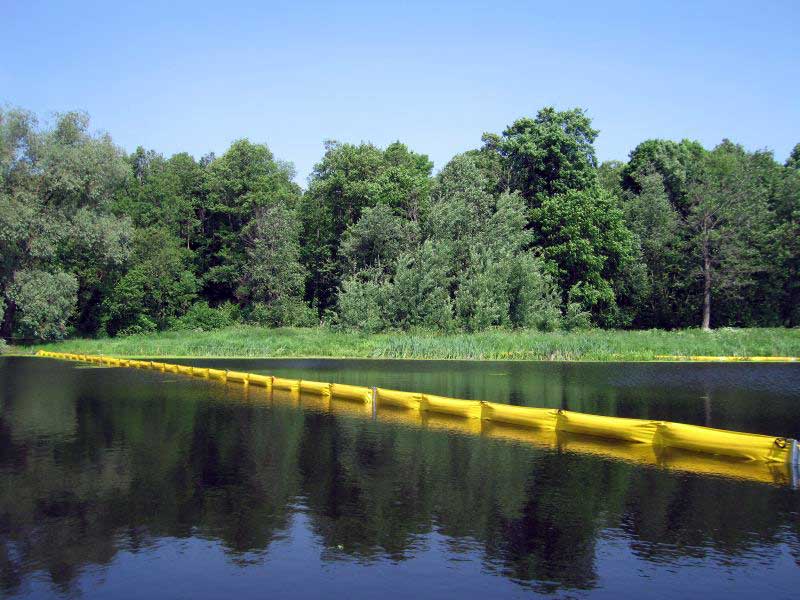

“Zaslon – 50”

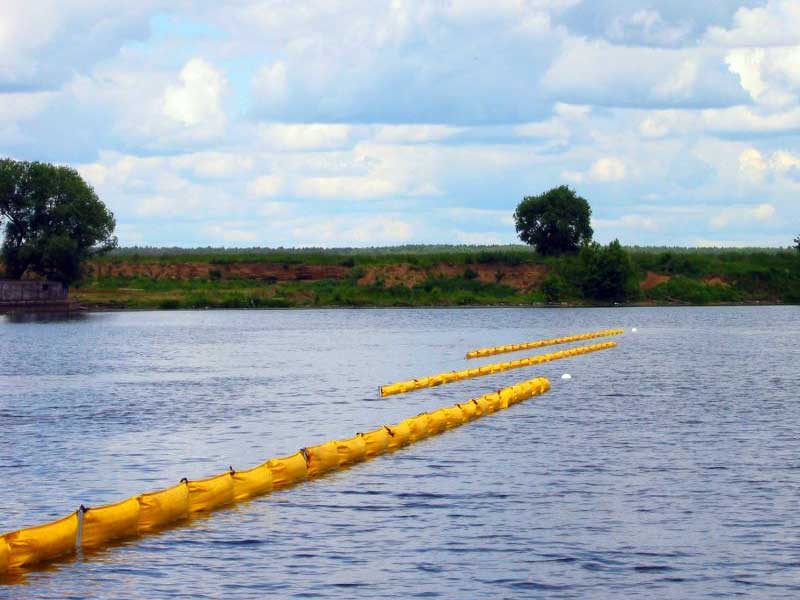

“Zaslon – 50”
“Zaslon – 70”
Description
The «Zaslon» series solid float type oil booms manufactured by company «Ecoservice Oil» are designed for efficient containment of oil and other pollutants spilled on water surface. The «Zaslon» series oil boom fabric is made of two-sided PVC or PVC+ polyurethane coating polymer-tissue. These materials are perfectly resistant to oil, gasoline, mineral oil, sea water and ultraviolet influence.
The oil boom can be produced in yellow, orange and red colors.
Floating units of «Zaslon» series oil boom are made of elastic foam polyethylene. The floatations of «Zaslon» series oil boom have cylindrical or flat shape.
All the connectors of «Zaslon» series oil booms are made from anodized aluminum and designed as Z-shaped quick connecting couplings. The «Zaslon» series oil boom section length is of 10-30 m. The «Zaslon» series oil booms are effective at currents up to 1,5 m/s. Storage and operation ambient temperature recommended for «Zaslon» series oil booms should be within the range from -30°С to + 60°С.
Recommended range of application of the «Zaslon» series oil booms:
The oil boom can be produced in yellow, orange and red colors.
Floating units of «Zaslon» series oil boom are made of elastic foam polyethylene. The floatations of «Zaslon» series oil boom have cylindrical or flat shape.
All the connectors of «Zaslon» series oil booms are made from anodized aluminum and designed as Z-shaped quick connecting couplings. The «Zaslon» series oil boom section length is of 10-30 m. The «Zaslon» series oil booms are effective at currents up to 1,5 m/s. Storage and operation ambient temperature recommended for «Zaslon» series oil booms should be within the range from -30°С to + 60°С.
Recommended range of application of the «Zaslon» series oil booms:
- containment of oil spills at rivers, lakes and their port water areas,
- for permanent installation barriers nearby industrial facilities (oil terminals, oil-field equipment, main underwater oil pipeline passages etc.).
Properties
| Modification |
Total Height, mm |
Freeboard, mm |
Draft, mm |
Weight of linear meter inclusive section clamps, kg |
| “Zaslon – 30” (010101) | 300 | 100 | 200 | 2,5 |
| “Zaslon – 50” (010201) | 500 | 200 | 300 | 5 |
| “Zaslon – 50P”* (010102) | 500 | 180 | 320 | 4,0 |
| “Zaslon – 70” (010201) | 700 | 300 | 400 | 5,5 |
| “Zaslon – 70P”* (010202) | 700 | 280 | 420 | 4,5 |
| “Zaslon – 90” (010301) | 900 | 400 | 500 | 7,5 |
| “Zaslon – 90P”* (010302) | 900 | 350 | 550 | 5,0 |
| “Zaslon – 110” (010401) | 1100 | 450 | 650 | 9,0 |
| “Zaslon –110P”* (010402) | 1100 | 400 | 700 | 5,5 |
| “Zaslon – 120” (010501) | 1200 | 500 | 700 | 10,0 |
| “Zaslon – 120P”* (010502) | 1200 | 450 | 740 | 6,5 |
| “Zaslon – 130” (010601) | 1300 | 550 | 750 | 11,0 |
| Modification |
Transportation volume, m3/100 m |
Maximum tensile strength (at least, kg) |
Two tension lines | |
|
Top (steel rope), mm |
Bottom (steel galvanized chain), mm |
|||
| “Zaslon – 30” | 1,5 | 2000 | – | 8 |
| “Zaslon – 50” | 4,0 | 3000 | 6-7 | 9 |
| “Zaslon – 50Р”* | 2,5 | 1700 | – | 9 |
| “Zaslon – 70” | 6,5 | 3000 | 6-77 | 9 |
| “Zaslon – 70Р”* | 4,0 | 2500 | – | 10 |
| “Zaslon – 90” | 15,0 | 4000 | 7-8 | 10 |
| “Zaslon – 90Р”* | 4,5 | 2500 | – | 10 |
| “Zaslon –110” | 20,0 | 4000 | 8-9 | 10 |
| “Zaslon –110Р”* | 6,0 | 2500 | – | 10 |
| “Zaslon – 120” | 20,0 | 4000 | 8-10 | 10 |
| “Zaslon – 120Р”* | 5,5 | 2500 | – | 10-11 |
| “Zaslon – 130” | 20,0 | 4000 | 8-10 | 11 |
