Oil Skimmer “Technoskim-1”
Oil Recovery Equipment

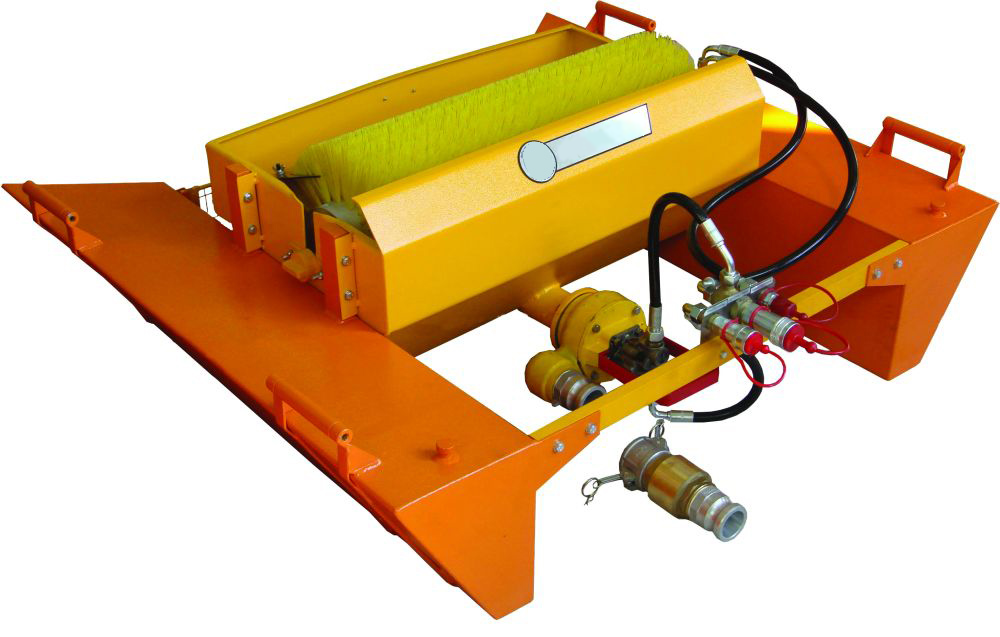

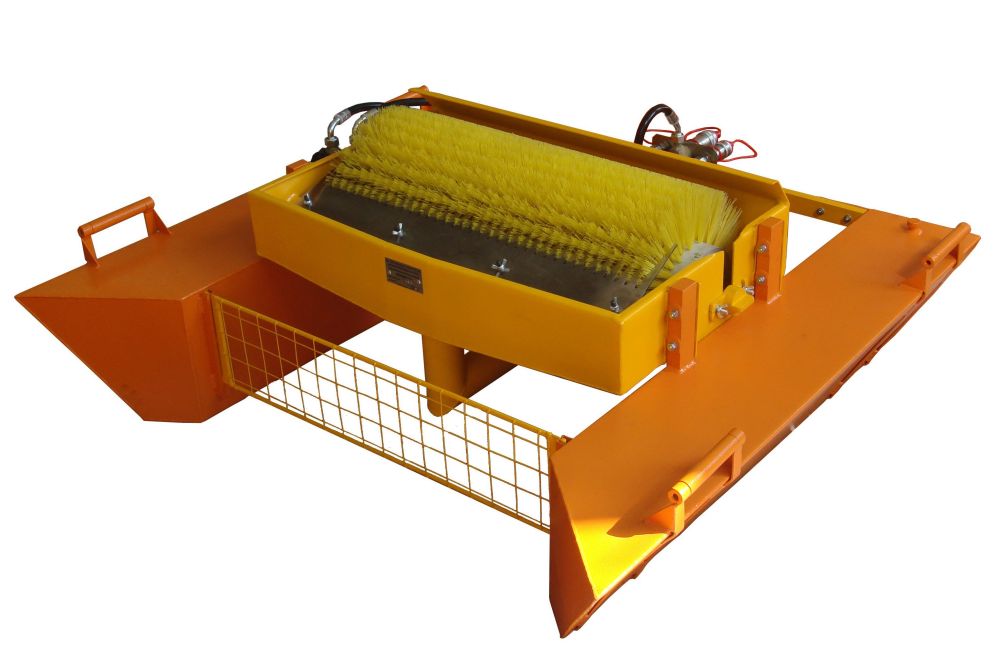

Skimmer head of “Technoskim-1” with interchangeable recovery units

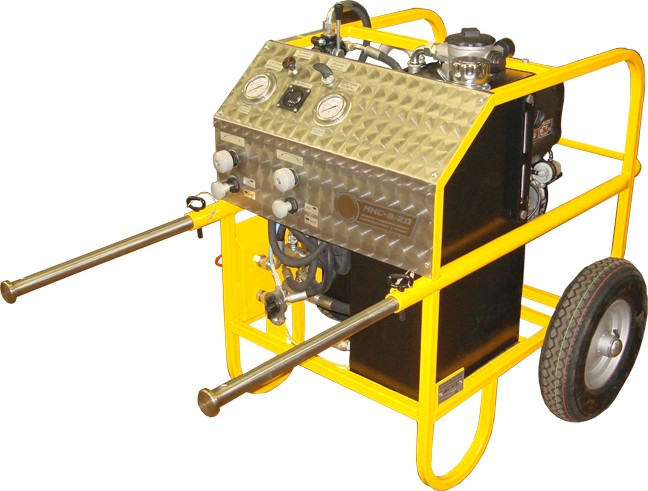

El.driven hydraulic powerpack
Description
Oil skimmer system “Technoskim-1” manufactured by the company «Ecoservice Oil» is designed for oil/petroleum products skimming from water surface (capacity – up to 15 m3/h).
Skimmer system «Technoskim-1» allows to use interchangeable oil recovery cartridges of oil/brush-, drum- or disk-type. All cartridges are made of polypropylene.
Optimal choice of the skimmer intake unit provides the most effective skimming of oil/petroleum products of variable viscosity.
The skimmer capacity varies according to the gathered oil/petroleum products viscosity and the type of applying intake unit. The maximum skimmer capacity for average viscous oils is reached when brush-type of intake unit applying.
For some operations including pumping oil from the reservoir it is possible to use dischargeable pump that can work without skimmer floating head unit .
Ranges of application of the oil-skimming device: efficient recovery of oil contained slick formed after accidents on river areas, lake areas and at their port waters (on-loading terminals, oil-field equipment, main underwater oil pipeline passages etc.)
Skimmer system «Technoskim-1» allows to use interchangeable oil recovery cartridges of oil/brush-, drum- or disk-type. All cartridges are made of polypropylene.
Optimal choice of the skimmer intake unit provides the most effective skimming of oil/petroleum products of variable viscosity.
The skimmer capacity varies according to the gathered oil/petroleum products viscosity and the type of applying intake unit. The maximum skimmer capacity for average viscous oils is reached when brush-type of intake unit applying.
For some operations including pumping oil from the reservoir it is possible to use dischargeable pump that can work without skimmer floating head unit .
Ranges of application of the oil-skimming device: efficient recovery of oil contained slick formed after accidents on river areas, lake areas and at their port waters (on-loading terminals, oil-field equipment, main underwater oil pipeline passages etc.)
Equipment
- Skimmer floating head unit with built-in hydraulic motor;
- Plug in hydraulic centrifugal pump (mounted on the oil-recovery head unit);
- Brush-type intake unit (changeable);
- Drum-type intake unit (changeable);
- Disk-type intake unit (changeable);
- Hydraulic power unit;
- Set of unloading hoses;
- Set of hydraulic hoses;
- Set of spares.
Properties
| Description | Ratings |
|---|---|
| Oil skimmer capacity, m3/h |
Up to 15 |
| Water maximum content in gathered oil, less then |
5 % |
| Type of the skimmer intake unit |
Brush, drum, disks |
| Quantity of oil skimmer head intake units, pcs |
1 |
| Intake unit speed, rpm |
5-100 |
| Intake unit drive |
hydraulic |
| Type of discharge pump |
hydraulic |
| Overall dimensions of skimmer floating head unit, mm |
1350 X 1380 X 520 |
| Weight of skimmer floating head unit, kg |
50 |
| Hydraulic power unit capacity, kW |
7,4-8,1 |
| Power unit type |
Diesel, petroleum or electric engine |
| Power unit weight, kg |
125-145 |
