Oil Skimmer “Technoskim-2”
Oil Recovery Equipment

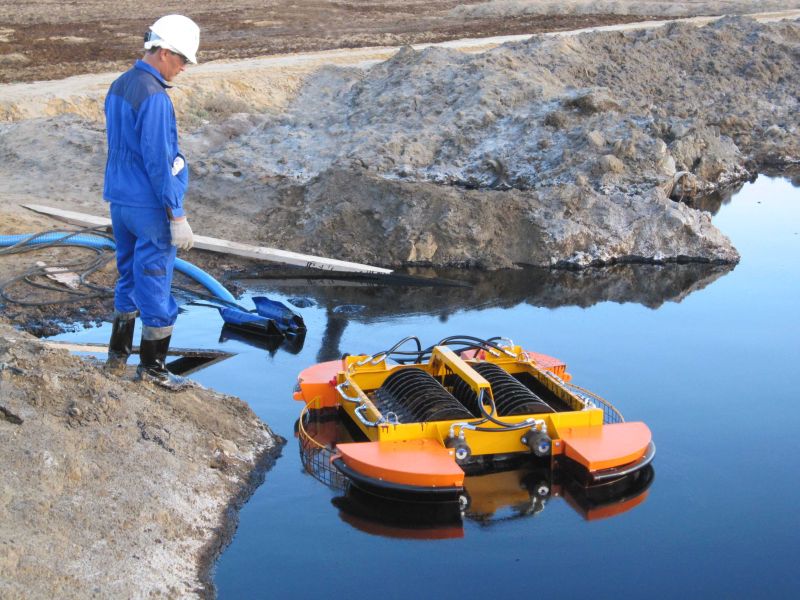

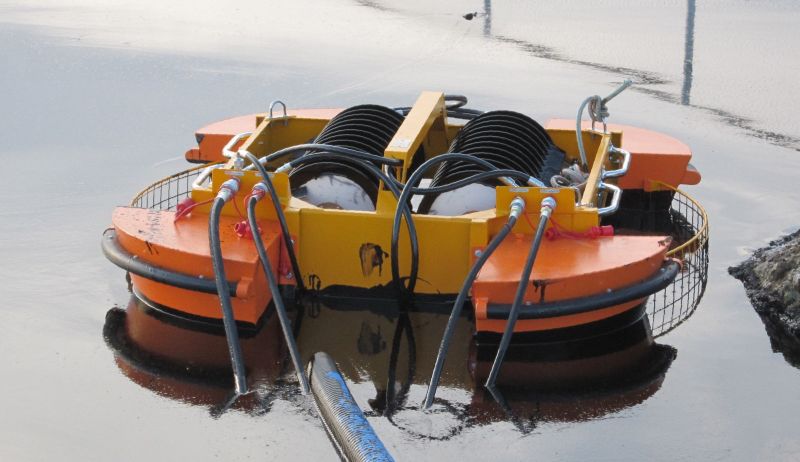

“Technoskim-2” with disk oil recovery units in operation

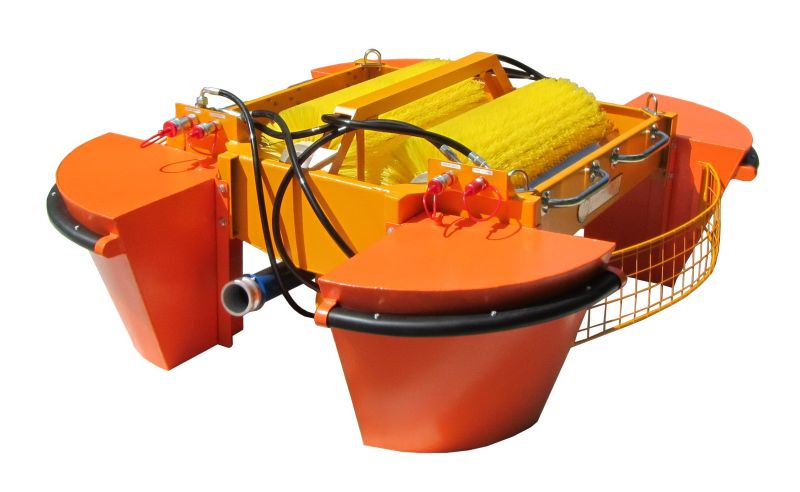

“Technoskim-2” with brush oil recovery units

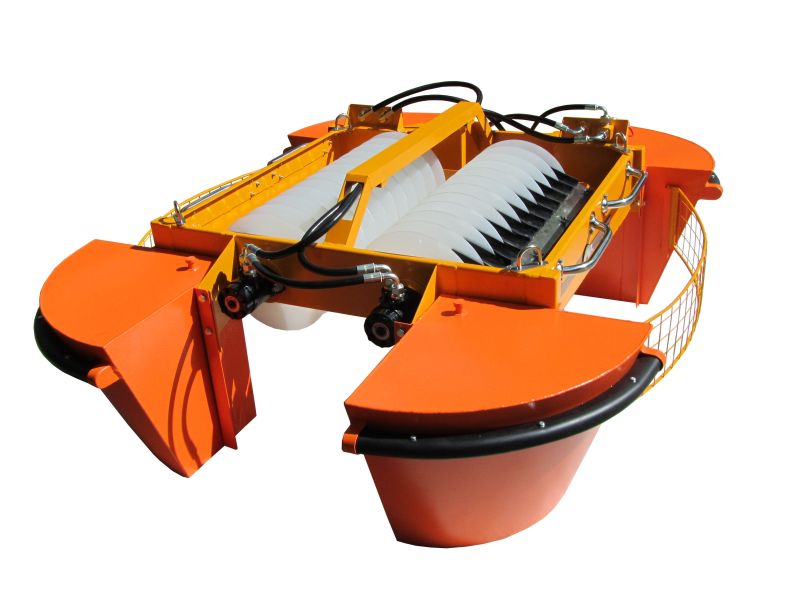

Skimmer head of “Technoskim-2” with disk oil recovery units
Skimmer head of “Technoskim-2” with disk oil recovery units units
Description
Oil skimmer system “Technoskim-2” manufactured by the company «Ecoservice Oil» is designed for oil/petroleum products skimming from water surface (capacity – up to 30 m3/h).
Skimmer system «Technoskim-2» allows to use interchangeable oil recovery cartridges of oil/brush-, drum- or disk-type. All cartridges are made of polypropylene.
Optimal choice of the skimmer intake unit provides the most effective skimming of oil/petroleum products of variable viscosity.
The skimmer capacity varies according to the gathered oil/petroleum products viscosity and the type of applying intake unit. The maximum skimmer capacity for average viscous oils is reached with catridges of brush-type.
For some operations including pumping oil from the reservoir it is possible to use dischargeable pump that can work without skimmer floating head unit.
Skimmer system «Technoskim-2» allows to use interchangeable oil recovery cartridges of oil/brush-, drum- or disk-type. All cartridges are made of polypropylene.
Optimal choice of the skimmer intake unit provides the most effective skimming of oil/petroleum products of variable viscosity.
The skimmer capacity varies according to the gathered oil/petroleum products viscosity and the type of applying intake unit. The maximum skimmer capacity for average viscous oils is reached with catridges of brush-type.
For some operations including pumping oil from the reservoir it is possible to use dischargeable pump that can work without skimmer floating head unit.
Equipment
- Skimmer floating head unit with built-in hydraulic motors;
- Plug in hydraulic centrifugal pump (mounted on the oil-recovery head unit);
- Brush-type intake units (changeable);
- Drum-type intake units (changeable);
- Disk-type intake units (changeable);

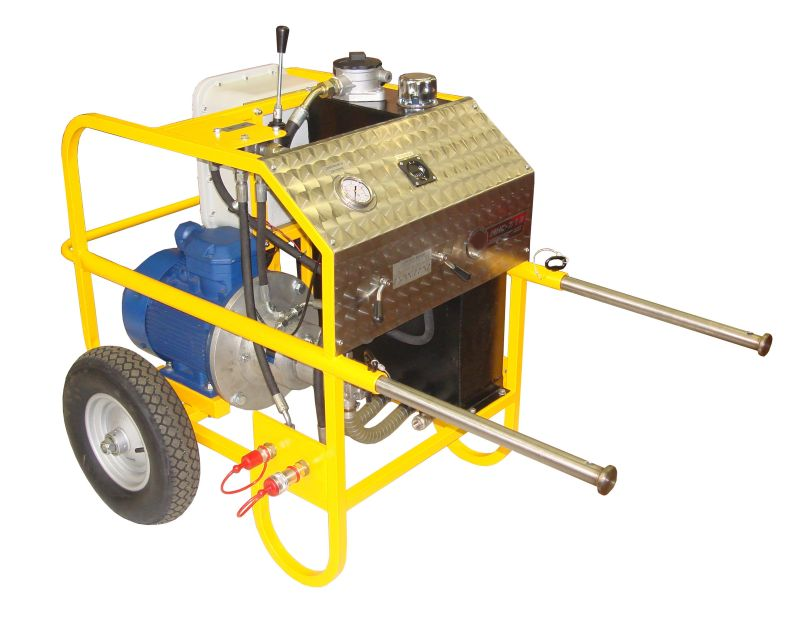

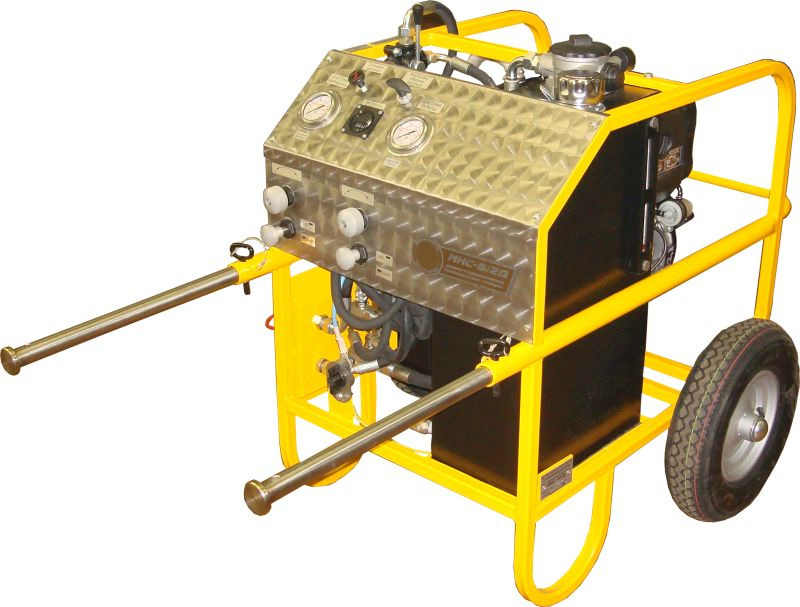

- Hydraulic power unit;
- Set of unloading hoses;
- Set of hydraulic hoses;
- Set of spares.
Properties
| Description | Ratings |
|---|---|
| Oil skimmer capacity, m3/h |
Up to 30 |
| Water maximum content in gathered oil, less then |
5 % |
| Type of the skimmer intake unit |
Brush, drum, disks |
| Quantity of oil skimmer head intake units, pcs |
2 |
| Intake unit speed, rpm |
5-100 |
| Intake unit drive |
hydraulic |
| Type of discharge pump |
hydraulic |
| Overall dimensions of skimmer floating head unit, mm |
1975 X 1640 X 670 |
| Weight of skimmer floating head unit, kg |
not more than 93,5 |
| Hydraulic power unit capacity, kW |
10 |
| Power unit type |
Diesel, petroleum |
| Power unit weight, kg |
not more than 150 |
