Oil Skimmer “Technoskim-3”
Oil Recovery Equipment

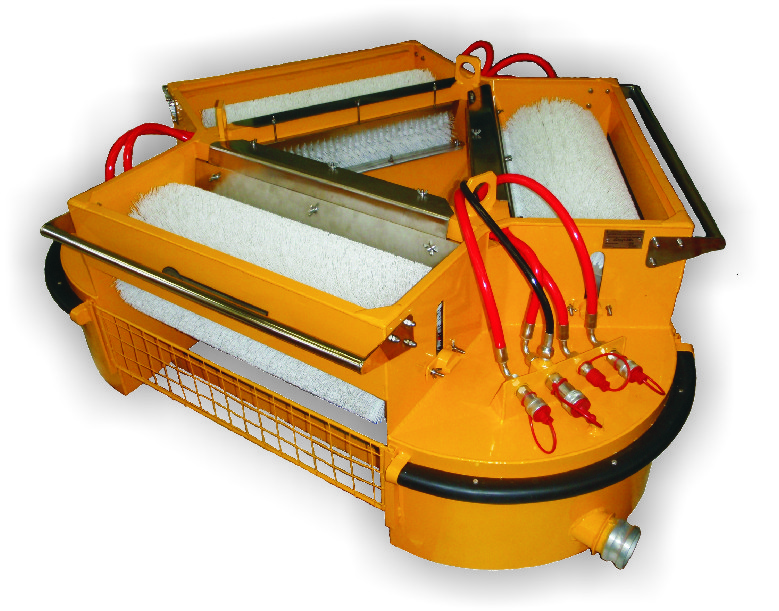

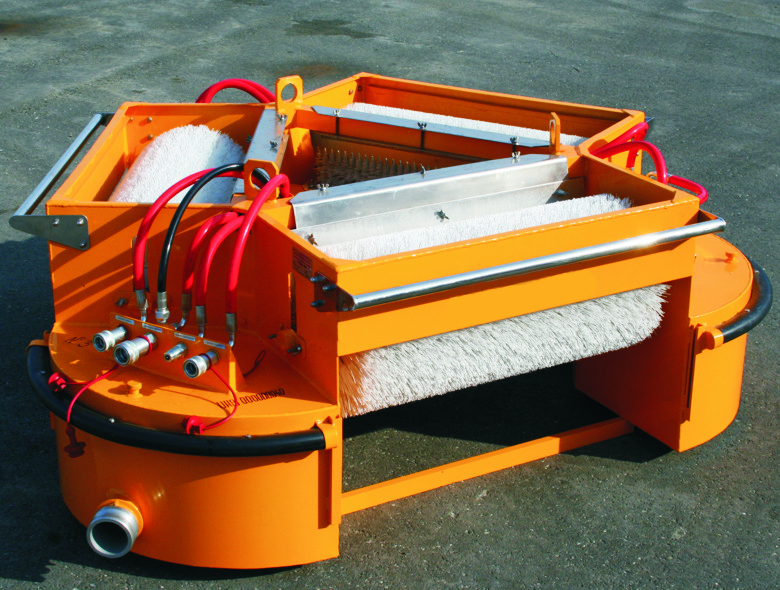

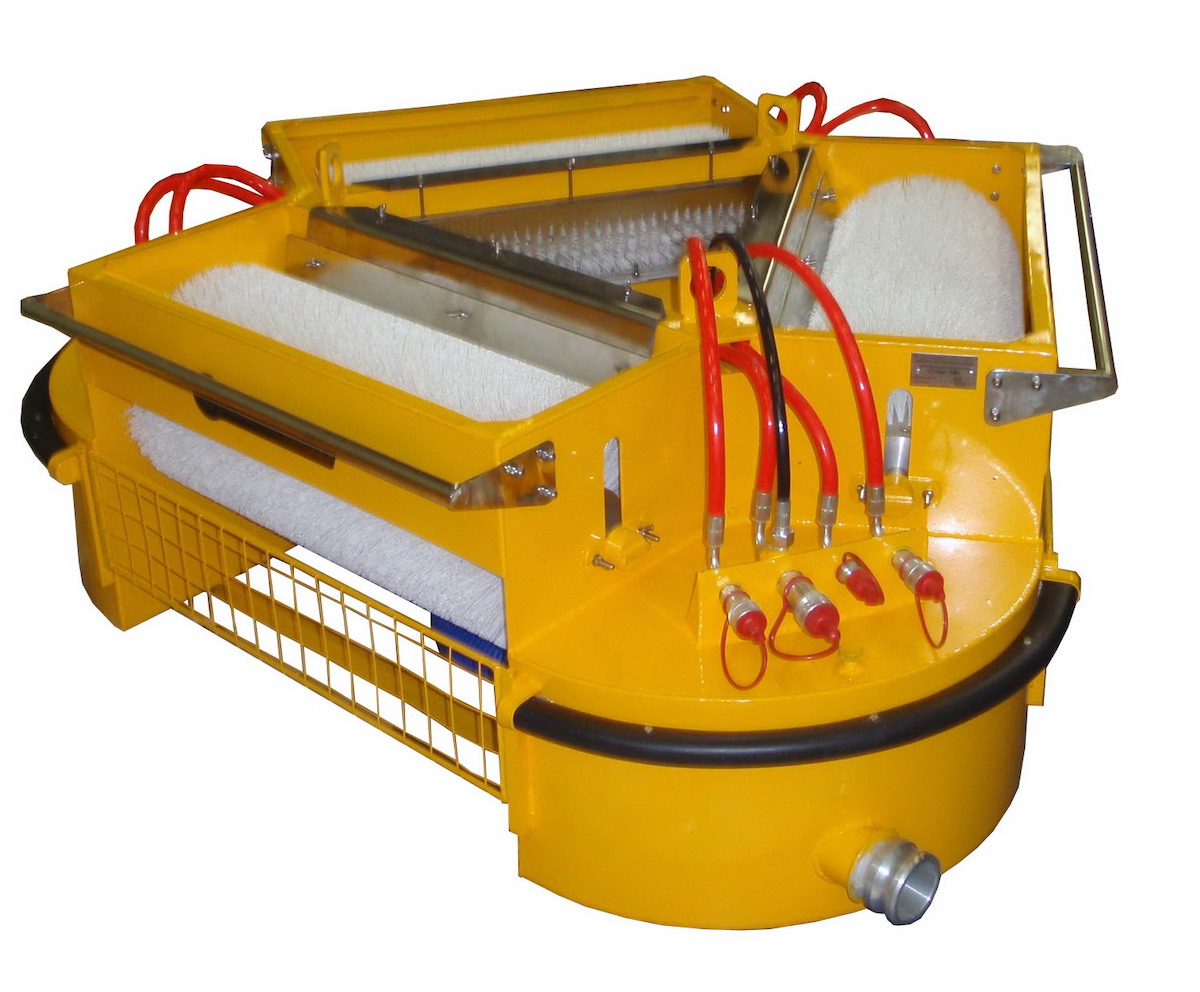

“Technoskim-3” skimmer head with brush oil recovery units
Description
Oil skimmer system “Technoskim-3” manufactured by the company «Ecoservice Oil» is designed for oil/petroleum products skimming from water surface (capacity – up to 45 m3/h).
Oil skimmer system “Technoskim-3” allows to use oil recovery cartriges of brush-, drumor
disk-type. All cartriges are made of polypropylene.
Optimal choice of the skimmer cartridges provides the most effective oil recovery of various viscosity.
The skimmer capacity varies according to the gathered oil/petroleum products viscosity and the type of applying intake unit. The maximum skimmer capacity for average viscous oils is reached when brush-type with oil recovery cartridge.
For some operations including pumping oil from the reservoir it is possible to use dischargeable pump that can work without skimmer floating head unit.
Oil skimmer system “Technoskim-3” allows to use oil recovery cartriges of brush-, drumor
disk-type. All cartriges are made of polypropylene.
Optimal choice of the skimmer cartridges provides the most effective oil recovery of various viscosity.
The skimmer capacity varies according to the gathered oil/petroleum products viscosity and the type of applying intake unit. The maximum skimmer capacity for average viscous oils is reached when brush-type with oil recovery cartridge.
For some operations including pumping oil from the reservoir it is possible to use dischargeable pump that can work without skimmer floating head unit.
Equipment
- Skimmer floating head unit with built-in hydraulic motors;
- Plug in hydraulic centrifugal pump (mounted on the oil-recovery head unit);
- Brush-type intake units (changeable);
- Drum-type intake units (changeable);
- Disk-type intake units (changeable);

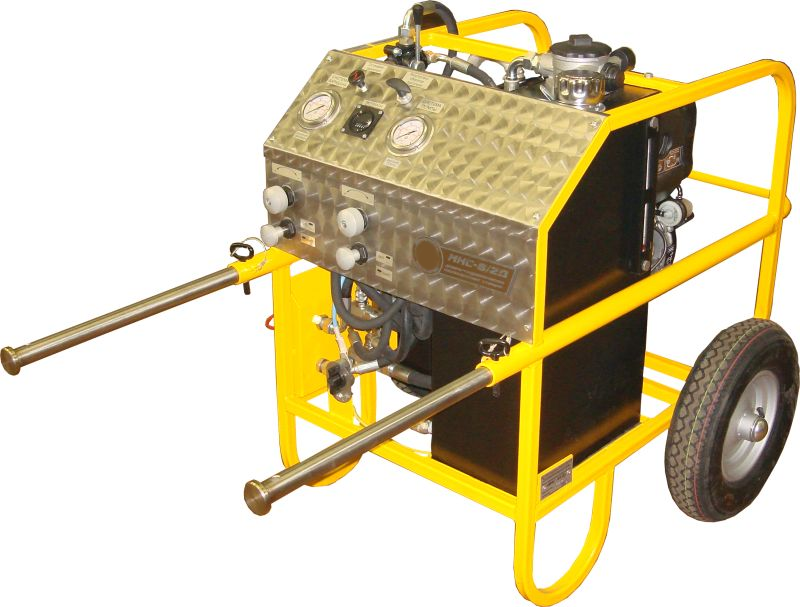

- Hydraulic power unit;
- Set of unloading hoses;
- Set of hydraulic hoses;
- Set of spares.
Properties
| Description | Rating |
|---|---|
| Oil skimmer capacity, m3/h |
up to 45 |
| Water maximum content in gathered oil, less then |
5 % |
| Type of the skimmer intake unit |
Brush, drum, disks |
| Quantity of oil skimmer head intake units, pcs |
3 |
| Intake unit speed, rpm |
5-100 |
| Intake unit drive |
hydraulic |
| Type of discharge pump |
hydraulic |
| Overall dimensions of skimmer floating head unit, mm |
1790 X 1765 X 720 |
| Weight of skimmer floating head unit, kg |
163 |
| Hydraulic power unit capacity, kW |
10 |
| Power unit type | Diesel, petroleum or electric engine |
| Power unit weight, kg |
not more than 200 |
