Oil Skimmer “Technoskim-М1-60”

Oil skimmer system «Technoskim-M1-60» manufactured by the company «Ecoservice Oil» is designed for oil recovery from water surface (capacity – up to 60 m³/h). Oil skimmer system «Technoskim- M1-60» allows to use interchangeable oil recovery cartridges of brush-, drum- or disk-type. All cartridges are made of polypropylene.
 Optimal choice of the skimmer cartridge provides the most effective oil recovery of
various viscosity. The skimmer capacity varies according to the recovered oil viscosity and the type ofused cartridge. The maximum skimmer capacity for medium viscous oils is reached with cartridges of brush-type. For some operations including pumping oil from the reservoir it is possible to usedischarge pump that can work without skimmer head.
 Range of application of the oil-skimming device: efficient recovery of oil contained slick formed after accidents on river areas, lake areas and at their port waters (on-loading terminals, oil-field equipment, main underwater oil pipeline passages etc.)

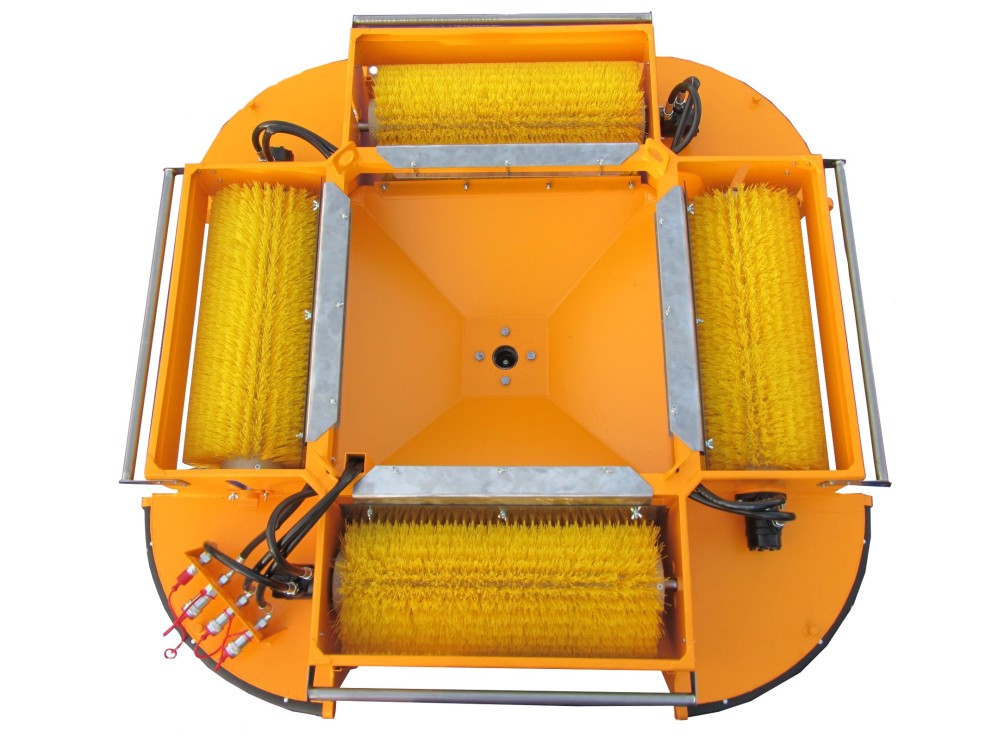

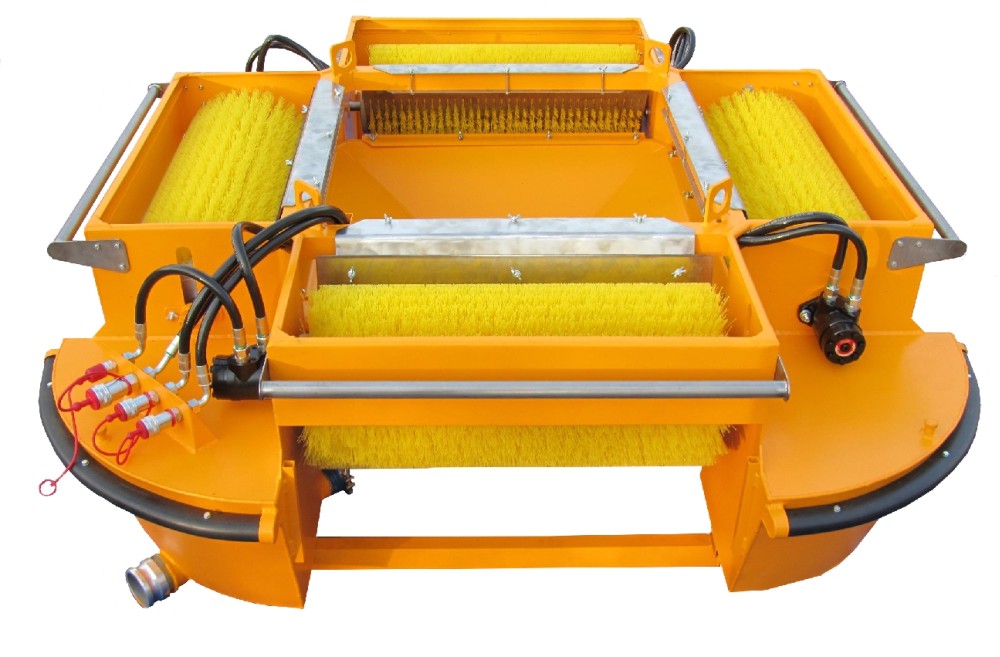

• Skimmer head with built-in hydraulic motors;
• Plug in hydraulic centrifugal pump (mounted on the oil-recovery headunit);
• Brush-type cartridge;
• Drum-type cartridge;
• Disk-type cartridge;

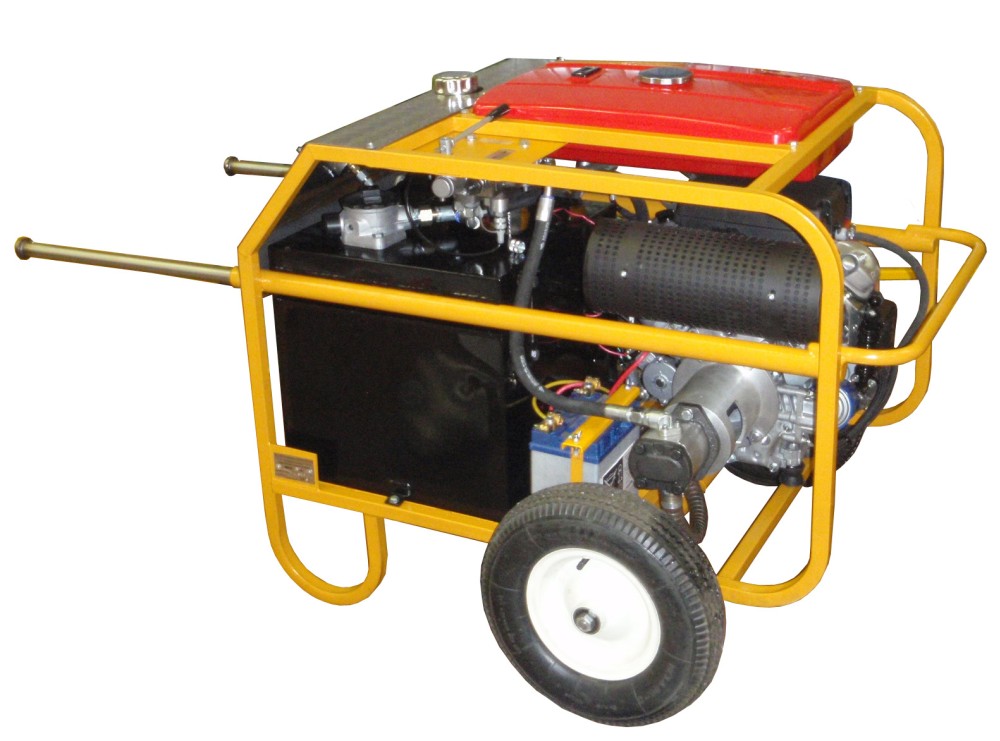

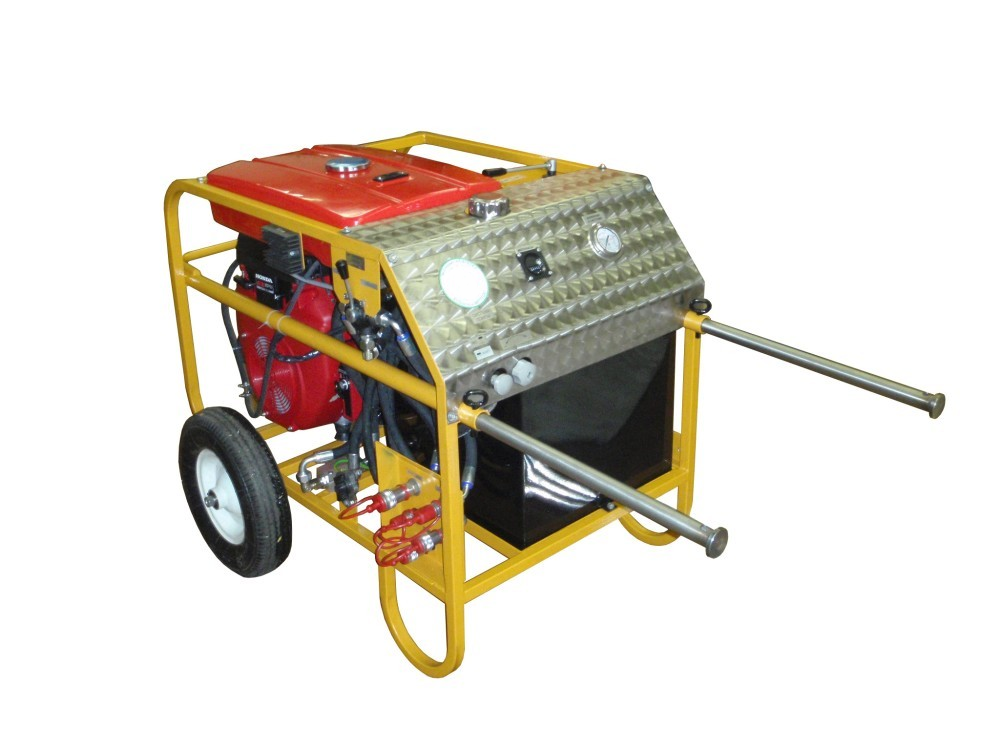

• Hydraulic power pack;
• Set of discharge hoses;
• Set of hydraulic hoses;
• Set of spares.

Description	Ratings
Oil skimmer capacity, m3/h	Up to 60
Type of the skimmer intake unit	Brush, drum, disks
Quantity of oil skimmer head intake units, pcs	4
Intake unit speed, rpm	5-100
Overall dimensions of skimmer floating head unit, mm	1965 X 1965 X 825
Weight of skimmer floating head unit, kg	163
Draft of skimmer floating head unit, mm	400
Intake unit speed, rpm	5 – 100
Hydraulic power unit capacity, kW	21
