“Unumok” oil-gathering device
Oil Recovery Equipment

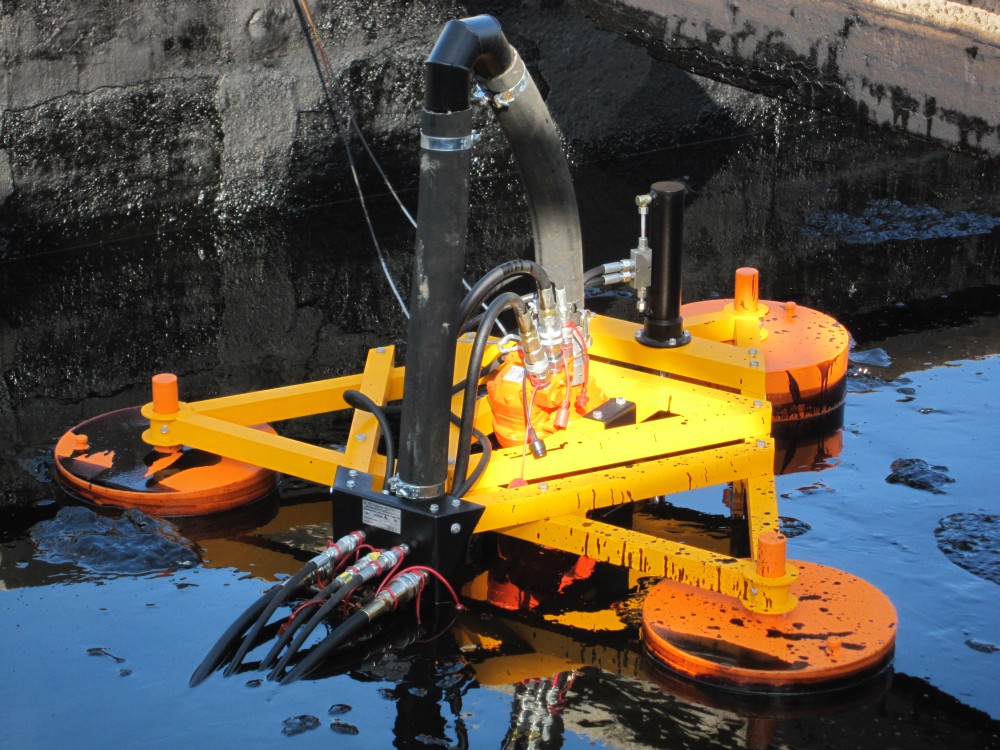

“Unumok” oil-gathering device

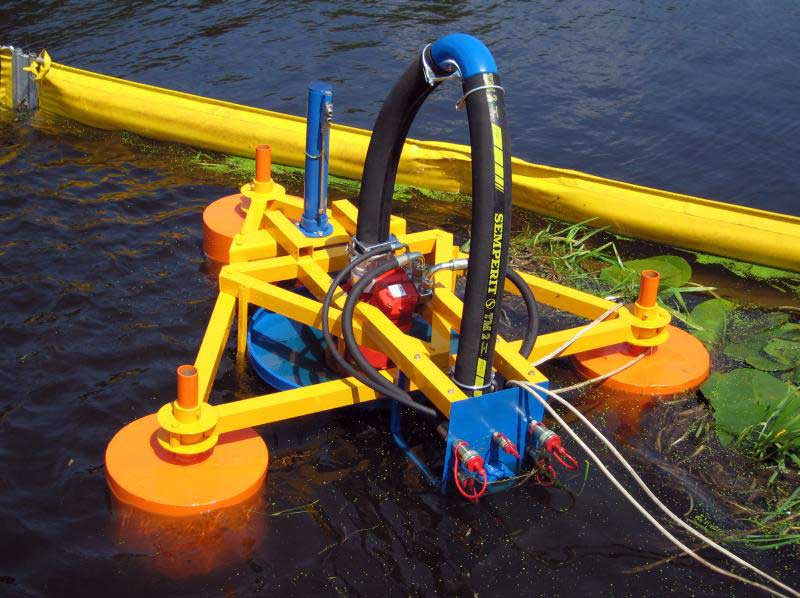

“Unumok” oil-gathering device

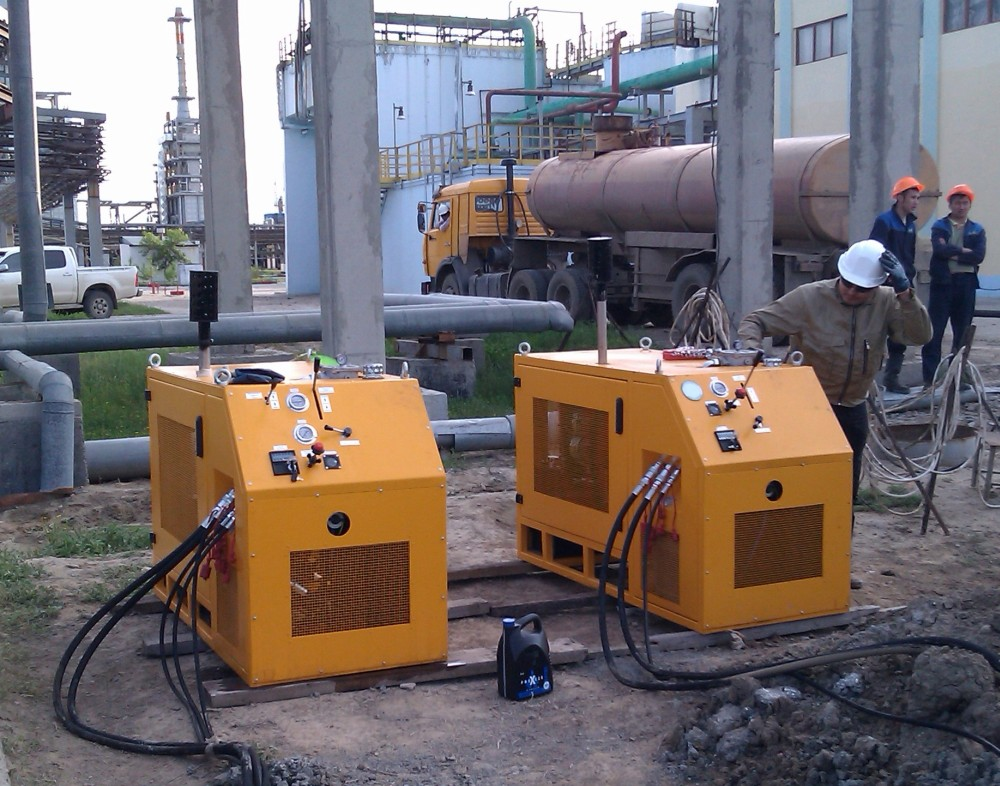

Diesel-hydraulic power unit
Description
“Ecoservice Oil” company offers a universal oil-gathering device “Unumok”, designed both for collecting oil from the water surface and for pumping oily bottom sediments.
The “Unumok” device is based on the submersible pump, which is designed for pumping high-viscosity liquids with a high content of mechanical impurities.
The head floating part of the Unumok oil gathering device is equipped with a special hydraulic cylinder, with the help of which it is possible to remotely (from the control panel of the power hydraulic unit) adjust the level of the drain threshold. Such an adjustment allows only the oil layer to be collected from the water surface and exclude water from entering the intake.
The “Unumok” design allows the inner pump to be removed from the floating head and used independently as a submersible pump.
The recommended field of application of the “Unumok” oil skimmer is the operational collection of spilled oil and oil products in case of emergency spills on rivers, lakes, water areas of oil terminals, elimination of sludge pits, pumping of oily bottom sediments from sedimentation ponds, etc.
The “Unumok” device is based on the submersible pump, which is designed for pumping high-viscosity liquids with a high content of mechanical impurities.
The head floating part of the Unumok oil gathering device is equipped with a special hydraulic cylinder, with the help of which it is possible to remotely (from the control panel of the power hydraulic unit) adjust the level of the drain threshold. Such an adjustment allows only the oil layer to be collected from the water surface and exclude water from entering the intake.
The “Unumok” design allows the inner pump to be removed from the floating head and used independently as a submersible pump.
The recommended field of application of the “Unumok” oil skimmer is the operational collection of spilled oil and oil products in case of emergency spills on rivers, lakes, water areas of oil terminals, elimination of sludge pits, pumping of oily bottom sediments from sedimentation ponds, etc.
Equipment
- The head floating part of the oil skimmer with a threshold intake device;
- Submersible pump;
- Diesel-hydraulic power unit;
- Unloading hose set;
- Set of hydraulic hoses;
- Protective cover for diesel-hydraulic power unit;
- Set of floats for hydraulic and discharge hoses;
- Spare parts;
- Transport packaging (plywood boxes).
Properties
|
Description |
Ratings |
| Oil skimmer intake type |
threshold |
| Oil skimmer performance, m3/h |
≤30 |
| Range of dynamic viscosity of the pumped substances, cSt |
from 0 to 106 |
| Unloading pump type |
hydraulic vertical screw pump |
| Dimensions of the head floating part, mm |
1800 х 1800 х 1400 |
| Maximum draft of the head, mm |
250 |
| Maximum immersion depth of the DESMI DOP-160 pump, mm |
10000 |
| Weight of the head floating part, kg |
95 |
| Diesel-hydraulic power plant power (driven from the “HATZ” diesel engine), kW |
27 |
| Diesel-hydraulic power plant weight, kg |
420 |
