Hydraulic reel (“BK series”) for sea oil booms
Reels for booms and sorbing material
Description

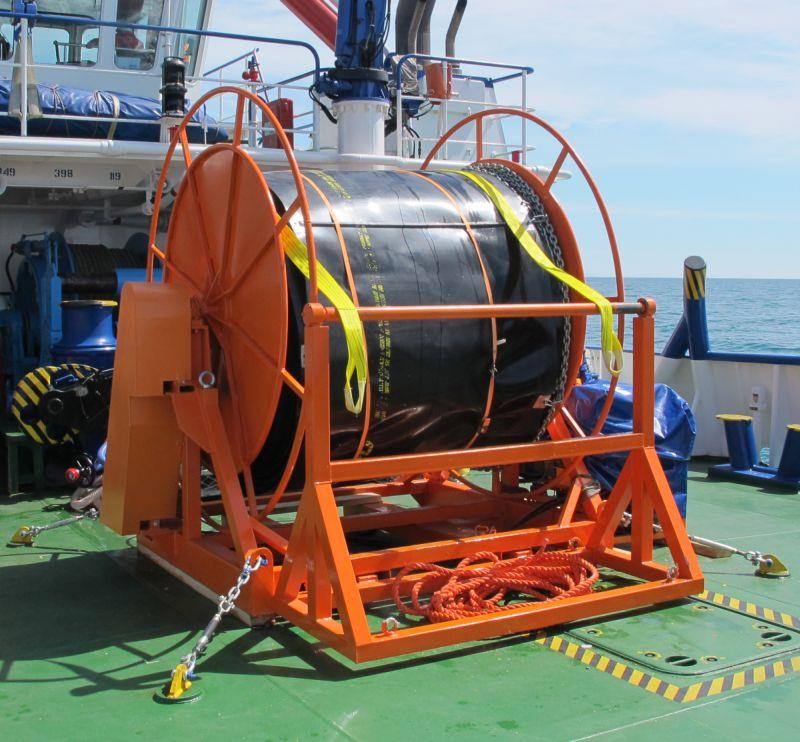

Hydraulic reel “BK” series is designed for the deployment and storage of different inflatable booms including sea booms “Zaslon-Sea” series.
Hydraulic reel “BK” series comes in two modifications – BK-1500 for the housing of the inflatable booms with the total height not more than 1500 mm; and reel BK-2000 for the housing of the inflatable booms with the total height not more than 2000 mm.
Capacity of both modifications of reels is up to 250 running meters of booms.
Hydraulic reel “BK” series comes in two modifications – BK-1500 for the housing of the inflatable booms with the total height not more than 1500 mm; and reel BK-2000 for the housing of the inflatable booms with the total height not more than 2000 mm.
Capacity of both modifications of reels is up to 250 running meters of booms.
Properties
|
Parameter |
Value |
|
|
BK-1500 (480101) |
BК-2000 (480102) |
|
| Speed of rotation, r/min | adjustable, up to 5 | adjustable, up o 5 |
| Length, mm | 2700 | 3100 |
| Width, mm | 1820 | 1820 |
| Height, mm | 2030 | 2030 |
| Weight (without booms), kg | 630 | 750 |
| Drum material | steel | steel |
| Frame material | steel | steel |
| Channels for the fork lifter | + | + |
| Slinging device | + | + |
| Backing roller for the booms | + | + |
| Hydraulic flow, l/min | 40 | 40 |
| Hydraulic pressure, MPa | 20 | 20 |
| Necessary power of the power pack, kW | Not less than 15,0 | Not less than 15,0 |
