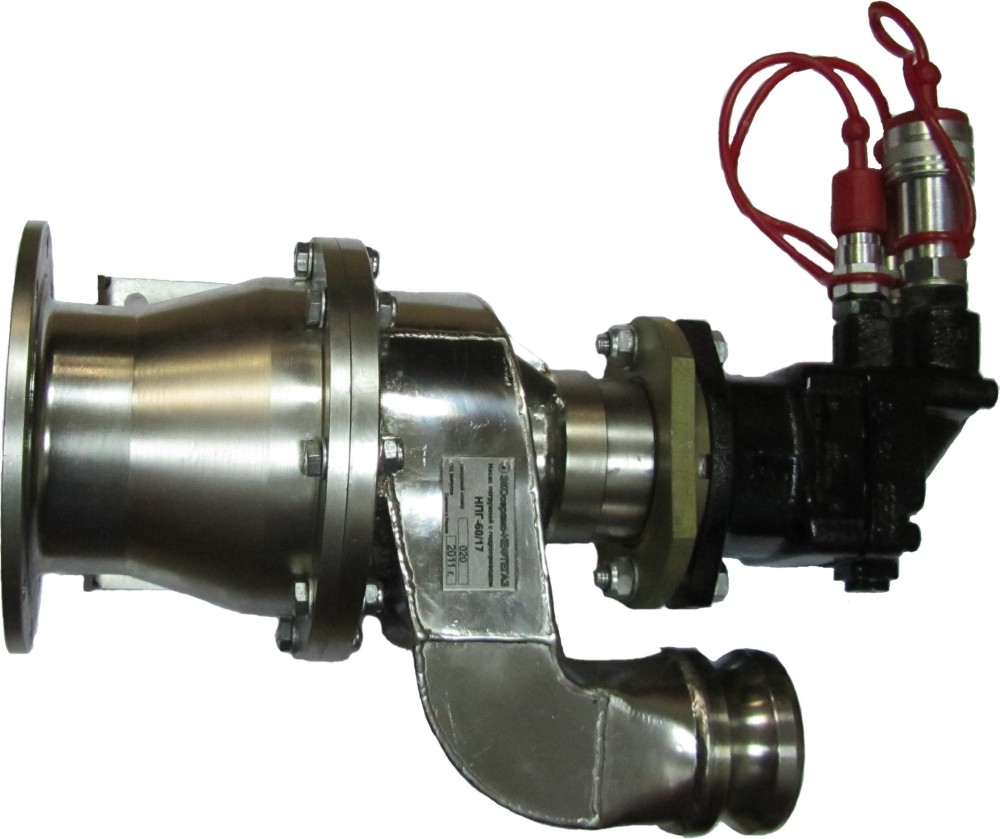

NPG-60/17 Pump
Screw Hydraulic Pumps
Description
Company «Ecoservice Oil» offers screw hydraulic pump NPG-60/17. Pumps are designed for different liquids, oil and oil products transferring and have high corrosion resistance to seawater.
Properties
| Description |
NPG- 60/17 |
|---|---|
| Nominal transfer capacity, m3/hour, (l/s), rpm |
60 (16,7) 3850 |
| Discharge head, m |
17 |
| Maximal feeding, (m3/hour),(l/sec) at lift height 5 m | 90 (25) |
| Acceptable suction height, m |
8 |
| Transferred liquid temperature C° |
0-60 |
| Maximal concentration of solid particles, % |
5 |
|
Solid particles maximal size, mm |
5 |
| Working power on maximal speed, kW |
6 |
| Speed of rotation, rpm |
300-3 850 |
| Dimensions (LxWxH), (mm) |
415 х 210 х 225 |
| Suction hose diameter, mm |
100 |
| Discharge hose diameter, (мм) |
65 |
| Weight of pump, (with hydraulic motor, without connectors) max., (kg) |
17,5 |
| Hydraulic demand: |
Axial piston motor |
| Displacement, sm³ |
5-6 |
| Max. working pressure in hydraulic system, atm |
350/210 |
| Max. speed of rotation, rpm |
4000 |
