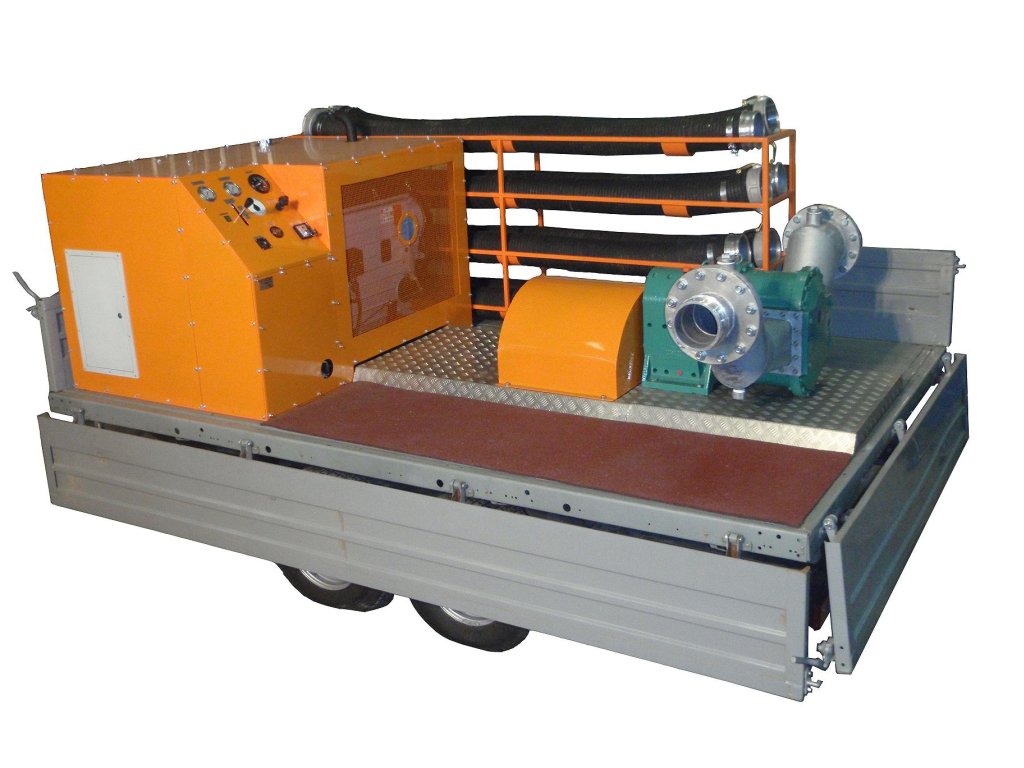

Portable Pump System
Portable Pump System
Description
This pump system is designedd on basis of high capacity rotary pump. The pump system is designed for fluids transfer of high and of low viscosity (from 1 mPа*s up to 106 mPa*s) containing lots of abrasive particles, like river water with big content of mud, oil products, oil sludge etc. This pump system can be sucessfully used in response to emergencies due to floodings.
Properties
| Description | Ratings |
|---|---|
| Type of the pump |
XLB4-JD-60 |
| Capacity, m3/h |
up to 275 |
| Maximum suction head, m |
8 |
| Maximum liquid lifting range, m |
40 |
| Solids handling up to, mm |
60 |
| Length, mm |
4900 |
| Breadth, mm |
2550 |
| Height, mm |
200 |
| Weigh, kg |
2000 |
| Engine, (type of engine) |
HATZ (diesel), 4-cyl. |
| Required power of the drive, kW |
60 |
