Multipurpose boats “Tactic”
Special Boats

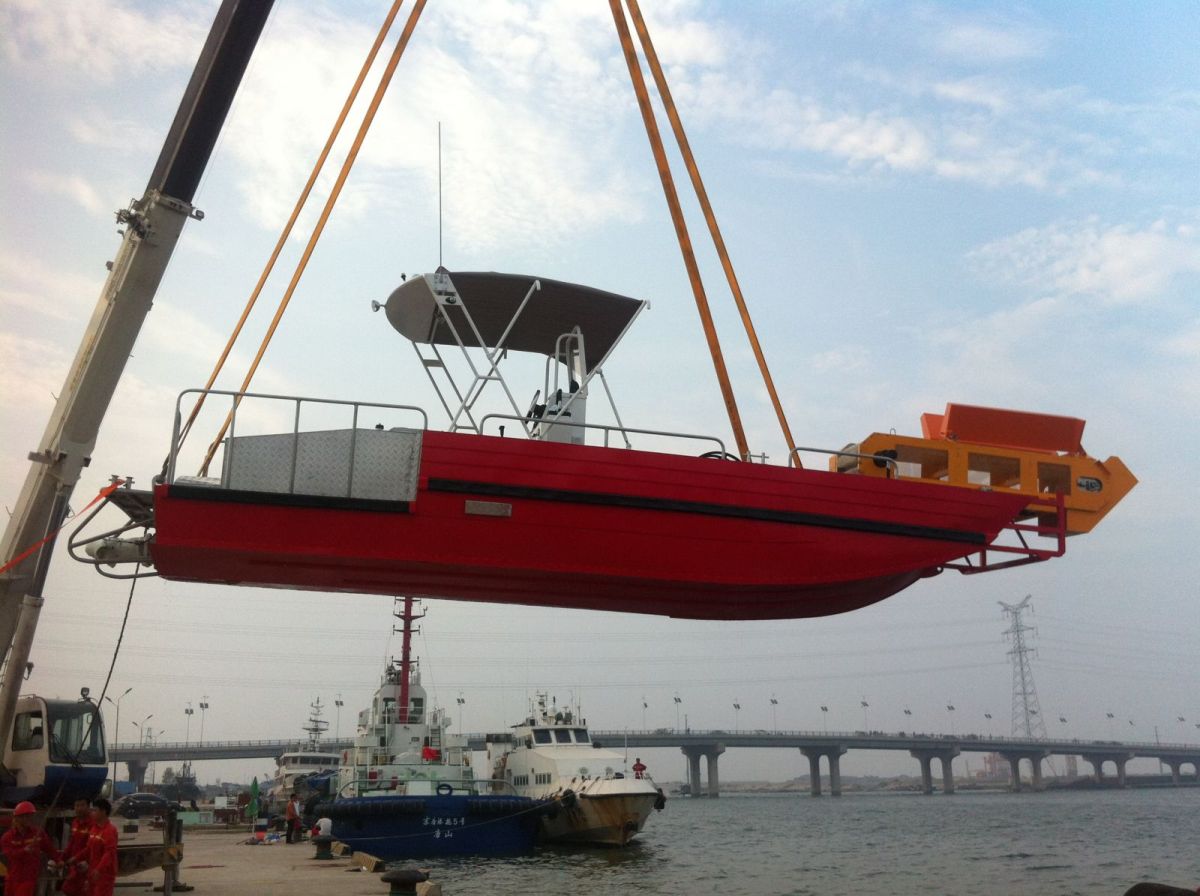

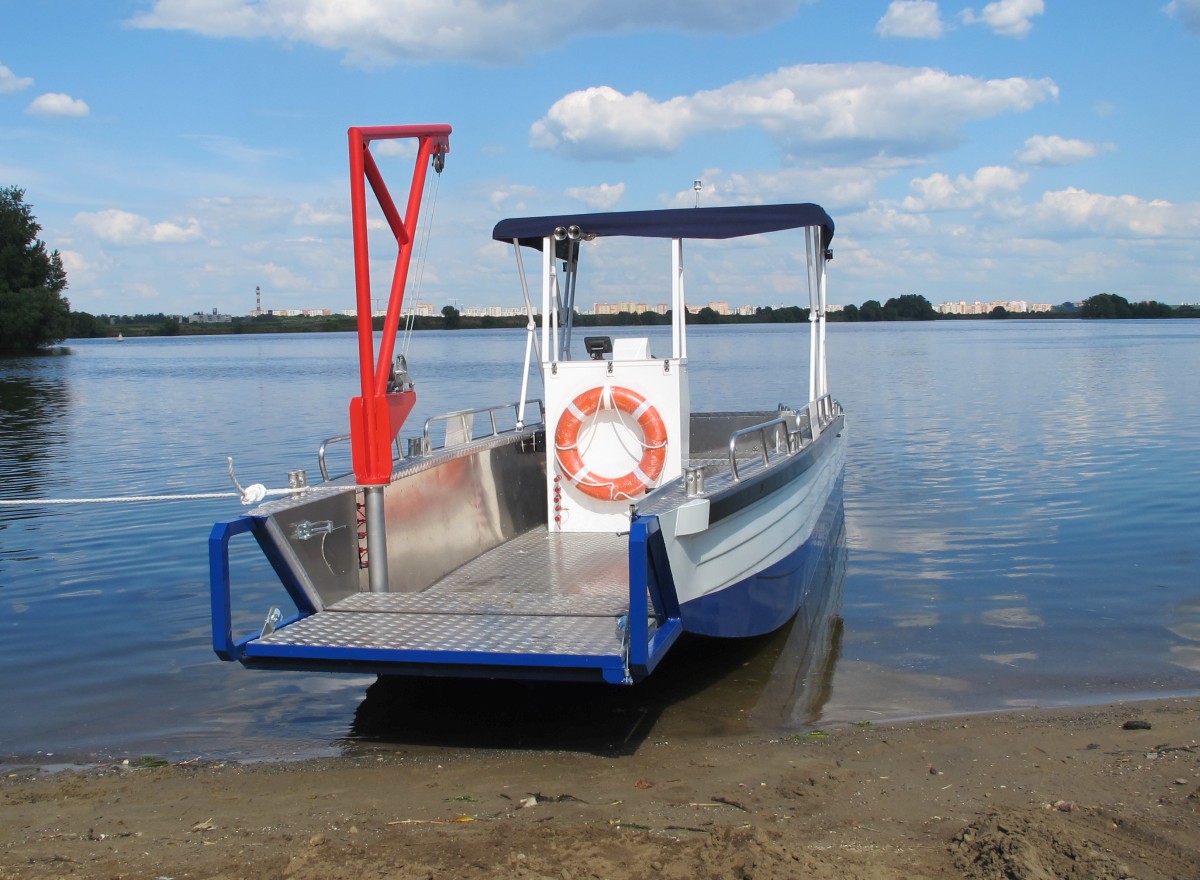

“Tactic-8500” Boat

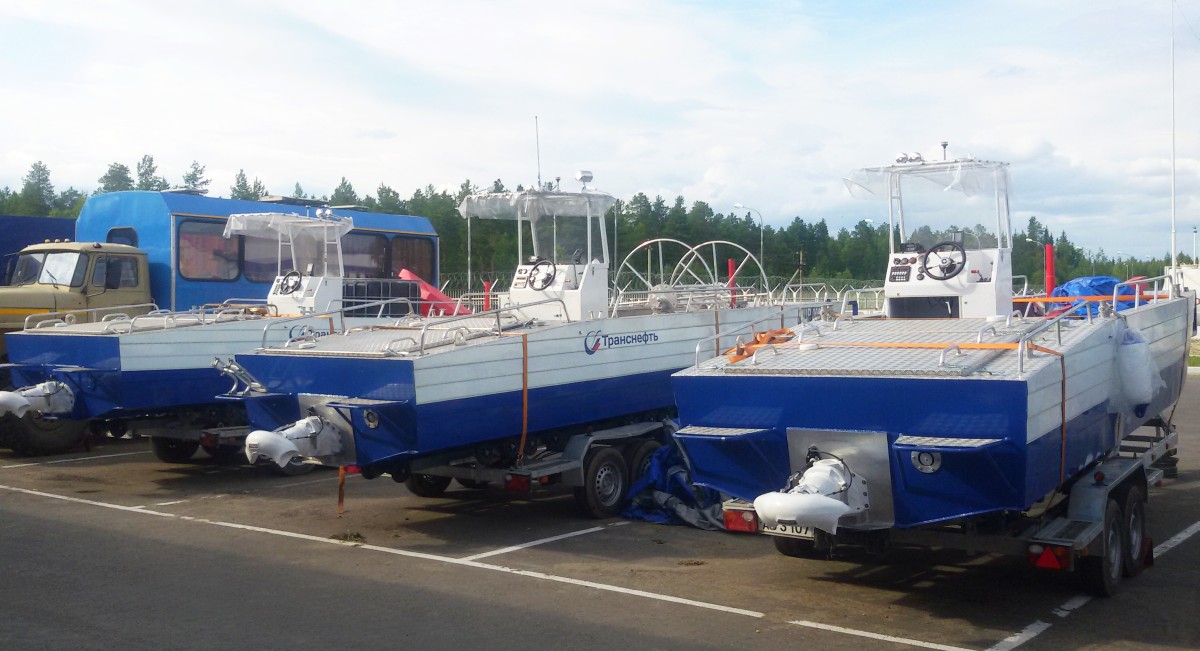

“Tactic-8500” Boat

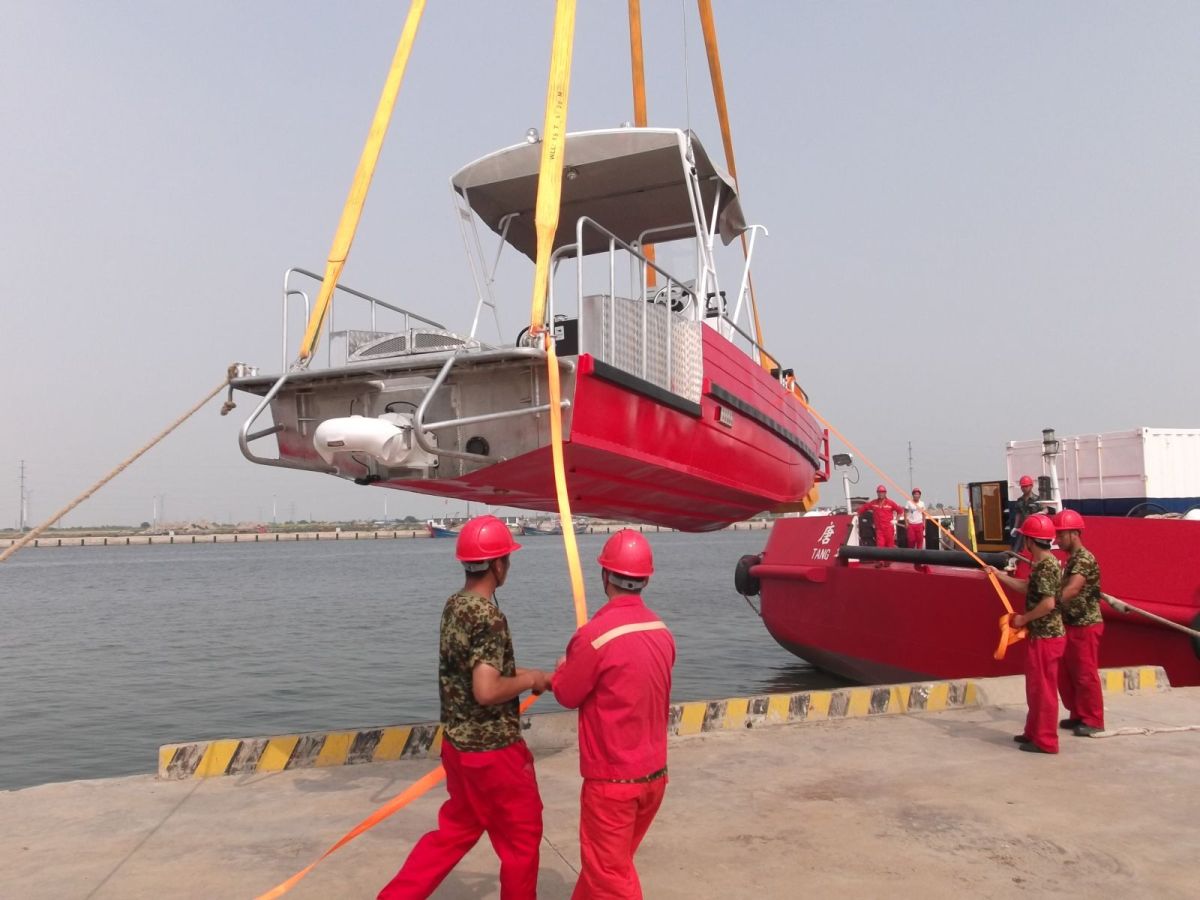

“Tactic-8500” Boat

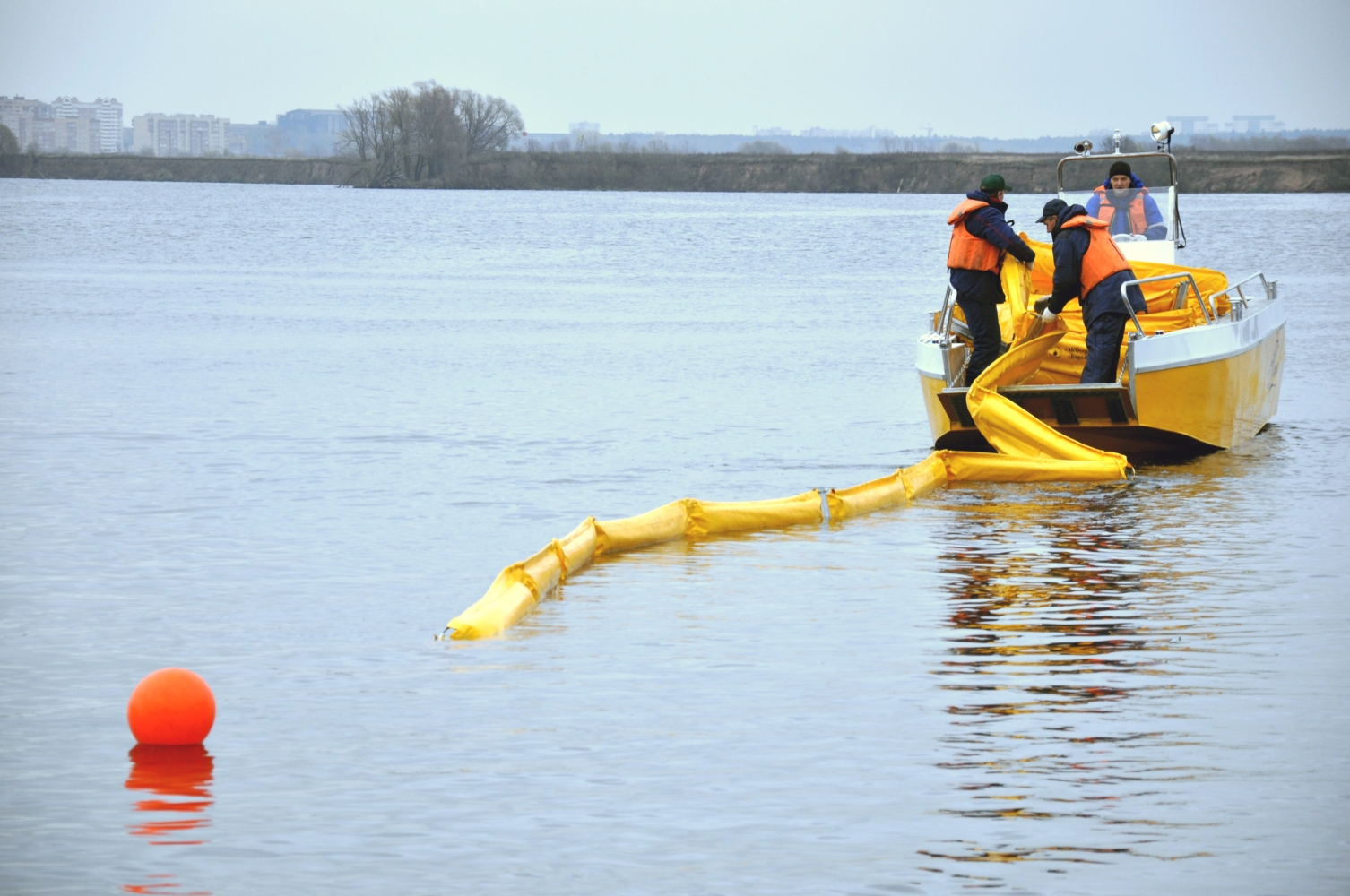

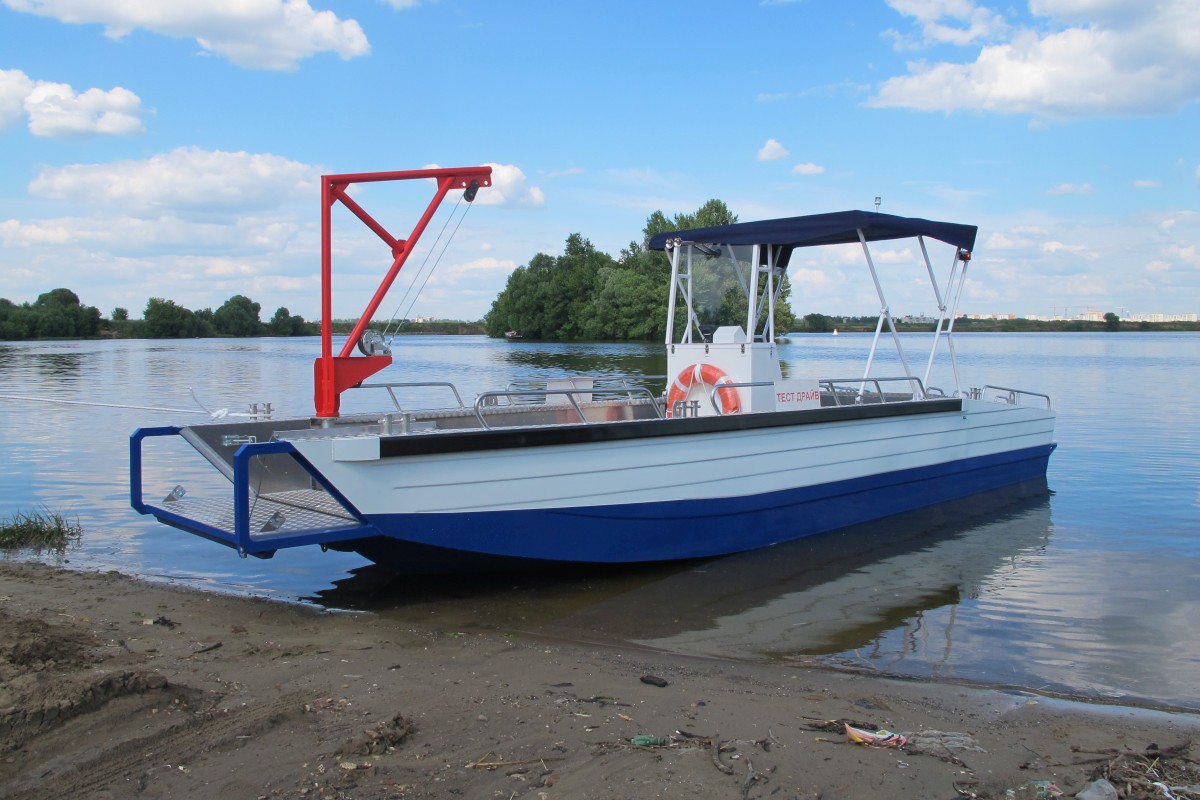

“Tactic-7500” Boat, oil boom setting
Description
The “Tactic” multipurpose boat is designed for:
• delivery of equipment and personnel to the point of the emergency recovery works
• deployment of oil booms
• oil recovery from water surface
The “Tactic” boat is designed for operation at rivers, lakes and port areas.

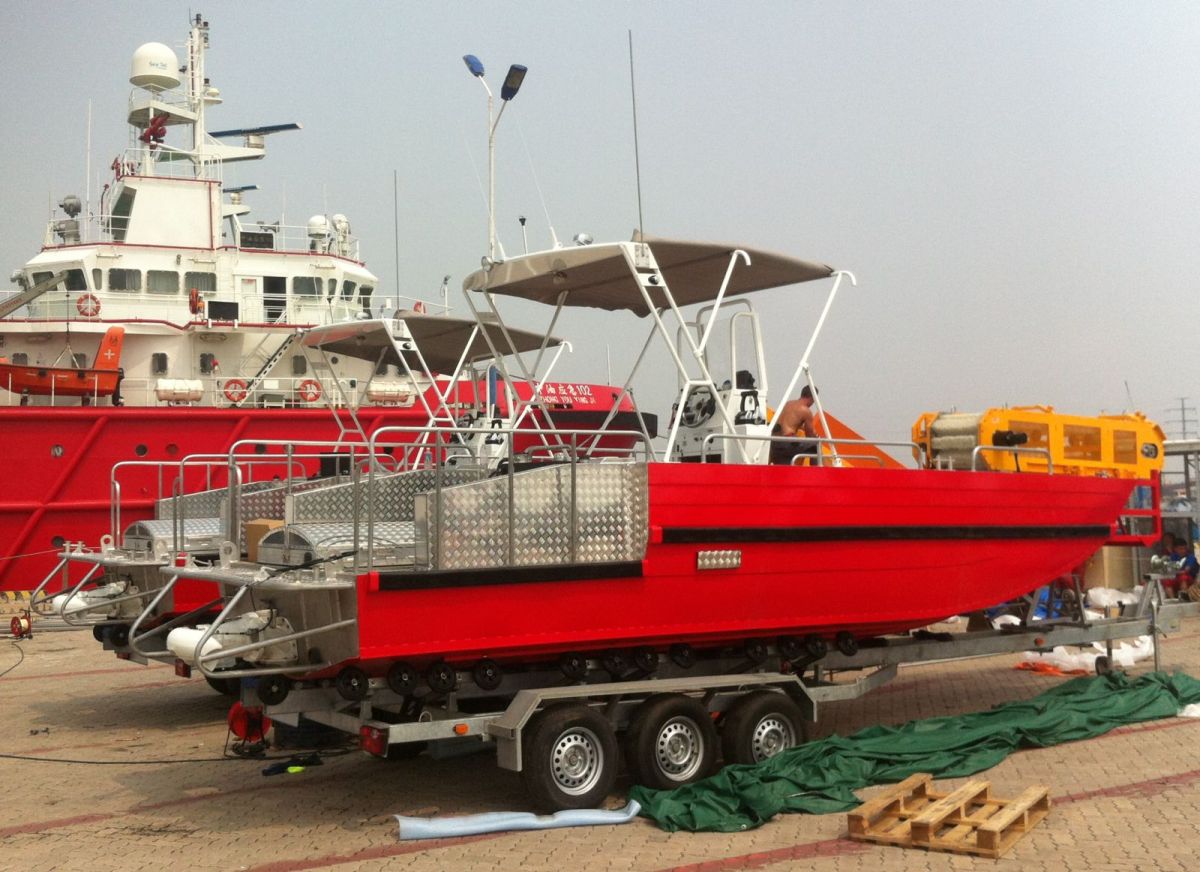

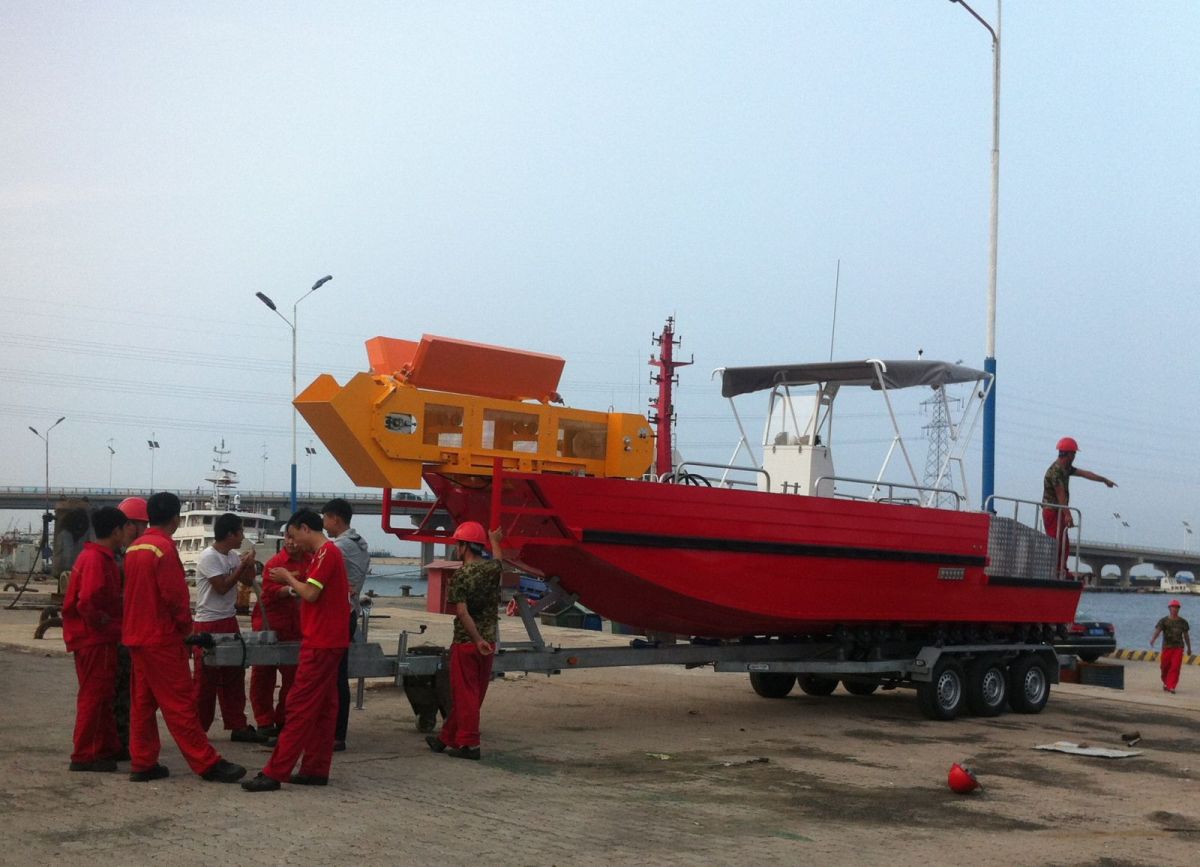

The boat can be delivered both by itself and by the special trailer (delivered together with the equipment).
The “Tactic” multipurpose boat hull is made of special aluminum alloy that provides lightness and durability of the whole structure. The hull is resistant to corrosion and influence of oil and petroleum products.
The “Tactic” boat is driven by the outboard engine and controlled by the steering mechanism.

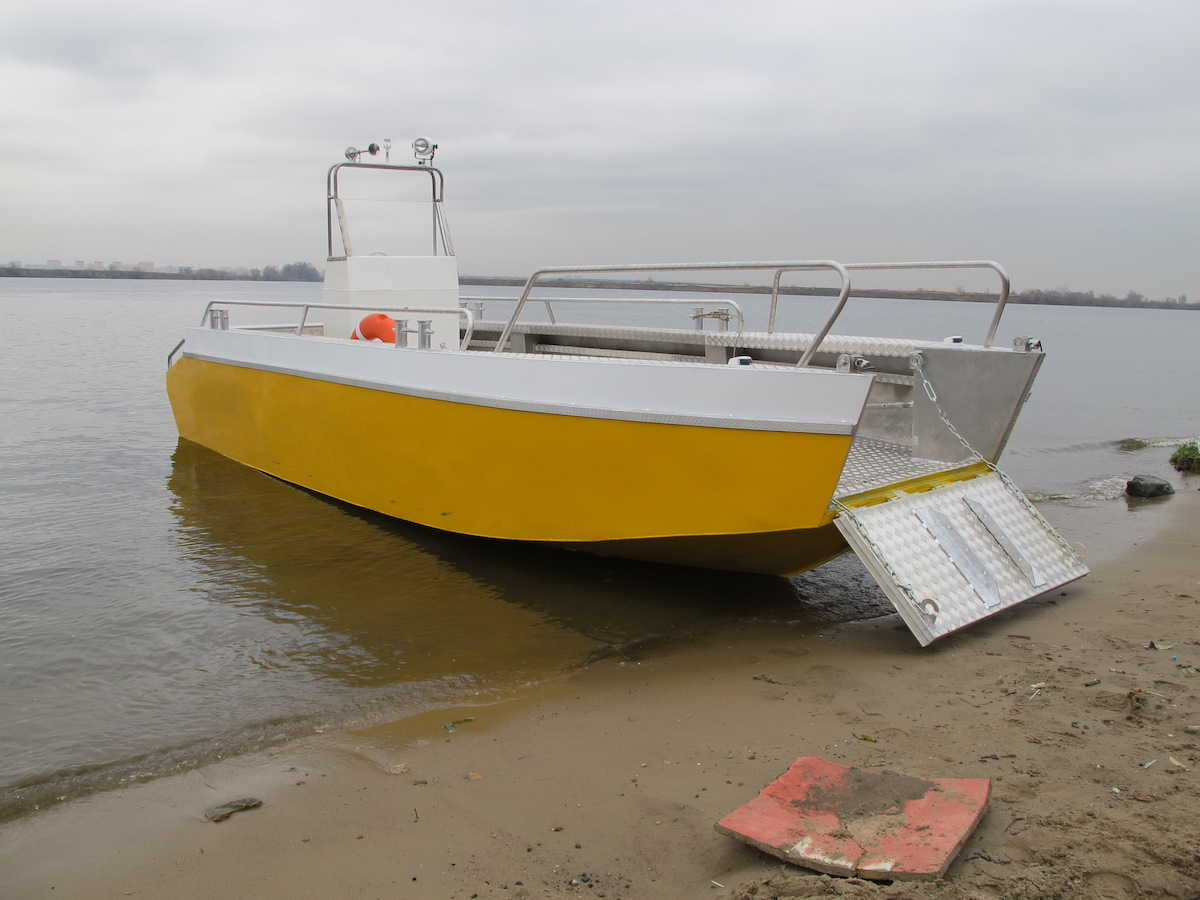

The “Tactic” boat fore part has folding ladder that is used for loading-unloading operations.

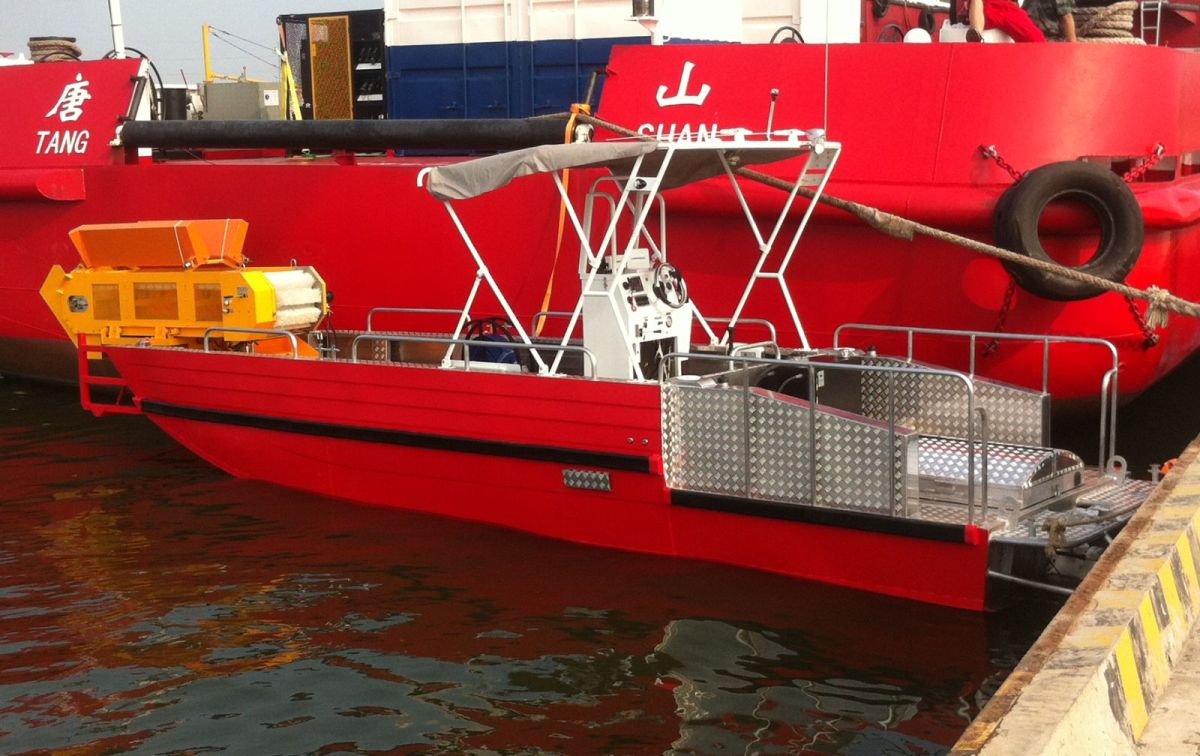

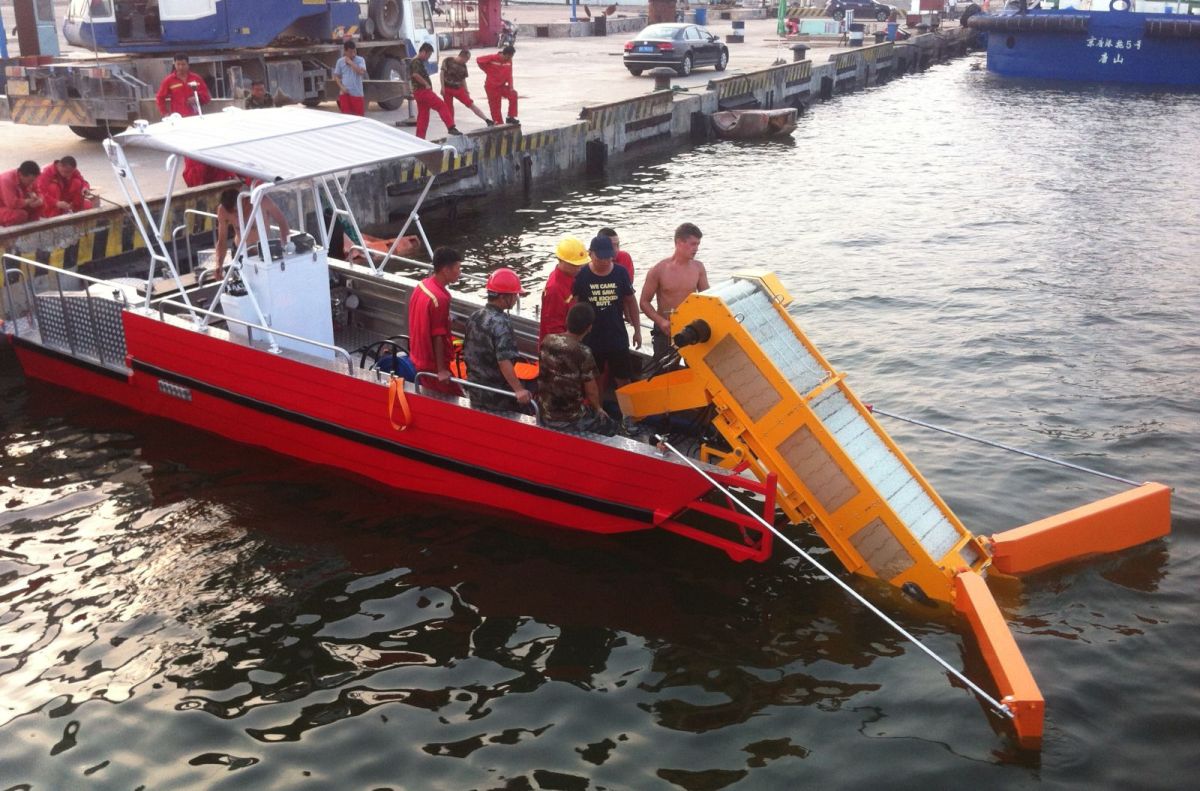

The “Tactic” multipurpose boat can be equipped with special skimming device (that is installed on the fore part), as well as with floating oil storage tanks. Such equipment allows using the “Tactic” boat as a special oil gathering vessel that effectively works in a distance from the coastline (with the capacity up to 15 m3/h).
Properties
|
Description |
Tactic 3200 |
Tactic 3700
|
Tactic 4200 |
Tactic 4600 |
Tactic 5200
|
Tactic 5800
|
Tactic 6500
|
Tactic 7500 |
Tactic 8500
|
|
Length, mm |
3200 |
3700 |
4200 |
4600 |
5200 |
5800 |
6500 |
7500 |
8500 |
|
Width, mm |
1640 |
1640 |
1640 |
1960 |
2150 |
2350 |
2350 |
2300 |
2330 |
|
Deck net area, m2 |
3 |
3,5 |
4 |
5 |
6 |
6 |
7,5 |
10,0 |
10 |
|
Vessel load-free weight, kg |
100 |
130 |
150 |
250 |
360 |
800 |
980 |
1300 |
1850 |
|
Maximum draft, m |
0,15 |
0,15 |
0,15 |
0,2 |
0,22 |
0,25 |
0,25 |
0,25 |
0,35 |
|
Load capacity, kg |
<400 |
<400 |
<500 |
<500 |
<600 |
<800 |
<1000 |
<2000 |
<2000 |
|
Outboard engine power, hp |
2-10 |
10-20 |
15-35 |
25-50 |
40-90 |
80-115 |
80-115 |
115-175 |
175-300 |
|
Complete load maximum speed, km/h |
<28 |
<28 |
<38 |
<50 |
<55 |
<55 |
<55 |
<50 |
<50 |
|
Fuel tank capacity, l |
– |
– |
– |
– |
– |
50 |
100 |
200 |
220 |
|
Boat crew, persons |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
2 |
2 |
