Multipurpose trimaran vessel “Plot-3”
Special Boats

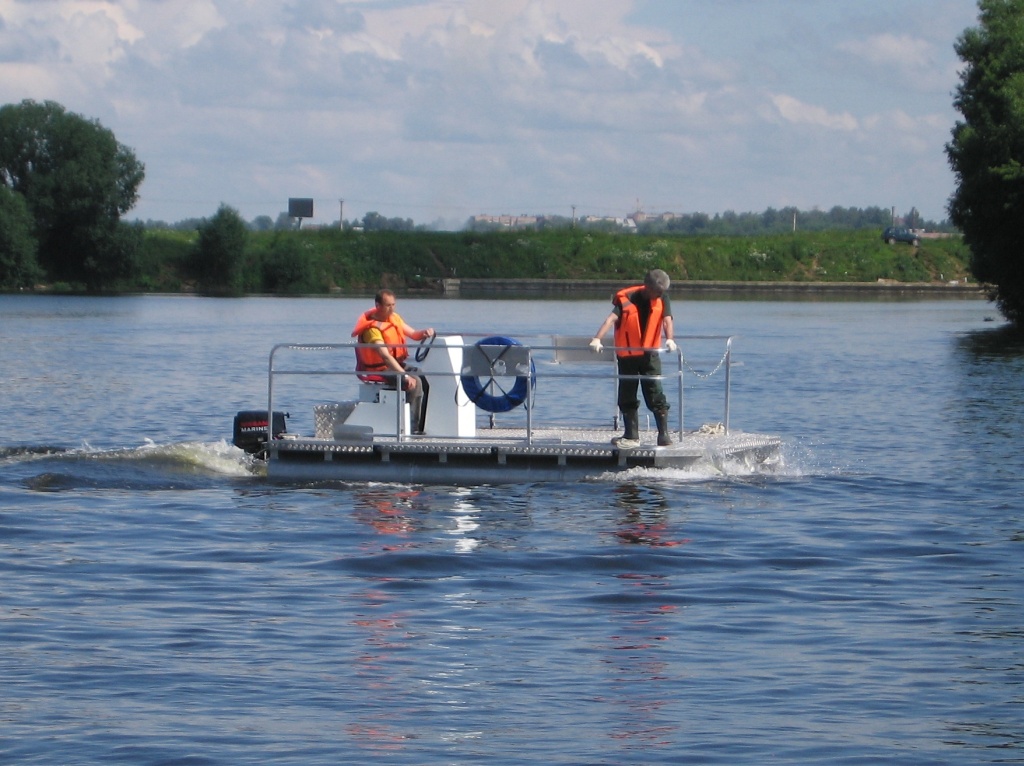

“Plot-3” boat

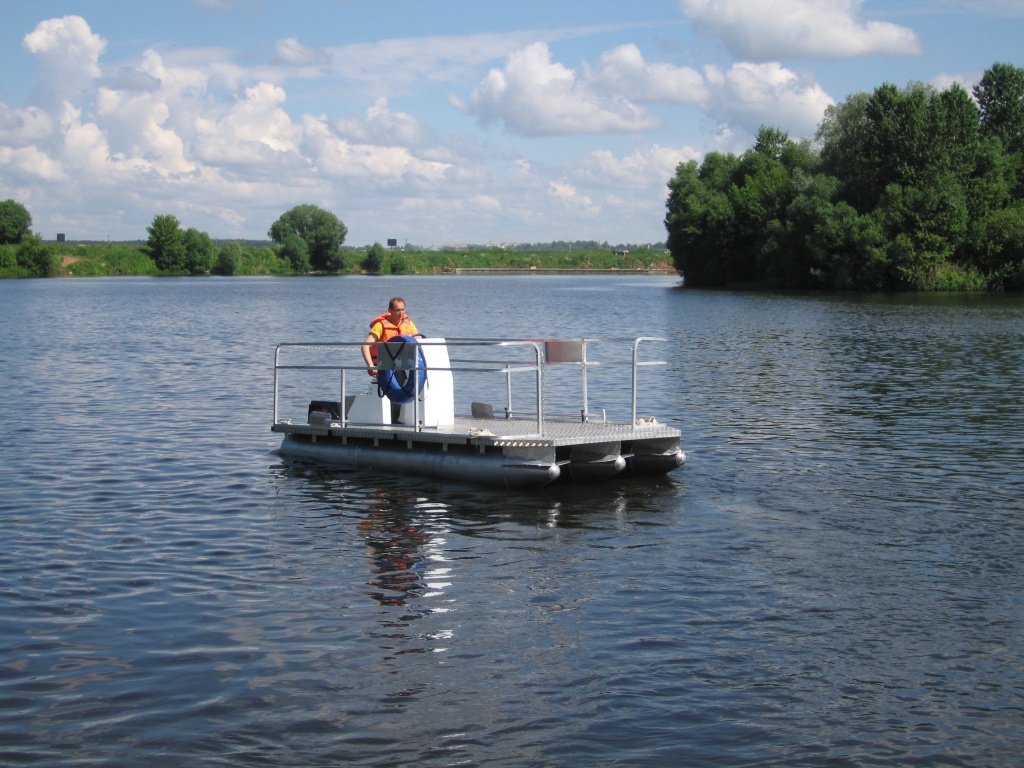

“Plot-3” boat

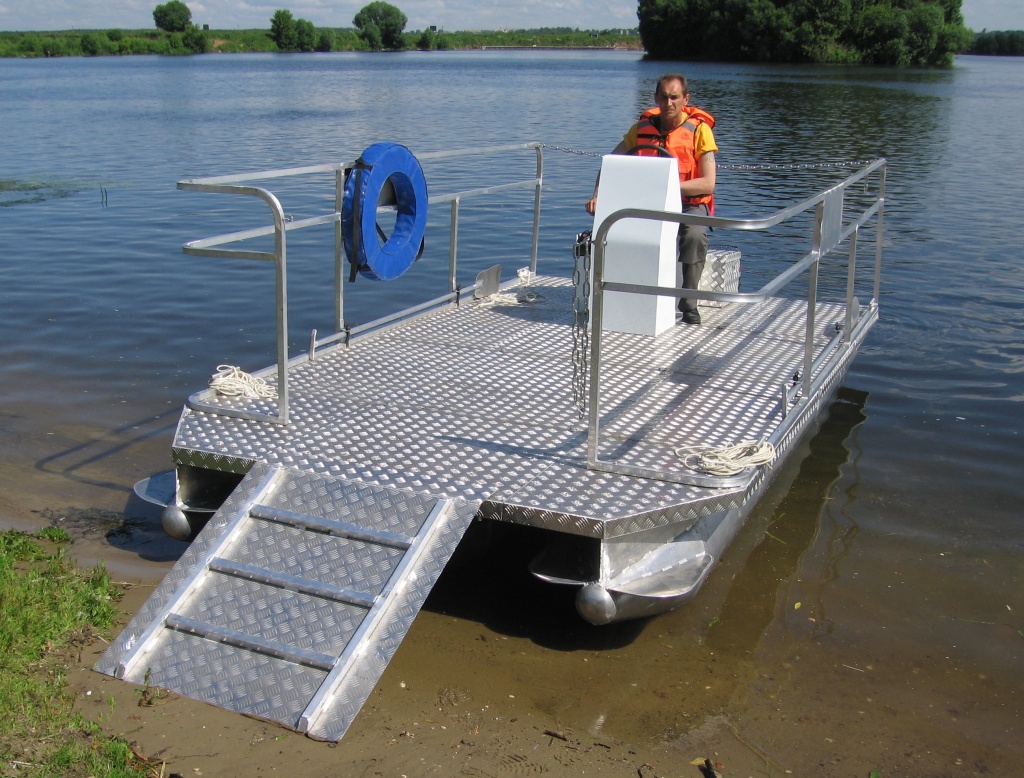

“Plot-3” boat on the bank
“Plot-3” boat on autotrailer
Description
“Eсoservice Oil” offers a new development – a multipurpose small trimaran vessel of the “Plot-3” model, which is designed to deliver equipment and personnel to the site of emergency recovery operations; for setting up booms and oil-gathering equipment; for washing the coastal strip from oil, etc.
The vessel can go to the work site under its own power or can be delivered by motor transport assembled immediately before operation. Floating parts of the trimaran ship “Plot-3” are made of aluminum alloy, which ensures their lightness and strength, they are not subject to corrosion and are resistant to oil and oil products.
The trimaran boat is driven by an outboard motor. Control of the catamaran ship is brought to a special steering rack located in the stern of the ship. The presence of steering control of a trimaran vessel provides its more efficient handling and compares favorably with other similar floating craft.
In the bow of the trimaran ship “Plot-3” there is a folding ramp, which is used for loading and unloading operations. A reliable guardrail is installed along the entire side of the trimaran vessel “Plot-3”.
The trimaran vessel “Plot-3” is designed to operate in the waters of rivers and lakes, as well as in the waters of river ports.
Recommended scopes of the trimaran vessel “Plot-3”: ·
The vessel can go to the work site under its own power or can be delivered by motor transport assembled immediately before operation. Floating parts of the trimaran ship “Plot-3” are made of aluminum alloy, which ensures their lightness and strength, they are not subject to corrosion and are resistant to oil and oil products.
The trimaran boat is driven by an outboard motor. Control of the catamaran ship is brought to a special steering rack located in the stern of the ship. The presence of steering control of a trimaran vessel provides its more efficient handling and compares favorably with other similar floating craft.
In the bow of the trimaran ship “Plot-3” there is a folding ramp, which is used for loading and unloading operations. A reliable guardrail is installed along the entire side of the trimaran vessel “Plot-3”.
The trimaran vessel “Plot-3” is designed to operate in the waters of rivers and lakes, as well as in the waters of river ports.
Recommended scopes of the trimaran vessel “Plot-3”: ·
- Delivery of equipment and personnel to the site of operational work to eliminate the consequences of emergency spills of oil and oil products;
- Installation of booms in the water area;
- Installation of oil-gathering equipment in the water area;
- Carrying out works on washing the coastal strip from oil / oil products pollution
.
Properties
|
Description |
Ratings |
|
Length, m |
up to 6,0 |
|
Width, m |
2,5 |
|
Working (useful) deck area, sq.m |
10 |
|
Weight without loading, kg |
600 |
|
Maximum draft, m |
0,4 |
|
Carrying capacity, kg |
up to 1000 |
|
Outboard motor power, hp |
55-115 |
| Fuel tank capacity, l |
up to 150 |
|
Maximum speed at full load, km / h |
up to 20 |
|
Crew |
2 |
