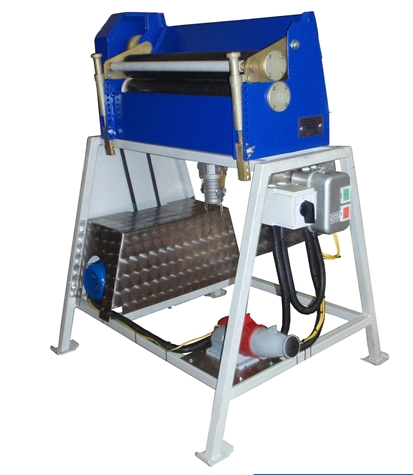

“OMU-3” Squeezer

 Squeezing device “OMU-3” is a specially designed mechanical product intended for regeneration (squeezing) of synthetic sorbent material of the type and products made from it, with the aim of their repeated use. The use of a squeezing device allows the consumer to use the sorbing material for up to five “sorption-squeezing” cycles with virtually no loss of sorption capacity.

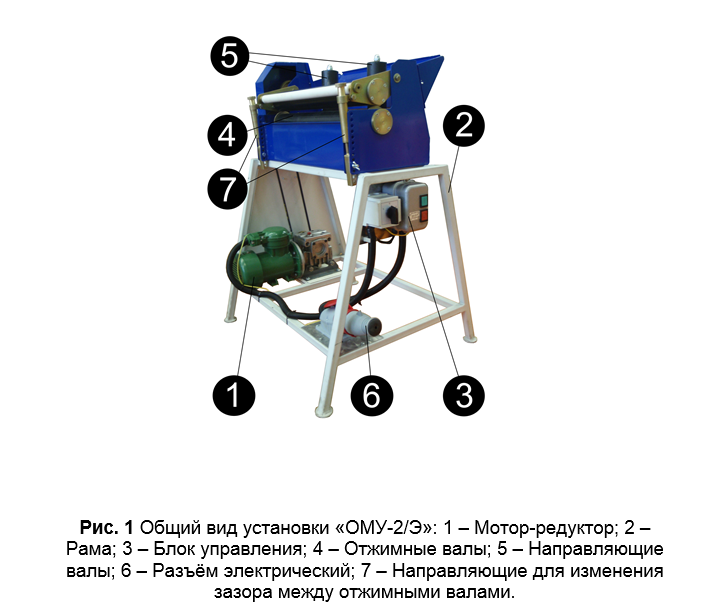

 Unlike “OMU-2”, this product uses a 380 V gear motor as a drive. The unit’s dimensions also do not exceed 110 cm, and the weight is within 65 kg. The collapsible frame allows for compact transportation.

• A squeezing mechanical device with a collapsible support frame – 1 piece;
• Electric gear motor – 1 piece;
• Starter – 1 piece;
• Flag switch – 1 piece;
• Passport for the squeezing device – 1 pc.

• total installation height – 102 cm;
• total installation length – 75 cm;
• total installation width – 68 cm;
• number of shafts – 2;
• the length of the squeezing rolls – 55 cm;
• diameter of squeezing rolls – 7 cm;
• maximum (adjustable) gap between the shafts – 11 cm;
• drive – electric gear motor (Voltage 380 V);
• installation weight – 63 kg
