Floating “RVH-Barge” tank series
Tanks for Temporary Storage of Oil

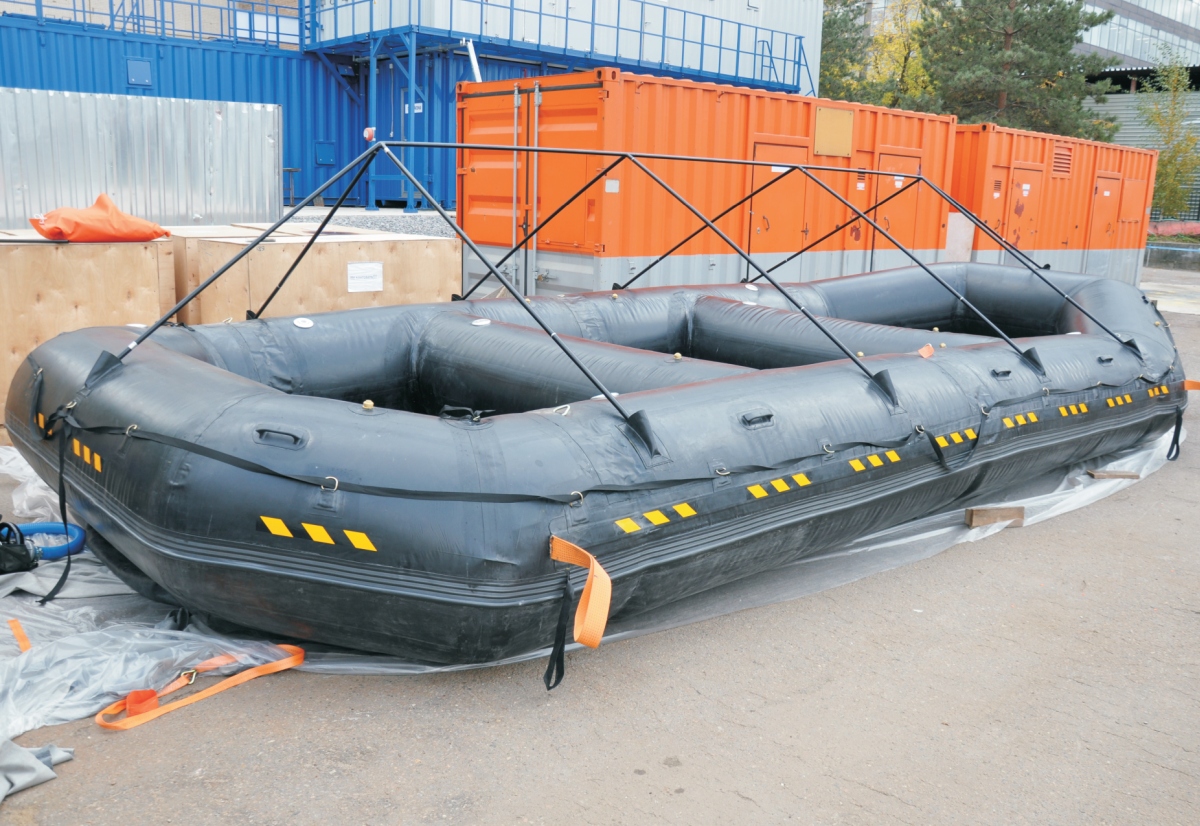

Assembled “RVH-25B” Tank

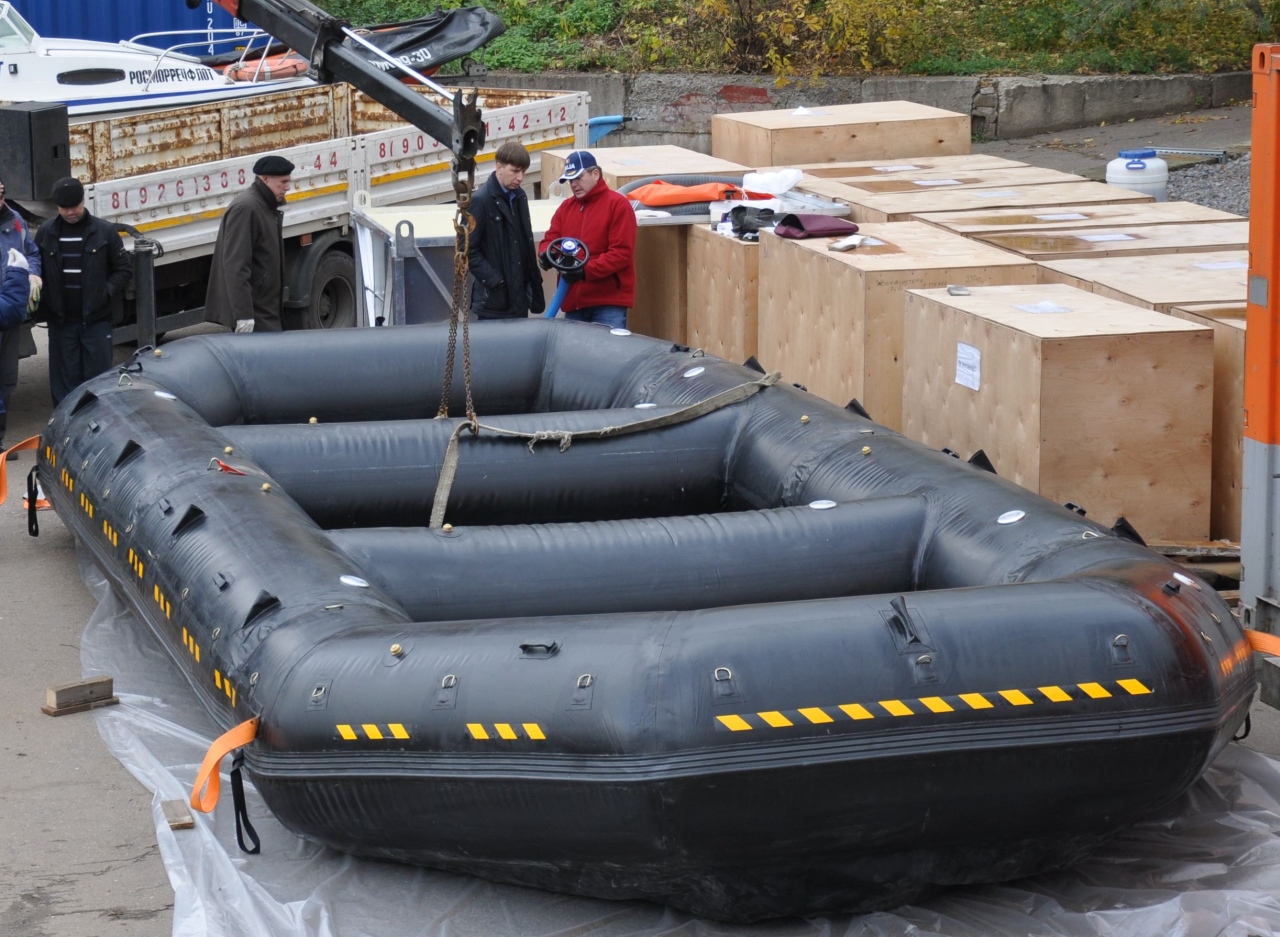

“RVH-25B” Tank

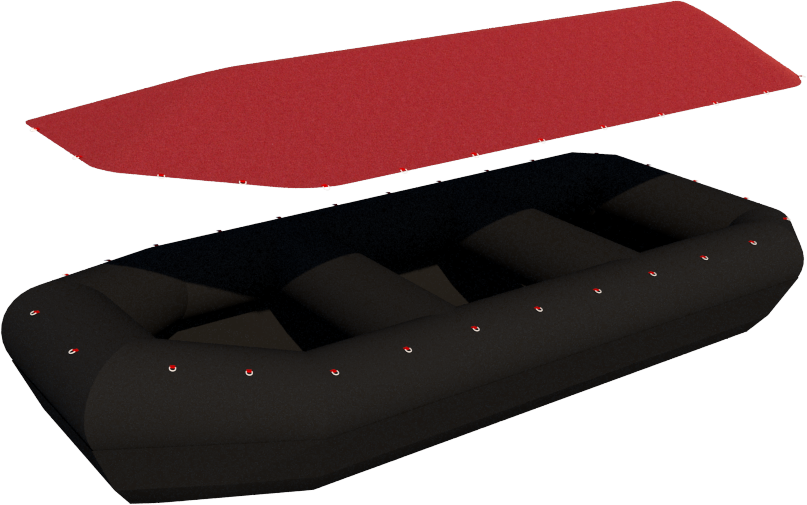

“RVH-25B” Tank scheme
Description
“Ecoservice Oil” offers quick-deployable floating tanks, which are inflatable structures made of neoprene-based polymer material. This material is resistant to oil, gasoline, and ultraviolet radiation.

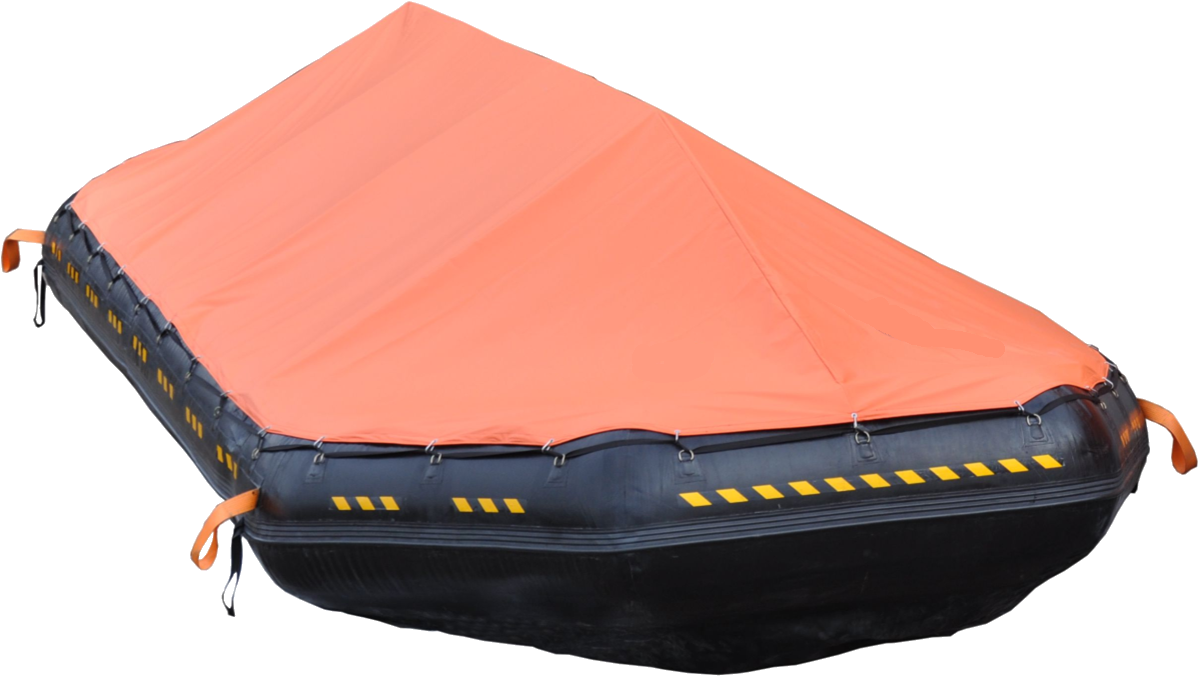

The tank is equipped with a clip-on covering canopy in order to prevent atmospheric precipitation from entering the tank and a towing rope for transportation.
The tank is equipped with a clip-on covering canopy in order to prevent atmospheric precipitation from entering the tank and a towing rope for transportation.
Properties
| Characteristic | RVH-10B | RVH-25B |
| Length, mm | 6900 | 9000 |
| Width, mm | 3300 | 4000 |
| Side height, mm | 800 | 900 |
| Side height at bow, mm | 1000 | 1150 |
| Side height at stern, mm | 850 | 980 |
| The height of the above-water part with a frame canopy, mm | 1300 | 1450 |
| Draft (filled), mm | 1200 | 1650 |
| Weight without cover canopy, no more than, kg | 200 | 260 |
| Operational volume, m³ | 10 | 25 |
| Number of air chambers, pcs | 6 | 8 |
| Overall volume of air chambers, m³ | 10 | 15 |
| Storage temperature, t° | [-50; +70] | |
| Material | Neoprene/Chloroprene | |
| Resistance to seawater | resistant | |
| Resistance to oil / petroleum products | resistant | |
| UV resistance | resistant | |
