Frame “RVH-Сarcass” tank series
Tanks for Temporary Storage of Oil

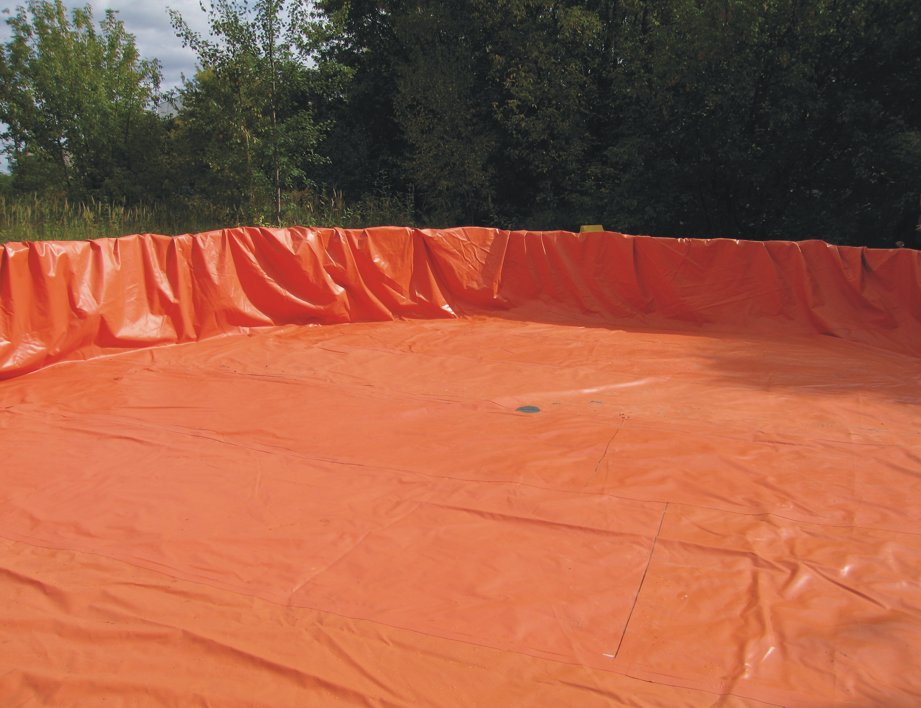

Inside “RVH-100К” Tank

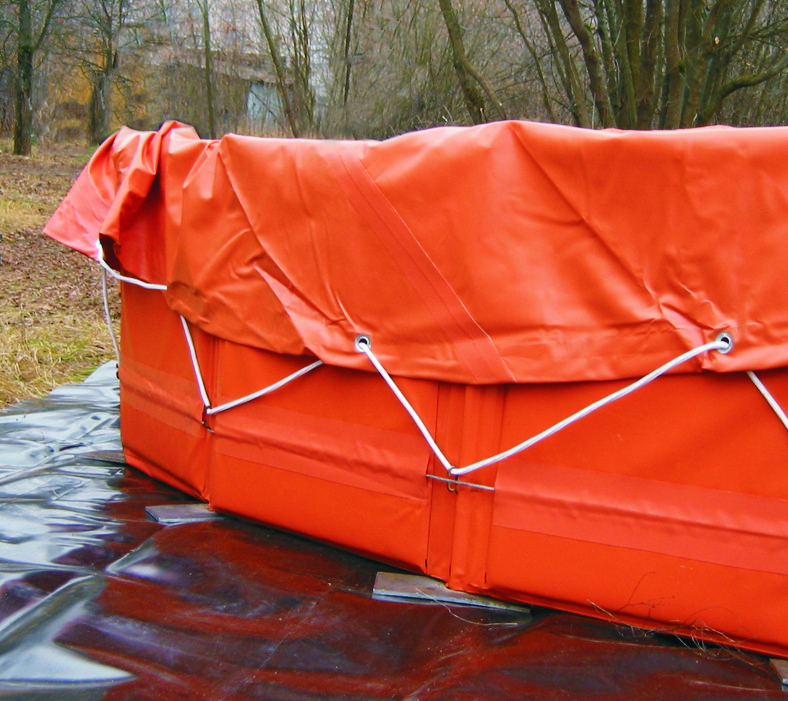

Tank “RVH-100К” in Operational Condition

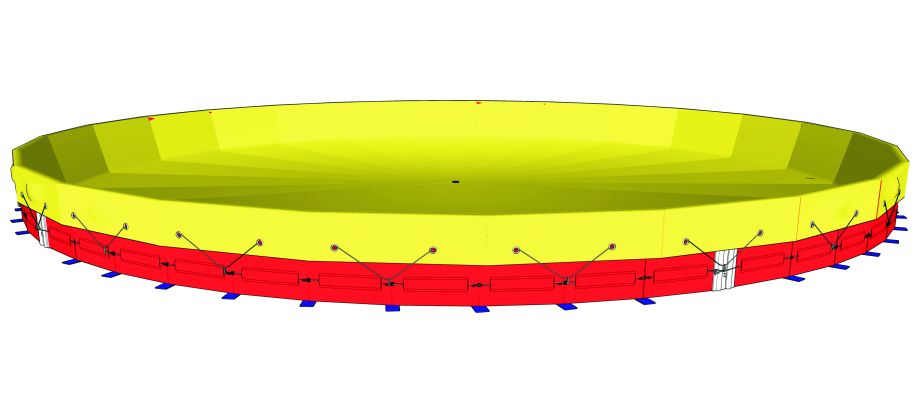

Tank “RVH-100К”
Description
Recommended range of application of the “RVH-Сarcass” series tanks:
- oil/petroleum product outflow elimination;
- fire extinguisher water reservoir;
- detergent service tank applied for equipment washing under high pressure etc.
The “RVH-Сarcass” series tank framework is enforced by its sidewalls made of 6 mm thick water-resistant plywood that is sealed in the foamed polyethylene casing.
The “RVH-Сarcass” series tank exterior casing is made of two-sided PVC or PVC+ polyurethane coating polymer-tissue fabric. These materials are perfectly resistant to oil, gasoline, mineral oil, sea water and ultraviolet influence.
To avoid damaging of the exterior tank casing it is preliminary recommended to guard its underlying surface with protective foamed polyethylene layer (delivered together with equipment).
To decrease the level of tank fluid evaporation, as well as to avoid the influence of rain and other precipitation, covering canopy is applied (delivered together with equipment).
The “RVH-Сarcass” series tank is painted in yellow and orange.
Storage and operation ambient temperature recommended for the “RVH-Сarcass” series tanks should be within the range from -30°С to + 60°С.
Properties
| Tank modification |
Operational tank volume, m3 |
Operating condition overall dimensions, m |
Transportation volume of the tank, m3 |
Transportation weight of tank, kg |
|---|---|---|---|---|
|
“RVH-1,0C” |
1,0 |
Ø1,5; h 0,65 |
0,14 |
20 |
|
“RVH-1,5C” |
1,5 |
Ø1,5; h 0,85 |
0,16 |
30 |
|
“RVH-2,5C” |
2,5 |
Ø1,8; h 1,0 |
0,20 |
35 |
|
“RVH-3,0C” |
3,0 | Ø2,5; h 0,65 | 0,26 | 38 |
|
“RVH-4,0C” |
4,0 | Ø2,5; h 0,85 | 0,30 | 43 |
|
“RVH-5,0C” |
5,0 |
Ø2,5; h 1,0 |
0,43 |
55 |
|
“RVH-8,0C” |
8,0 |
Ø3,2; h 1,0 |
0,7 |
95 |
|
“RVH-10C” |
10 |
Ø3,6; h 1,0 |
1,8 |
125 |
|
“RVH-100C” |
100 | Ø12,8; h 1,0 | 2 | 770 |
|
“RVH-200C” |
200 | Ø15,9; h 1,0 | ≤3 | 1000 |
|
“RVH-250C” |
250 | Ø19,1; h 1,0 | ≤3 | 1200 |
|
“RVH-300C” |
300 | Ø22,3; h 1,0 | ≤3 | 1400 |
|
“RVH-450C” |
450 | Ø25,5; h 1,0 | ≤4 | 1600 |
|
“RVH-500C” |
500 | Ø28,6; h 1,0 | ≤4 | 1800 |
