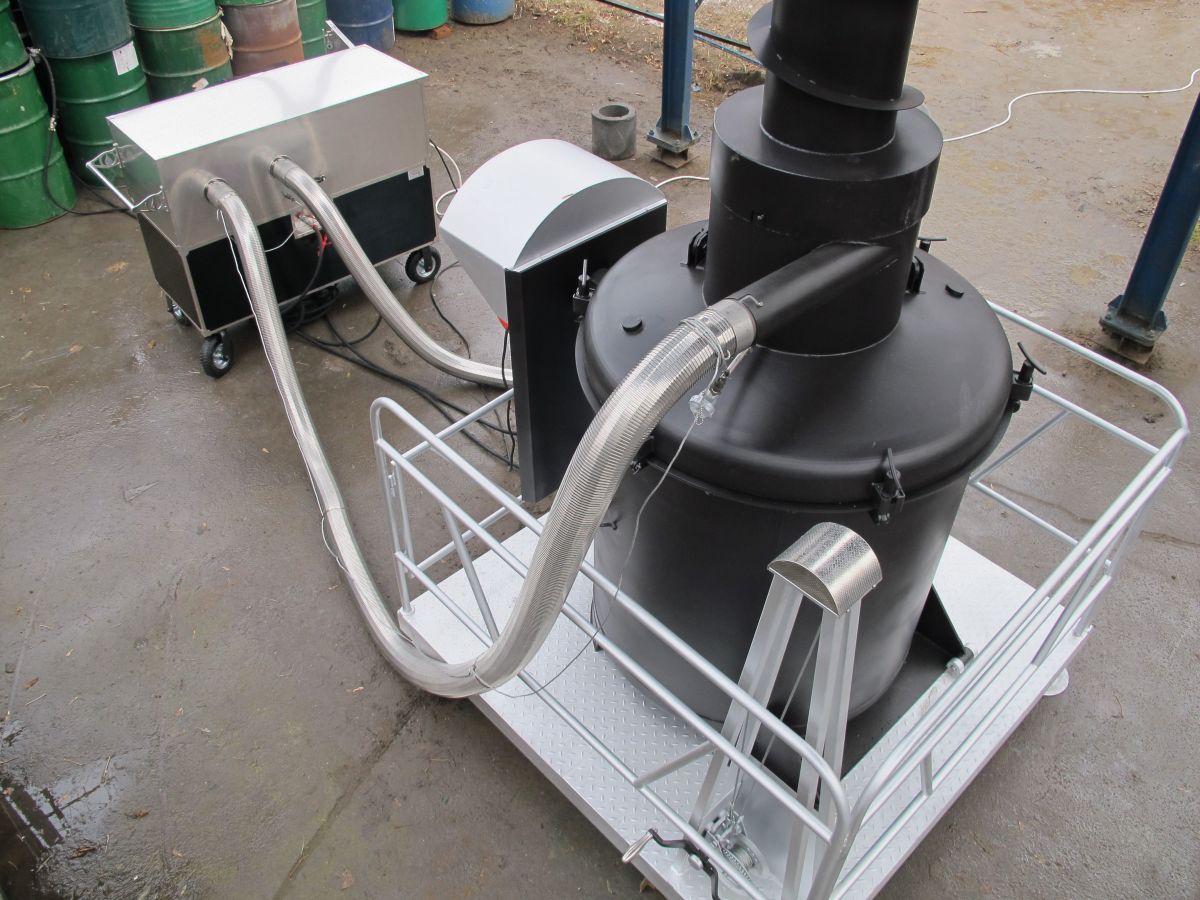

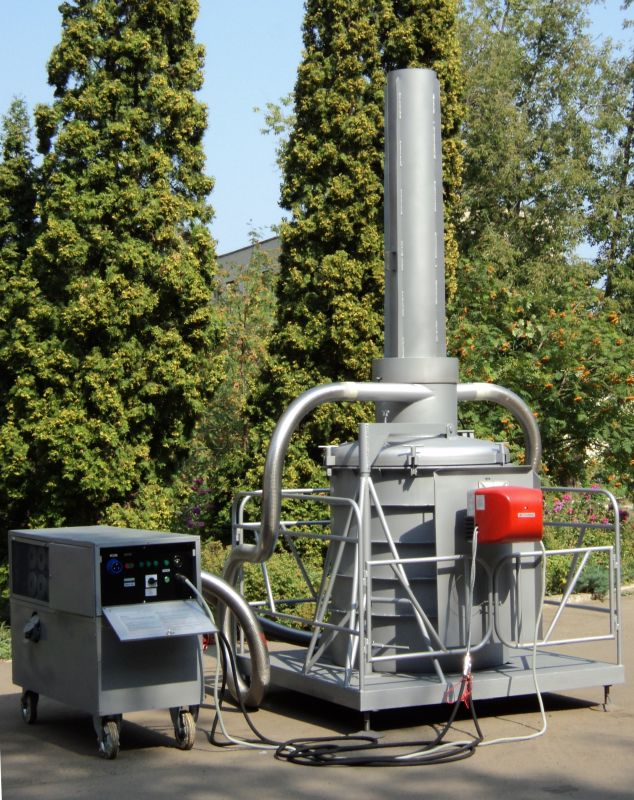

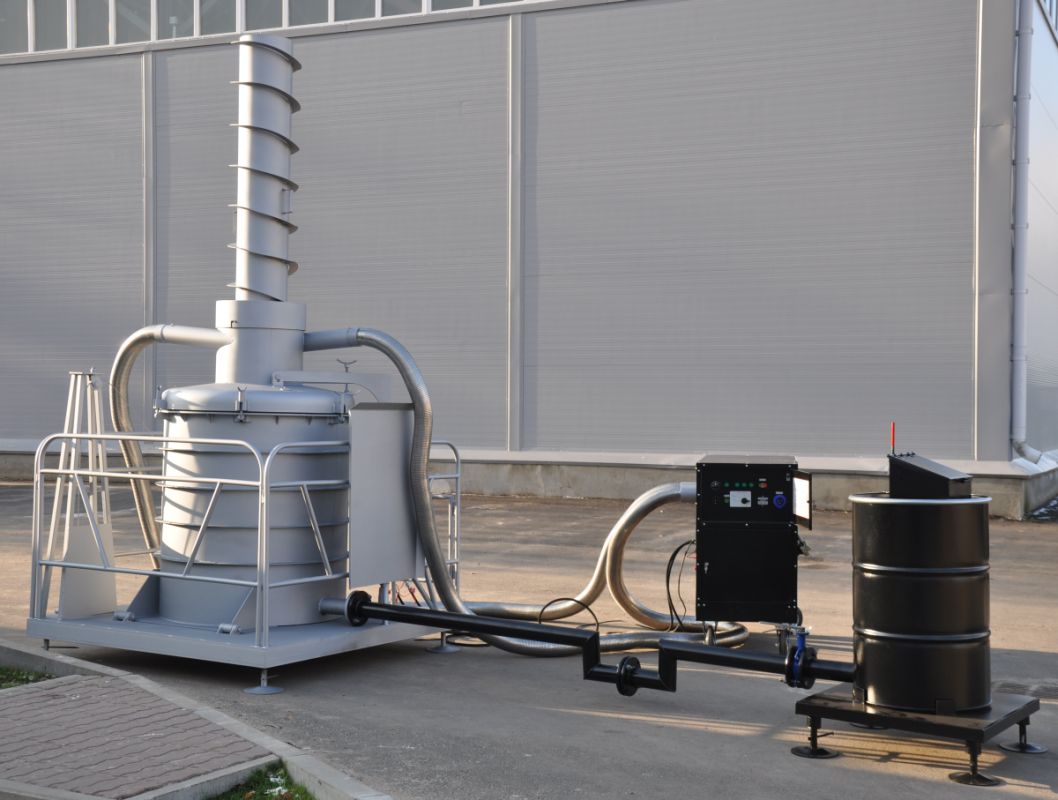

“Termanator-2” unit

The «Termanator-2» mobile pack manufactured by company «Ecoservice Oil» is designed for disposal (combustion) of different industrial organic waste (including oil containing waste).
 Due to high combustion temperature (more than 1000°С) that is gained in the after burning chamber, content of pollution agents in the exhaust gas is brought to minimum.  At the same time waste processed by the «Termanator-2» mobile pack is disposed practically totally, ash remain makes not more than 3-5 % of all waste volume charged.
 It is not allowed to combust highly in-flammable substances (gasoline, dissolvent, paints and varnishes), heavy metal and/or halogen containing waste in the «Termanator-2».
 The «Termanator-2» mobile pack is effective for the environmentally safely disposal of the following waste:

• used filters and absorbents;
• oiled rags and sawdust;
• paper products;
• oil containing waste (except of oiled ground);
• oil containing bottom sediments from reservoirs and tanks;
• domestic waste;
• biological waste.

Description		Ratings
Pack dimensions in transport condition	Combustion chamber, mm	1700x1700x2030

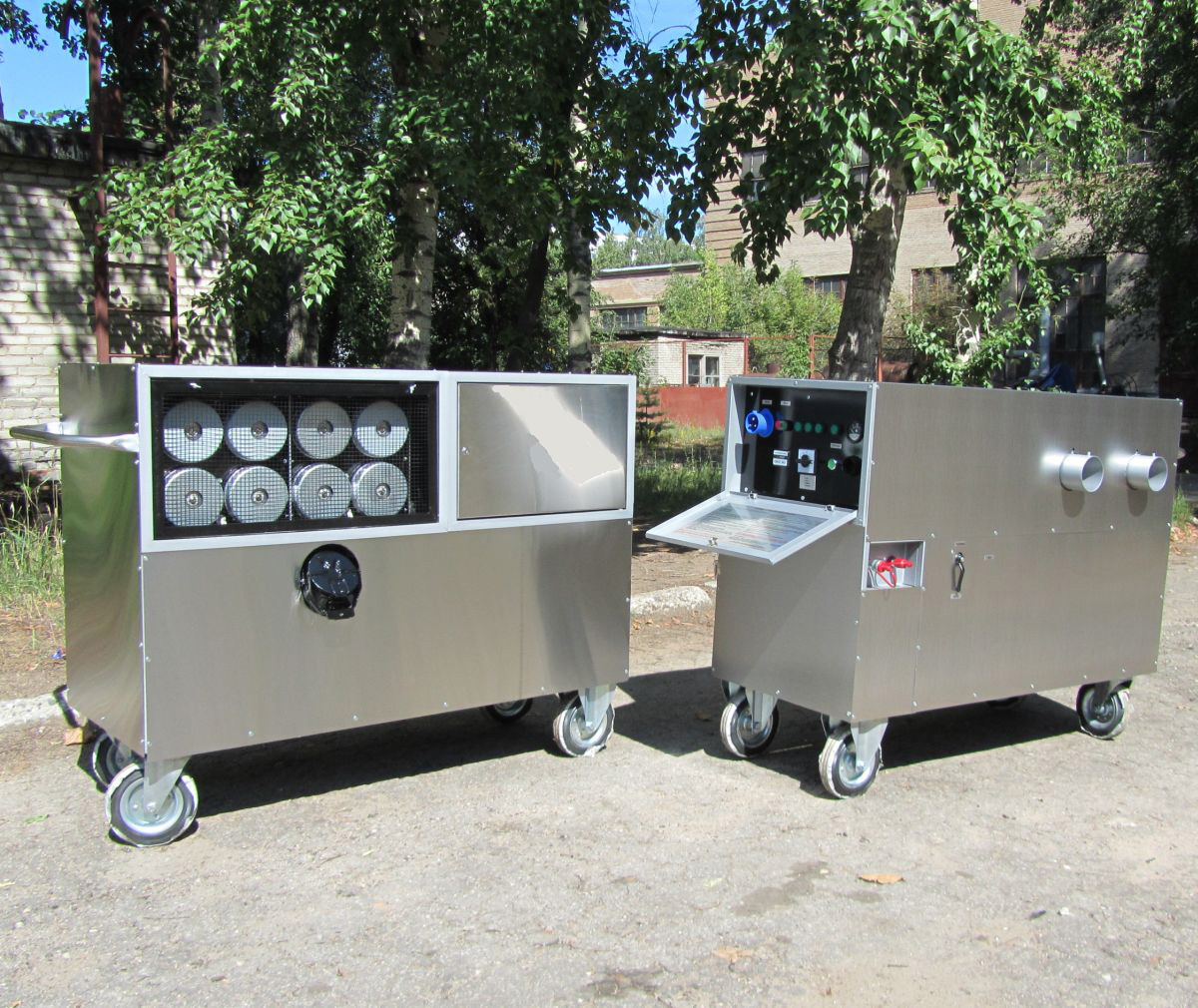

	Mobile control board, mm	650x1400x1140
	Exhaust gas pipe, mm	500×1950
Pack maximum weight in transport condition, kg		884
Recommended dimensions of ground area required for pack arrangement, m		3 x 8
Pack power supply		220В, 50Hz;
Pack maximum power consumption, kW/h		8,0
Burner diesel fuel consumption, l/h		12,8
Pack maximum capacity, kg/h		140
Combustion chamber maximum charging, m3		180
Diesel burner thermal power, kW		0,8
