Wellhead protection device (UZS)
Wellhead protection device
Description
“Eсoservice Oil” offers a device for protecting the wellhead from oil spill “UZS”.

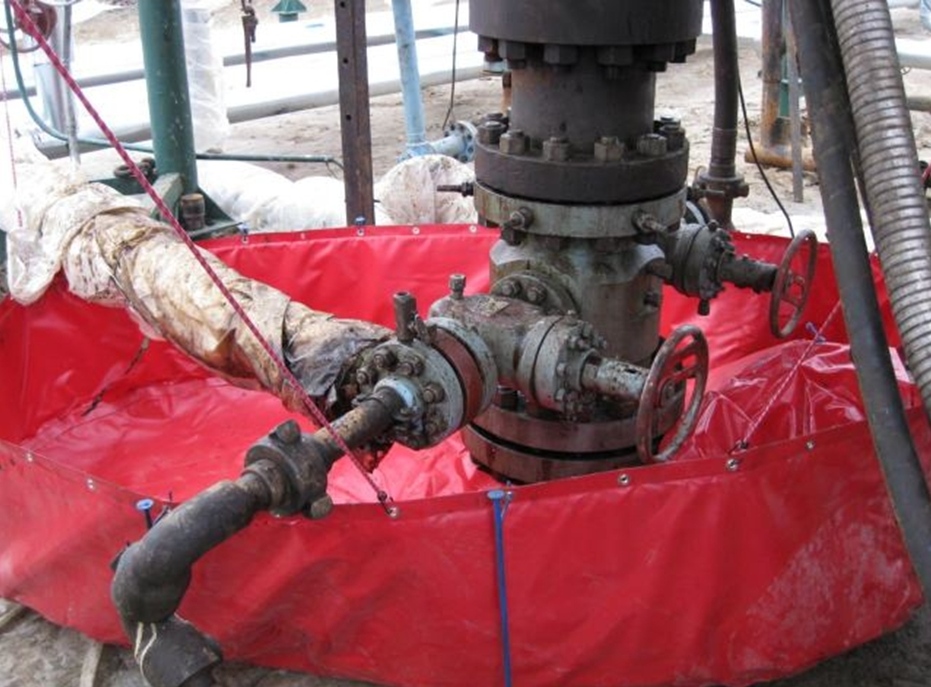

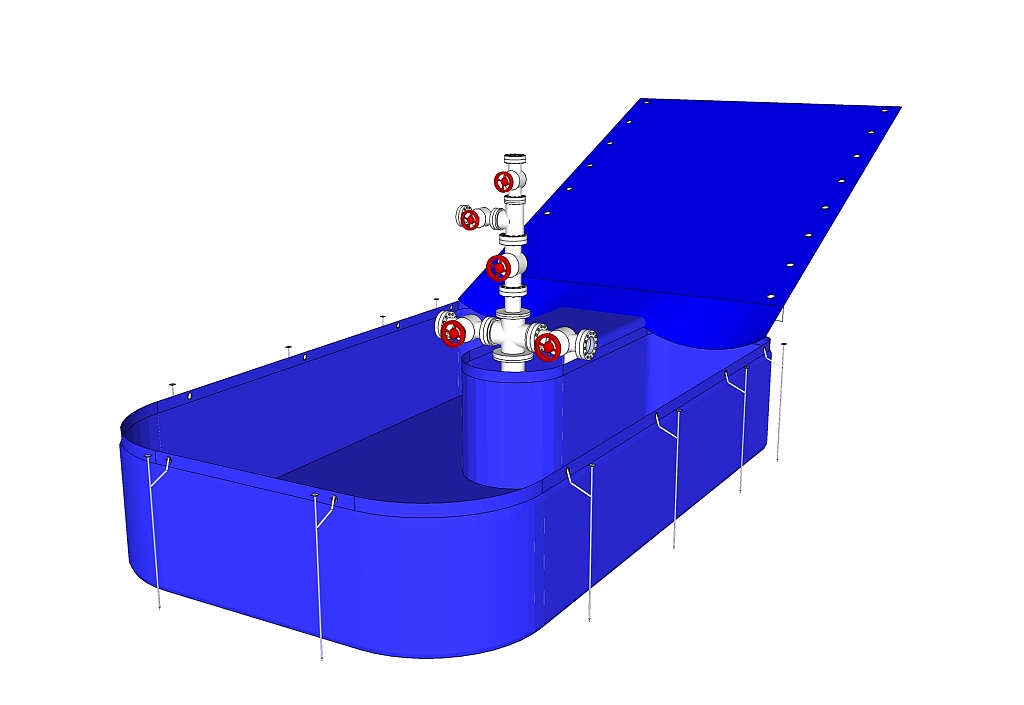

“UZS” is a compact reservoir installed around the wellhead and intended for capturing and temporary storage of spilled oil and oil-containing liquid during workover operations.
Recommended fields of application of “UZS”:
- as a protective (buffer) tank for oil / oil products during workover work;
- for capturing liquid waste, including oily waste, during workover work.
The outer shell of the “UZS” is made of a material with a synthetic base, coated with a double-sided PVC coating, or with a double-sided PVC coating with polyurethane. The materials used are resistant to oil/oil products, sea water and ultraviolet radiation
Equipment
|
Description |
Number (pcs) |
||||
| Device (UZS) |
1 |
||||
| Transportation bag |
1 |
||||
| Additional PVC protection covering 2,5х1,8m |
1 |
||||
| Protective decking made of polyethylene sheet thick 1mm |
1 |
||||
| 2m expander with hooks for device stretching |
14 |
||||
| Supporting metal pegs |
10 |
||||
| Absorbent napkin |
2 |
||||
| Carbine 40mm |
6 |
||||
| PA cord 6mm 2m |
1 |
||||
| Device passport |
1 |
||||
Properties
|
Description |
Ratings |
||||
| Overall dimensions in transport condition, m |
1,00 х 0,70 х 0,50 |
||||
| Overall dimensions in operating condition, m |
2,70 х 1,80 х 0,50 |
||||
| Gross weight, kg |
36 |
||||
