The “Shield” series constant-floating type oil booms manufactured by company «Ecoservice Oil» are designed for efficient containment of oil, petroleum products and other pollutants spilled over water surface by the means of oil booms arrangement on the special boards.
  The core of “Shield” series oil boom board is made of special polymer tissue 2 or 3 mm thickness. This material is perfectly resistant to oil, gasoline, mineral oil, sea water and ultraviolet influence.
  Floating units of “Shield” series oil boom are made of polyethylene, polystyrene or PVC.
  All connectors of “Shield” series oil booms are made from anodized aluminum and designed as Z-shaped quick connecting clamps.
  The “Shield” series oil boom section length is of 15-30 m.
  The “Shield” series oil booms are effective at the velocity of the flow up to 1,5 m/s.
  Storage and operation ambient temperature recommended for “Shield” series oil booms should be within the range from -30°С to + 60°С.
  Recommended range of application of the “Shield” series oil booms:

• containment of oil/petroleum product outflow that can occur in rivers, lakes and their port water areas,
• construction of a stationary localizing barrier nearby industrial facilities (on-loading terminals, oil-field equipment, main underwater oil pipeline passages etc.).

Modification of oil boom	Total Height, mm	Freeboard, mm	Draft, mm	Weight per meter, kg
“Shield-45”  (060101)	450	200	250	4,0
“Shield-60”  (060201)	600	250	350	5,0
“Shield-90” (060301)	900	350	550	7,5

Modification of Oil boom	Transportation Volume of  m3/100 m,	Maximum Tensile Strength, kg	Double Tension
			Top (steel wire), mm	Bottom (steel wire), mm
“Shield-45” (060101)	2,2	1000	–	–
“Shield-60” (060201)	3,0	2500	6,9	6,9
“Shield-90” (060301)	3,5	3500	6,9	6,9

 The “Zaslon-Beach” series oil booms manufactured by company «Ecoservice Oil» are designed not only for efficient containment of oil and other pollutants spilled over water surface, but also for efficient prevention of oil transfer to beach zone.
 The “Zaslon-Beach” series oil booms have two tubes – floating and ballast. Floating tube is air or expanded polyethylene filled and ballast tube (consist of two parts) water filled.
 The material of outer cover is perfectly resistant to oil, gasoline,mineral oil, sea water and ultraviolet influence. The oil boom is can be produced in yellow.
 Storage and operation ambient temperature recommended for «Zaslon-Beach» series oil booms should be within the range from -30°C to + 60°C.
 All the connectors of «Zaslon-Beach» series oil booms are made from anodized aluminum and designed as Z-shaped quick connecting couplings. All the connectors can be combined with connectors of the “Zaslon” series oil booms.

Modification of oil boom	Weight of one linear meter inclusive section connectors, kg	Section Length, m	Ballast
“Zaslon-Beach-50”	3,0-5,0	10	steel galvanized chain d=8
“Zaslon-Beach-60
“Zaslon-Beach-75

The “Termoshield” series oil fire-resistant booms manufactured by company «Ecoservice Oil» are designed for:

• efficient containment of oil, petroleum products spilled over water surface for cases of probability of burning of oil and petroleum products
• containment of oil at fire spot
• liquidation of oil spot over water surface by controlled oil burning

The “Termoshield” series oil booms are effective at the velocity of the flow up to 1,0 m/s and wave height up to 0,6 – 0,9 m.

Description	Ratings
Height, mm
– total     – freeboard     – draft	750 250 500
Section Length, m	5
Oil Booms Operation and Storage Temperature Range, °C	[-40; +1100]
Total Weight of 1 Oil Boom Section, kg	10
Transportation volume , m3/120m	24

The «Zaslon-Sea» series inflatible oil booms manufactured by company «Ecoservice Oil» are designed for efficient containment of oil and other pollutants spilled over water surface.
 The «Zaslon-Sea» series oil boom fabric is made of neoprene coated high-strength polyamide-tissue. These materials are of high wear, puncture and collapsing resistance and also are perfectly resistant to oil, gasoline, mineral oil, see water and ultraviolet influence.   The oil boom is of black color. Floating chambers of «Zaslon-Sea» series oil boom are equipped with air valves. All connectors of «Zaslon-Sea» series oil booms are made from anodized aluminum and designed as Z-shaped quick connect ing couplings. High strength ballast chain is halvaniszed. The «Zaslon-Sea» series oil boom section length is of 20-30 m.
 Storage and operation ambient temperature recommended for «Zaslon-Sea» series oil booms should be within the range from -30°С to + 60°С.


Modification	Total height, mm	Freeboard, mm	Draft, mm	Floating unit length, mm	Weight of linear meter, kg
“Zaslon-Sea-120” (100101)	1150	450	650	3000 (depends on the length of the section)	10
“Zaslon-Sea-150” (100201)	1500	500	700		13
“Zaslon-Sea-200” (100301)	2000	600	1000		16

 The «Zaslon» series solid float type oil booms manufactured by company «Ecoservice Oil» are designed for efficient containment of oil and other pollutants spilled on water surface. The «Zaslon» series oil boom fabric is made of two-sided PVC or PVC+ polyurethane coating polymer-tissue. These materials are perfectly resistant to oil, gasoline, mineral oil, sea water and ultraviolet influence.
 The oil boom can be produced in yellow, orange and red colors.
Floating units of «Zaslon» series oil boom are made of elastic foam polyethylene. The floatations of «Zaslon» series oil boom have cylindrical or flat shape.
All the connectors of «Zaslon» series oil booms are made from anodized aluminum and designed as Z-shaped quick connecting couplings. The «Zaslon» series oil boom section length is of 10-30 m. The «Zaslon» series oil booms are effective at currents up to 1,5 m/s. Storage and operation ambient temperature recommended for «Zaslon» series oil booms should be within the range from -30°С to + 60°С.
Recommended range of application of the «Zaslon» series oil booms:

• containment of oil spills at rivers, lakes and their port water areas,
• for permanent installation barriers nearby industrial facilities (oil terminals, oil-field equipment, main underwater oil pipeline passages etc.).

Modification	Total Height, mm	Freeboard, mm	Draft, mm	Weight of linear meter inclusive section clamps, kg
“Zaslon – 30” (010101)	300	100	200	2,5
“Zaslon – 50” (010201)	500	200	300	5
“Zaslon – 50P”* (010102)	500	180	320	4,0
“Zaslon – 70” (010201)	700	300	400	5,5
“Zaslon – 70P”* (010202)	700	280	420	4,5
“Zaslon – 90” (010301)	900	400	500	7,5
“Zaslon – 90P”* (010302)	900	350	550	5,0
“Zaslon – 110” (010401)	1100	450	650	9,0
“Zaslon –110P”* (010402)	1100	400	700	5,5
“Zaslon – 120” (010501)	1200	500	700	10,0
“Zaslon – 120P”* (010502)	1200	450	740	6,5
“Zaslon – 130” (010601)	1300	550	750	11,0

Modification	Transportation volume, m3/100 m	Maximum tensile  strength (at least, kg)	Two tension lines
			Top (steel rope),  mm	Bottom (steel galvanized chain), mm
“Zaslon – 30”	1,5	2000	–	8
“Zaslon – 50”	4,0	3000	6-7	9
“Zaslon – 50Р”*	2,5	1700	–	9
“Zaslon – 70”	6,5	3000	6-77	9
“Zaslon – 70Р”*	4,0	2500	–	10
“Zaslon – 90”	15,0	4000	7-8	10
“Zaslon – 90Р”*	4,5	2500	–	10
“Zaslon –110”	20,0	4000	8-9	10
“Zaslon –110Р”*	6,0	2500	–	10
“Zaslon – 120”	20,0	4000	8-10	10
“Zaslon – 120Р”*	5,5	2500	–	10-11
“Zaslon – 130”	20,0	4000	8-10	11

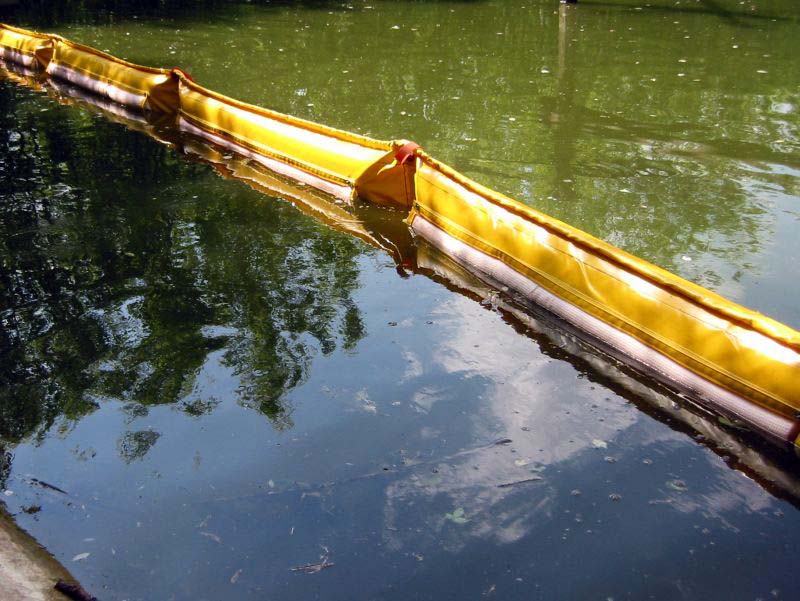

The “Zaslon-Sorb” series absorbing oil booms manufactured by company «Ecoservice Oil» are designed for efficient containment of oil, petroleum products and other pollutants spilled over water surface. The offered oil booms are effective to use as for efficient containment of oil, petroleum products and other pollutants spilled over water surface as for recovery of pollutants without use of specialized oil recovery equipment.
 The “Zaslon-Sorb” series oil boom cover is made of two-sided PVC or PVC+ polyurethane coating polymer-tissue fabric. These materials are perfectly resistant to oil, gasoline, mineral oil, sea water and ultraviolet influence.
 The oil boom is painted in yellow, orange and red.
 Floating units of “Zaslon-Sorb” series oil boom have cylindrical or flat shape and are made of elastic foam polyethylene.
 Oil boom absorbing units are fit with reuse absorbing product. One 10-metres oil boom section consists of 5 absorbing units.
 Absorbing capacity of one 10-metres “Zaslon-Sorb” series oil boom section is 30 to 50 kg of oil/petroleum product. Absorbing oil saturated elements regeneration is carried out in wringing.
 Acceptable number of effective cycles “absorption-regeneration” for one “Zaslon-Sorb” absorbing section amounts to at least 10 times.
 All connectors of “Zaslon-Sorb” series oil booms are made from anodized aluminum and designed as Z-shaped quick connecting clamps.
 The “Zaslon-Sorb” series oil boom section length is of 10-20 m.
 The “Zaslon-Sorb” series oil booms are effective at the velocity of the flow up to 1,5 m/s.
 Storage and operation ambient temperature recommended for “Zaslon-Sorb” series oil booms should be within the range from -30°С to + 60°С.
 Recommended range of application of the “Zaslon-Sorb” series oil booms:

• containment and recovery of oil/petroleum product outflow that can occur in rivers, lakes and their port water areas
• construction of a stationary localizing barrier nearby industrial facilities (on-loading terminals, oil-field equipment, main underwater oil pipeline passages etc.).

Modification of Oil boom	Maximum Tensile Strength, kg	Double Tension
		Top (steel wire), mm	Bottom (steel galvanised chain), mm
“Zaslon-Sorb-50” (020101)	3500	6,9	9
“Zaslon-Sorb-70” (020201)	4000	6,9	9
