“Toros” series

Posted on October 18, 2023 by admin

“Toros” series

Oil Containment Booms

“Toros” oil boom

“Toros” oil boom with skimmers

“Toros” oil boom

“Toros” oil boom deployment

Description
Properties

Request Order

Description

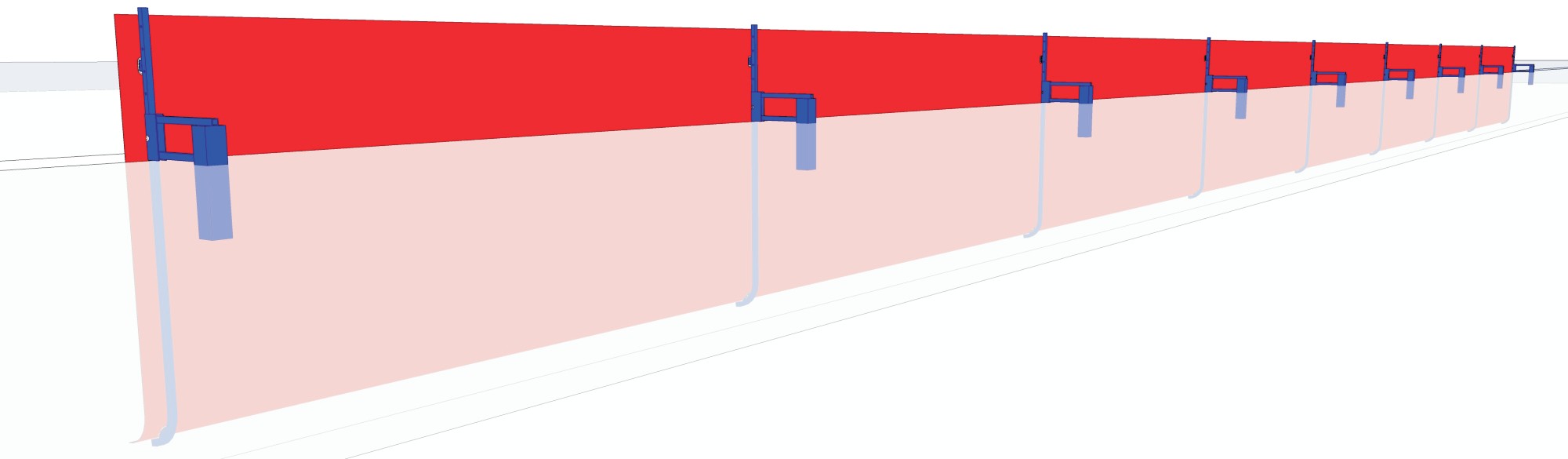

The “Toros” series oil booms manufactured by company «Ecoservice Oil» are designed for efficient containment of oil, petroleum products on rivers in the freezing period.
Oil booms “Toros” consist of sections and each section is a combination of several elements.
The sections are connected by system of locking elements. The section fabric of “Toros” is made of frost proof polymer-fabric material with both sides PVC coat for oil booms. The bearing construction of steel pipes is made to keep the booms in upright position. It is recommended to use oil booms “Toros” at current velocities up to 1,0 m/sec.
It is most practicable to deploy oil booms “Toros” at ice thickness from 25 up to 90 cm.

Properties

Description	Ratings
Height, mm
total	1440-2000
above ice	from 200 to 900
under ice	500
Section Length, m	15
Oil Booms Operation and Storage Temperature Range, °C	-40 … +40
Total Weight of 1 Oil Boom Section, kg	55-70
Transportation volume , m³/100m	not more than 2,0

Sorbent Oil Booms “Sorbon”

Posted on October 18, 2023 by admin

Sorbent Oil Booms “Sorbon”

Oil Containment Booms

Description

Request Order

Description

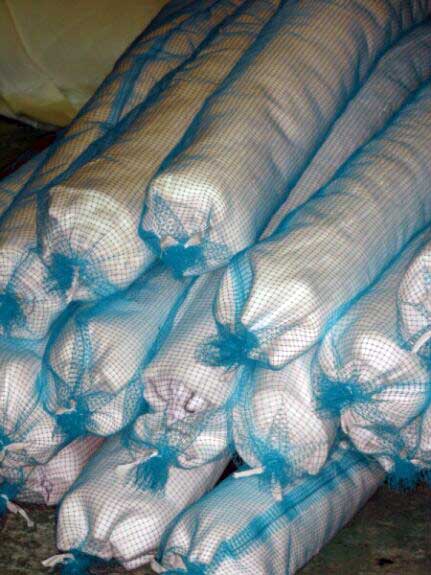

Eсoservice Oil offers sorbent booms that can be successfully used for the containment and elimination in cases of emergency oil/oil products leakages.
High sorption properties of sorbing booms are achieved by using a sorbing material, the sorption capacity of which is up to 18 kg (depending on the viscosity of the collected oil / oil products).
The buoyancy of the sorbing booms is ensured by the “core” of expanded polyethylene. This design of the sorbent booms ensures their long-term buoyancy after being completely saturated with oil.
Sorbent booms are produced in the following modifications:

Sections 5m long with a diameter of 10cm;
Sections 5m long with a diameter of 20cm;
Sections 10m long with a diameter of 10cm;
Sections 10m long and 20cm in diameter.

The dimensions of the sections of the sorbing booms can be different at the request of the Customer.

Wellhead protection device (UZS)

Posted on October 18, 2023 by admin

Wellhead protection device (UZS)

Wellhead protection device

Description
Equipment
Properties

Request Order

Description

“Eсoservice Oil” offers a device for protecting the wellhead from oil spill “UZS”.
“UZS” is a compact reservoir installed around the wellhead and intended for capturing and temporary storage of spilled oil and oil-containing liquid during workover operations.

Recommended fields of application of “UZS”:

as a protective (buffer) tank for oil / oil products during workover work;
for capturing liquid waste, including oily waste, during workover work.

The outer shell of the “UZS” is made of a material with a synthetic base, coated with a double-sided PVC coating, or with a double-sided PVC coating with polyurethane. The materials used are resistant to oil/oil products, sea water and ultraviolet radiation

Equipment

Description	Number (pcs)
Device (UZS)	1
Transportation bag	1
Additional PVC protection covering 2,5х1,8m	1
Protective decking made of polyethylene sheet thick 1mm	1
2m expander with hooks for device stretching	14
Supporting metal pegs	10
Absorbent napkin	2
Carbine 40mm	6
PA cord 6mm 2m	1
Device passport	1

Properties

Description	Ratings
Overall dimensions in transport condition, m	1,00 х 0,70 х 0,50
Overall dimensions in operating condition, m	2,70 х 1,80 х 0,50
Gross weight, kg	36

Peristaltic Pump System “PNS”

Posted on October 18, 2023 by admin

Peristaltic Pump System “PNS”

Screw Hydraulic Pumps

Peristalic pump

Power engine

Description
Properties

Request Order

Description

Peristaltic pump system “PNS” is designed for the pumping high-viscosity fluids as oil or oil sludge.
Peristaltic pump system “PNS” can be effectively used for:

    • gathering oil products during oil spill response
    • treatment bottom oil sludge in oil storage tanks
    • using as outer discharging pump

Properties

Description	Ratings
Type of the pump	Outer peristaltic pump
Productivity, m³/h	11
Maximum viscosity of the pumped product, sSt	10⁶
Maximum pressure in output, atm	10
Weight, kg	146
Dimensions, m	0,98 x 0,88 x 0,95
Power supply	diesel-hydraulic gasoline-hydraulic electro-hydraulic
Dimensions of the power unit, m	1,02 x 0,8 x 0,94
Weight of power unit, kg	100

NPG-60/17 Pump

Posted on October 18, 2023 by admin

NPG-60/17 Pump

Screw Hydraulic Pumps

Description
Properties

Request Order

Description

Company «Ecoservice Oil» offers screw hydraulic pump NPG-60/17. Pumps are designed for different liquids, oil and oil products transferring and have high corrosion resistance to seawater.

Properties

Description	NPG- 60/17
Nominal transfer capacity, m3/hour, (l/s), rpm	60 (16,7) 3850
Discharge head, m	17
Maximal feeding, (m3/hour),(l/sec) at lift height 5 m	90 (25)
Acceptable suction height, m	8
Transferred liquid temperature C°	0-60
Maximal concentration of solid particles, %	5
Solid particles maximal size, mm	5
Working power on maximal speed, kW	6
Speed of rotation, rpm	300-3 850
Dimensions (LxWxH), (mm)	415 х 210 х 225
Suction hose diameter, mm	100
Discharge hose diameter, (мм)	65
Weight of pump, (with hydraulic motor, without connectors) max., (kg)	17,5
Hydraulic demand:	Axial piston motor
Displacement, sm³	5-6
Max. working pressure in hydraulic system, atm	350/210
Max. speed of rotation, rpm	4000

Pumping system for oil/oil products “NSd-60/17”

Posted on October 18, 2023 by admin

Pumping system for oil/oil products “NSd-60/17”

Screw Hydraulic Pumps

Pumping system for oi /oil products “NSd-60/17”

Description
Properties

Request Order

Description

“Ecoservice Oil” offers a pumping system for oil/oil products “NSd-60/17”.
This pumping system can be used for pumping oil and oil products.
The pumping system is autonomous as it is driven by an integrated diesel engine.

Properties

Description	Ratings
Pump type	diagonal-auger
Performance, m³/h	40
Permissive size of mechanical impurities, mm	5
Length, mm	1010
Width, mm	830
Height, mm	900
Weigth, kg	110
Engine type	diesel
Engine power, kW	4,8

Autonomous pump system for oil/oil products transfer

Posted on October 18, 2023 by admin

Autonomous pump system for oil/oil products transfer

Screw Hydraulic Pumps

Description
Properties

Request Order

Description

This pumping system is based on the industrial membrane pump. The autonomous pumping system is intended for use both during scheduled and emergency recovery operations for pumping various types of liquids – contaminated water, oil/oil products, liquid oil waste, etc.
An autonomous pumping system can be manufactured with various types of drive – diesel, electric, gasoline, pneumatic.

Properties

Description	Ratings
Pump type	membrane
Maximum performance, m³/h	31,8
Permissive size of mechanical impurities, mm	60
Required drive power, kW	3,5
Maximum liquid lifting height, m	30,5
Connecting fittings size, mm	75
Размер насосной системы
Length, mm	1280
Width, mm	830
Height, mm	840
Weight (dry), kg	105

Portable Pump System

Posted on October 18, 2023 by admin

Portable Pump System

Screw Hydraulic Pumps

Portable Pump System

Description
Properties

Request Order

Description

This pump system is designedd on basis of high capacity rotary pump. The pump system is designed for fluids transfer of high and of low viscosity (from 1 mPа*s up to 106 mPa*s) containing lots of abrasive particles, like river water with big content of mud, oil products, oil sludge etc. This pump system can be sucessfully used in response to emergencies due to floodings.

Properties

Description	Ratings
Type of the pump	XLB4-JD-60
Capacity, m³/h	up to 275
Maximum suction head, m	8
Maximum liquid lifting range, m	40
Solids handling up to, mm	60
Length, mm	4900
Breadth, mm	2550
Height, mm	200
Weigh, kg	2000
Engine, (type of engine)	HATZ (diesel), 4-cyl.
Required power of the drive, kW	60

Portable Pump System for Oil Transfer (Gear-Pump-based)

Posted on October 18, 2023 by admin

Portable Pump System for Oil Transfer (Gear-Pump-based)

Screw Hydraulic Pumps

Portable Pump System for Oil Transfer

Portable Pump System for Oil Transfer with diesel engine

Description
Properties

Request Order

Description

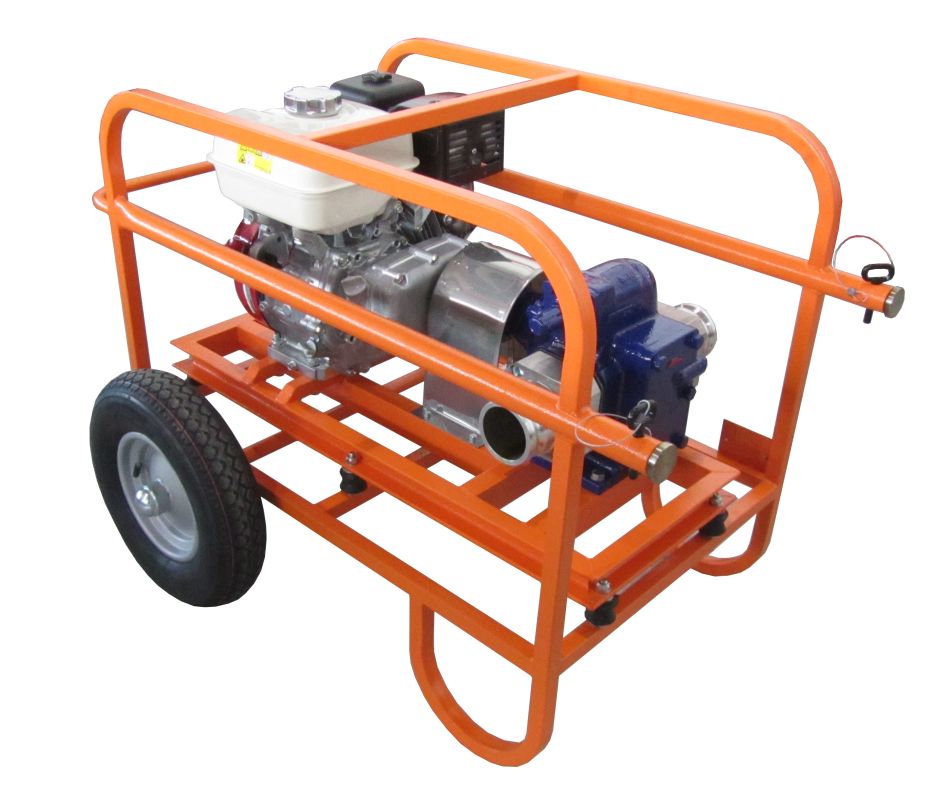

“Ecoservice Oil” offers а potrable pump system for oil and other fluids transfer.
This transfer system can be used as an outer discharge pump for various oil skimmers.
The pump system is a portable one and is driven by gasoline engine.
Optionally the pump system can be delivered with diesel or electric engine.

Properties

Description	Ratings
Pump type	gear
Capacity, m³/h	30
Solids handling up to, mm	5
Length, mm	900
Breadth, mm	500
Height, mm	600
Weight, kg	68
Engine, (engine type)	HONDA (gasoline), 1-cylinder
Engine output power, h.p.	9
Starter	hand

Squeezer “OMU-2”

Posted on October 18, 2023 by admin

Squeezer “OMU-2”

Squeezers

Description
Equipment
Properties

Request Order

Description

The “OMU-1” and “OMU-2” squeezers manufactured by the company “Ecoservice Oil” and used for recovery (squeezing) of oil-saturated absorbing products.
Operating the squeezer any customer can reuse absorbing material up to 5 cycles “absorbtion-squeezing” without loosing its absorbing capacity.

Equipment

Mechanism “OMU-2” with a collapsible frame
Cover for “OMU-2”
Device passport

Properties

Description	“OMU_2”
Method of shaft rotation	Driven by built-in hydraulic or electrical motor
Total height of squeezer, sm	110
Total width of squeezer, sm	95
Number of shafts	2
Length of squeezers shafts, sm	60
Diameter of squeezers shafts, sm	8
Maximum (adjustable) clearance between shafts, sm	up to 11
Squezzers weight, kg	49
