Squeezer “OMU-1”

Posted on October 18, 2023 by admin

Squeezer “OMU-1”

Squeezers

Description
Properties

Request Order

Description

The “OMU-1” and “OMU-2” squeezers manufactured by the company “Ecoservice Oil” and used for recovery (squeezing) of oil-saturated absorbing products.
Operating the squeezer any customer can reuse absorbing material up to 5 cycles “absorbtion-squeezing” without loosing its absorbing capacity.

Main specifications of the “OMU-1” and “OMU-2” squeezers are given in the table below

Properties

Description	“OMU-1”
Method of shaft rotation	manual
Total height of squeezer, sm	90
Total width of squeezer, sm	90
Number of shafts	2
Length of squeezers shafts, sm	60
Diameter of squeezers shafts, sm	6,5
Maximum (adjustable) clearance between shafts, sm	up to 2,5
Squezzers weight, kg	21,4

“OMU-3” Squeezer

Posted on October 18, 2023 by admin

“OMU-3” Squeezer

Squeezers

Description
Equipment
Properties

Request Order

Description

Squeezing device “OMU-3” is a specially designed mechanical product intended for regeneration (squeezing) of synthetic sorbent material of the type and products made from it, with the aim of their repeated use. The use of a squeezing device allows the consumer to use the sorbing material for up to five “sorption-squeezing” cycles with virtually no loss of sorption capacity.
Unlike “OMU-2”, this product uses a 380 V gear motor as a drive. The unit’s dimensions also do not exceed 110 cm, and the weight is within 65 kg. The collapsible frame allows for compact transportation.

Equipment

A squeezing mechanical device with a collapsible support frame – 1 piece;
Electric gear motor – 1 piece;
Starter – 1 piece;
Flag switch – 1 piece;
Passport for the squeezing device – 1 pc.

Properties

total installation height – 102 cm;
total installation length – 75 cm;
total installation width – 68 cm;
number of shafts – 2;
the length of the squeezing rolls – 55 cm;
diameter of squeezing rolls – 7 cm;
maximum (adjustable) gap between the shafts – 11 cm;
drive – electric gear motor (Voltage 380 V);
installation weight – 63 kg

Stationary (assembling) installation

Posted on October 18, 2023 by admin

Stationary (assembling) installation

Lightning Installation

Description
Equipment
Properties

Request Order

Description

Standard construction of the lightning installation has a collapsible mast on supporting crossbar or on a standard automobile trailer with lights fitted at the top of the mast.
The lightning installations are designed for use in places where standard electric circuits can’t be used, especially for:

oil spill response operation at field conditions
planned repairing and emergency works at various industrial facilities in field conditions

The lightning installation can be done in various mast heights, output power, type and number of lights.

Equipment

2-section lighting mast with support cross;
4 x 500W halogen floodlights;
Three-core cable, 50m.
4 stretch marks of 4 meters with lanyards;
Packing box
Lamp passport

Properties

Description	Ratings
Dimensions in operational mode, m	4,2 x 2,2 x 5,5
Dimensions in transportation mode, m	3,9 x 1,65 x 1,5
Weight, kg	up to 300
Type of lamp	halogen
Type of lamp-socket	R7S
Power of lights, kW	4 x 0,5
Voltage, V	220

Portable autonomous installation

Posted on October 18, 2023 by admin

Portable autonomous installation

Lightning Installation

Description
Equipment
Properties

Request Order

Description

Standard construction of the lightning installation has a assembling mast on supporting crossbar or on a standard automobile trailer with lights fitted at the top of the mast.
The lightning installations are designed for use in places where standard electric circuits can be used, especially for:

oil spill response operation at field conditions
planned repairing and emergency works at various industrial facilities in field conditions

The lightning installation can be done in various mast heights, output power, type and number of lights.

Equipment

Lighting installation folded on a standard auto trailer
Transport case for generator
Generator Operation and Maintenance Manual
Mobile unit passport

Properties

Description	Ratings
Overall dimensions in operating condition:
Length, m	3.2
Width, m	1.75
Height, m	3.2-4.5
Overall dimensions in transport condition:
Length, m	3.2
Width, m	1.75
Height, m	1.65
Lamp type	LED
Number of spotlights, pcs	4
Lamp power, V	28
Overall installation lamps power, V	0.112
Luminous flux power, lm	3100
Supply voltage, V	220
Power cable length, m	50
Generator characteristics
Engine type	Diesel
Engine power, kW	3,0
Cooling engine/generator	air/air
Voltage, V	220
Current frequency, Hz	50
Fuel tank capacity, l	14,5
operating time with one refueling with 75% load, h	9

Emergency installation ” Light pole”

Posted on October 18, 2023 by admin

Emergency installation ” Light pole”

Lightning Installation

Description
Equipment
Properties

Request Order

Description

A “light pole” is a tissue cylinder with an end-positioned light source, supported in an upright position for blowing air. The installation allows you to provide a stable level of light during operation at night. A high pressure lamp DNAT or DNAZ with a power of up to 1000W is used as a light source. The installation comes to a vertical position within a minute after switching on, while the lamp sets the level level within 5 minutes. This allows you to quickly deploy the installation in emergency conditions and emergencies. “Light pole” is supplied in various configurations – with/without an autonomous energy source (electric generator). In the case when the electric generator is included, the pole is installed on it. In this case, the installation height is roughly 8.5 m (depending on the installation type). The unit is supplied in various versions with different heights and lamp wattage; minimum installation height – 3 m. Additional supports gust resistance up to wind 20 m / s.

Equipment

Installation “Light pole” (fabric base, lamp, air blower);
Gasoline electric generator;
Insurance stretchers and pegs;
Spare lamp HPS;
Supporting documentation (installation passport)

Complectation variations

	Modification	Height, m
1	“Light pole” 600 W (mains supply 220 W)	3-5
2	“Light pole” 600 W (mains supply 220 W)	5
3	“Light pole” 600 W (mains supply 220 W)	5-7
4	“Light pole” 600 W (mains supply 220 W)	7
5	“Light pole” 1000 W (mains supply 220 W)	3-5
6	“Light pole” 1000 W (mains supply 220 W)	5
7	“Light pole” 1000 W (mains supply 220 W)	5-7
8	“Light pole” 1000 W (mains supply 220 W)	7
9	“Light pole” 600 W (petrol generator 2,5 kW)	3-5
10	“Light pole” 600 W (petrol generator 2,5 kW)	5
11	“Light pole” 600 W (petrol generator 2,5 kW)	5-7
12	“Light pole” 600 W (petrol generator 2,5 kW)	7
13	“Light pole” 1000 W (petrol generator 2,5 kW)	3-5
14	“Light pole” 1000 W (petrol generator 2,5 kW)	5
15	“Light pole” 1000 W (petrol generator 2,5 kW)	5-7
16	“Light pole” 1000 W (petrol generator 2,5 kW)	7

Properties

Description	Ratings
Overall dimensions in operating condition:
lenght, mm	600
width, mm	450
height, m (depends on model)	3-5
Overall dimensions in transport condition:
lenght, mm	620
width, mm	470
height, mm	850
weight, kg	≤65
light source	high pressure discharge lamp DNAT or DNAZ
Light source power, W (depends on model)	600
Luminous flux, Lm	86 000
Inflation time of the fabric cylinder, sec, up to	30-60
Lamp full charge time, min	3-5
Restarting tome for lamp, min	15-20
Wind resistance, m/s, up to	20
Electric shock protection class	1 or P (1 или П)
Air blower
Productivity, m³ / min	2,5 – 3,5
Operating hours counter	+

Anti-filter covering installation service

Posted on October 18, 2023 by admin

Anti-filter covering installation service

Anti-filtration covering and additional products and services

Description

Request Order

Description

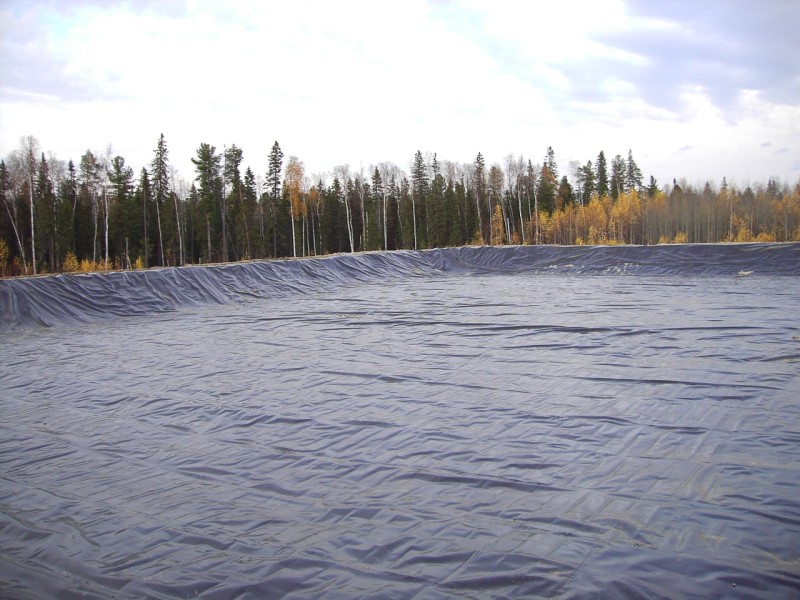

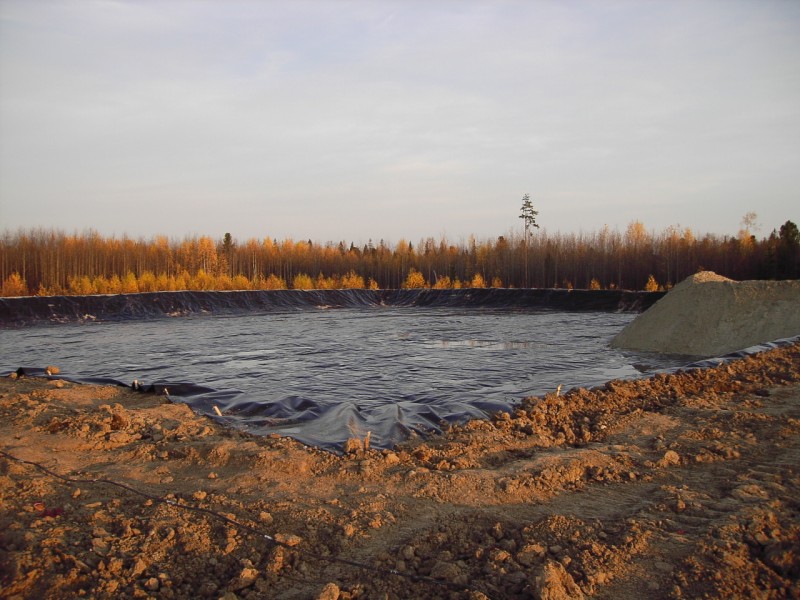

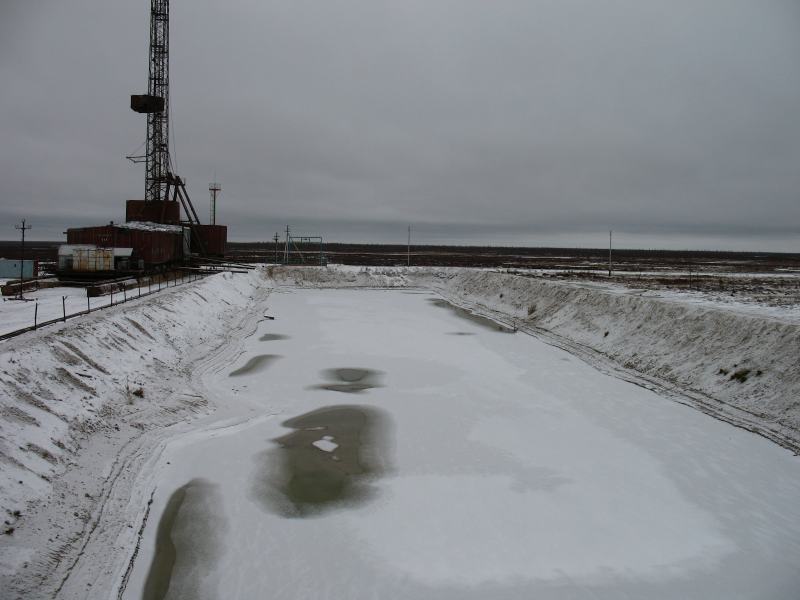

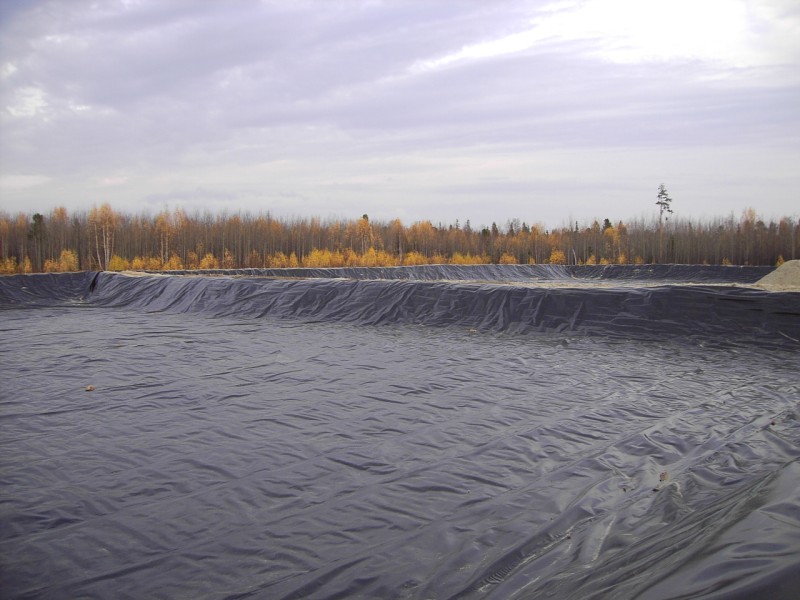

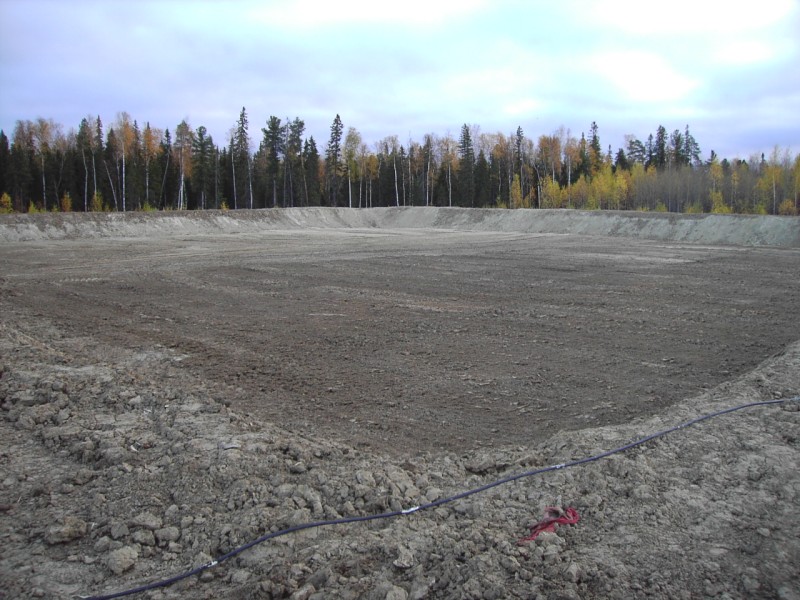

“Ecoservice Oil” offers its services for a full range of works related to the installation of anti-filter (waterproofing) screens for any storage of liquid and solid, industrial and domestic waste, as well as for other industrial facilities (tank farms, chemical warehouses, well pads and etc.), where it is necessary to ensure reliable protection of the underlying surface and underground horizons from the penetration of pollutants.

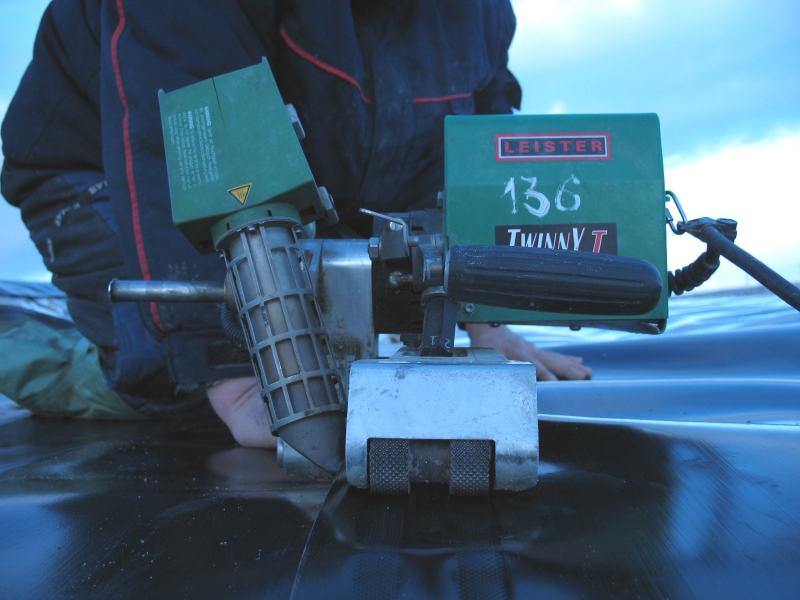

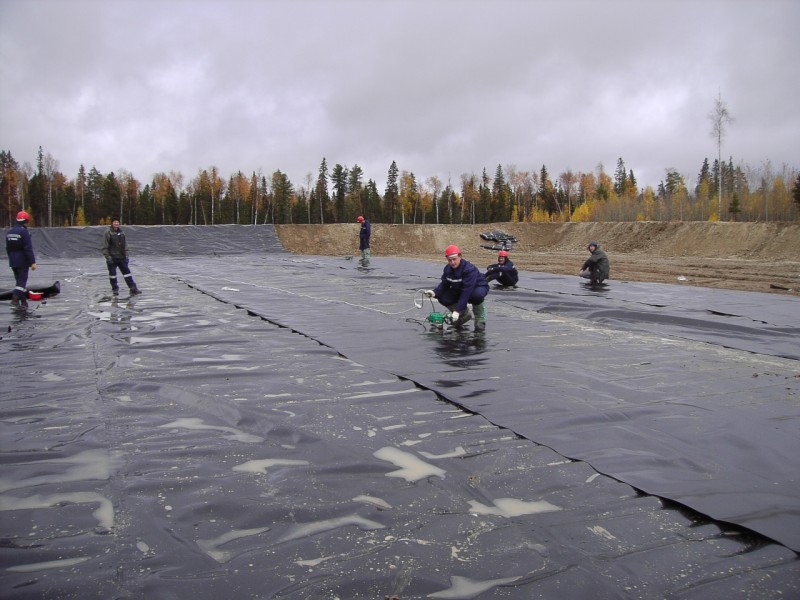

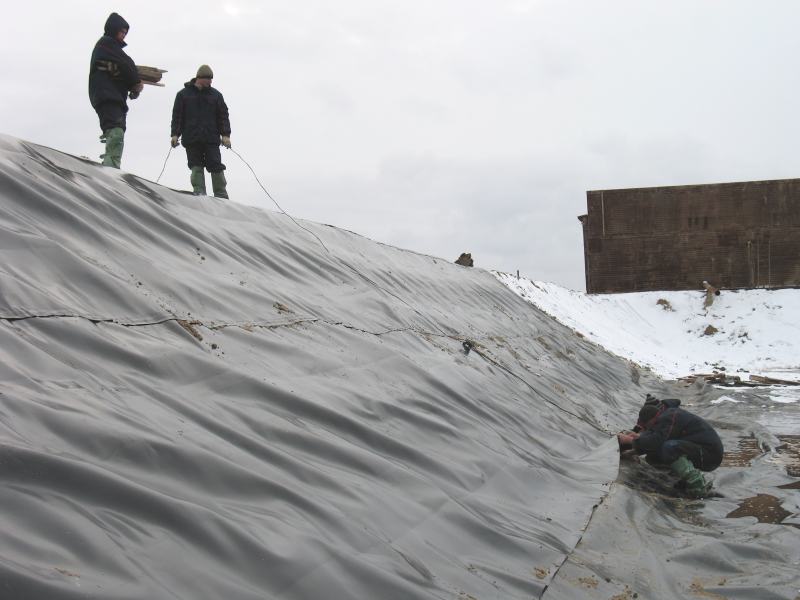

Installation of anti-filter screens is carried out by thermal welding of polyethylene sheets (high or low density polyethylene, thickness from 1 to 5 mm) to each other. For the manufacture of anti-filter (waterproofing) screens, we use polyethylene sheets, both domestically produced and produced by leading foreign companies. The polyethylene sheets we use are resistant to oil / oil products, as well as to a number of other substances.

The anti-filter screen can be installed in any climatic zone at an ambient temperature of -15 ° C to + 50 ° C (the brittleness of the material appears at temperatures below -40 ° C).

The technology of heat sealing applied by us allows in the shortest possible time to mount a reliable anti-seepage screen at any industrial facility, regardless of the hydrogeological features of the territory. At the same time, the filtration coefficient of the screens we install is several orders of magnitude lower than the traditional clay-based waterproofing.

Ecoservice Oil has modern specialized equipment and qualified personnel with successful practical experience in the installation of anti-filter screens at various industrial facilities.

Assembling retaining wall

Posted on October 18, 2023 by admin

Assembling retaining wall

Anti-filtration covering and additional products and services

Description
Properties

Request Order

Description

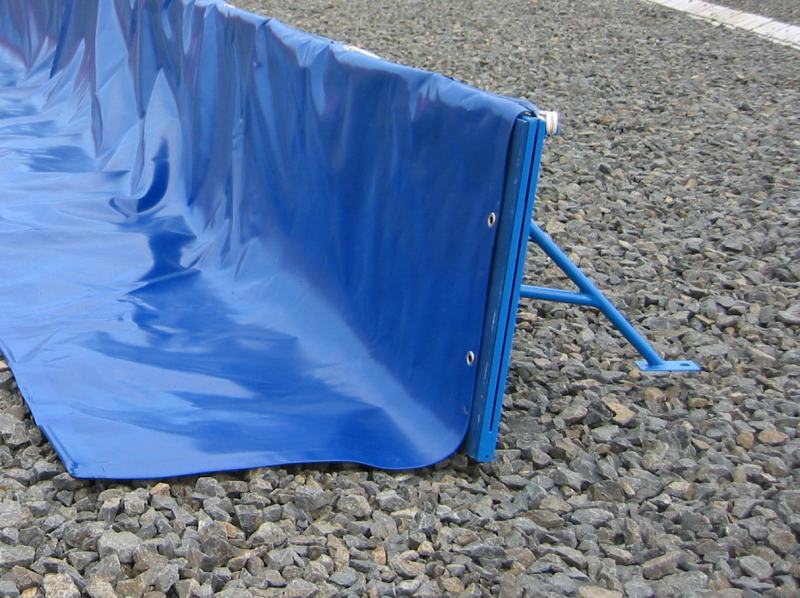

“Ecoservice Oil” offers a new type of product – assembling retaining wall (temporary ground dam).
The assembling retaining wall allows for the containment of oil spills on the surface of the earth, creating a temporary barrier on the way of spreading oil / oil products.
The use of a retaining wall makes it possible to significantly speed up work to contain an oil spill on the ground. This equipment has a number of advantages in comparison with the traditional earthen embankments (there is no need to use special construction equipment; ease of installation and dismantling of the retaining wall, etc.).
The retaining wall is produced in the form of separate sections with a length of 15 m. The sections are interconnected with quick-release locks and covered with a canopy made of polymer-fabric material with a double-sided PVC coating.

Properties

Description	Ratings
Overall dimensions of a section in operating condition: length, m width, m height, m	15 1,0 0,5
Overall dimensions of a section in transport condition: length, m width, m height, m	3 0,4 0,5
Total weight of a section, kg	≤130
Installation time of a section (2 persons) min	≤5

Assembling Hangars

Posted on October 18, 2023 by admin

Assembling Hangars

Auxiliary Equipment

Assembling hangar in operational condition

Assembling hangar in transport condition

Hangar carcass

Description
Properties

Request Order

Description

“Ecoservice Oil” company offers an assembling hangar (7.5 x 4.0 m) for temporary storage of equipment and materials on a field.
Recommended areas of application of a collapsible hangar are the creation of a shelter or a temporary storage facility at industrial sites of industrial facilities, industrial facilities, industrial facilities, when carrying out scheduled repair work on main oil pipelines.
The hangar is made-up of a quick-assembly metal frame covered with an awning made of polymer-fabric material with a double-sided PVC coating.
This material is resistant to oil, gasoline, oils and ultraviolet radiation.
The color of the awning material is at the request of the Customer.
The permissible ambient temperature during storage and operation of a collapsible hangar is from -10 ° С to + 60 ° С.

Properties

Dimensions – 7,5 х 4 m;
Maximum height – 3,2 m;
Maximum lenght of components – 4 m;
Volume in transport condotion – 1 m³;
Weight – 350 kg.

Diesel-hydraulic power pack MNS-6/1 BK series

Posted on October 18, 2023 by admin

Diesel-hydraulic power pack MNS-6/1 BK series

Auxiliary Equipment

Diesel hydraulic power pack MNS-6/1 BK series

Description
Properties

Request Order

Description

Diesel hydraulic power pack MNS-6/1 BK series is designed for autonomous operation of different hydraulic equipment including hydraulic reels for the deployment and storage of the sea inflatable booms Zaslon-Sea series.
Diesel hydraulic power pack MNS-6/1 BK series is reverse one, that means that it can be used both for the booms’ deployment and for booms’ bringing aboard from water surface.

Properties

Characteristic	Parameters
Weight (dry), kg	85
Dimensions, mm	810х810х820
Hydraulic tank capacity, l	30
Quantity of the hydraulic flows	1
Maximum pressure of the working liquid, MPa	20
Engine type	diesel
Power, kW	Not less then 6,0
Nominal temperature of the working liquid	45°С

Manual winch

Posted on October 18, 2023 by admin

Manual winch

Auxiliary Equipment

Manual winch

Description
Properties

Request Order

Description

A manual winch is designed for setting up booms of the “Zaslon” and “Shield” series. It allows you to quickly create reliable barrage boom lines on small rivers with a width of up to 40 m and a current speed of up to 1.5 m / s.

Properties

Weight – 40 kg;
Winch diameter – 6,4 mm;
Reel volume – 40 rm.
