Anchor Systems

Auxiliary Equipment

Anchor system for setting booms on water with a current speed of up to 3,0 m/s

Description
Equipment
Properties

Request Order

Description

“Ecoservice Oil” company offers anchor systems for setting up booms of the “Zaslon”, “Zaslon-Sorb” and “Shield” series.

Equipment

steel galvanized chain, dia: 8 mm, lgth: 1m;
nylon cable, dia:16 mm, lgth: 15 m;
nylon cable, dia:16 mm, lgth: 2 m;
signal buoy;
holding buoy;
nylon cable, dia: 12 mm, lgth: 12 m.

Properties

Parameter	Anchor system for setting booms on water with a current speed of up to 0.5 m/s	Anchor system for setting booms on water with a current speed of up to 1,0 m/s	Anchor system for setting booms on water with a current speed of up to 3,0 m/s
Heidht, mm	55	100	200
Weidht, kg	7,5; 10; 25; 30	60; 80	60; 80; 120; 130

Spill Response Kit

Auxiliary Equipment

Spill Response Kit

Description
Equipment

Request Order

Description

Eсoservice Oil offers equipment that can be successfully used in the containment and elimination of the consequences of leaks of small volumes of oil/oil products – “Spill Response Kit”.
The Spill Response Kit can be used successfully:

for localization and elimination of spills of oil products at filling stations;
at pumping stations pumping oil / oil products;
on river and sea vessels transporting oil / oil products;
at other industrial facilities where emergency and chronic leaks of oil / oil products are possible.

Sorbent products of the “Spill Response Kit” are made of sorbent material, for which there is a sanitary and epidemiological conclusion.
The maximum (one-time) sorption capacity of the total stock of all sorbent materials of the “Spill Response Kit” of the standard configuration for one cycle is at least 350 kg (for oil / oil products).
The weight of the “Spill Response Kit” of the standard set is no more than 70 kg.
Configuration of the “Spill Response Kit” can be changed by the wish of the Customer.

Equipment

Mobile container (volume not less than 600 liters) – 1 pc;
Absorbing “minibones” (L = 150 cm, d = 10 cm) – 10 pcs. Sorption capacity of one “minibon” for one cycle – not less than 6.5 kg of oil / oil products. The number of effective cycles “sorption – regeneration (extraction)” – not less than 3*);
Two-layer sorbing “napkin” (40 x 80 cm) – 50 pcs. Sorption capacity of the “napkin” for one cycle is not less than 2.5 kg of oil / oil products. The number of effective cycles “sorption – regeneration (extraction)” – not less than 3*);
Two-layer sorbing “napkin” (40 x 40 cm) – 50 pcs. Sorption capacity of the “napkin” for one cycle is not less than 1.2 kg of oil / oil products. The number of effective cycles “sorption – regeneration (extraction)” – not less than 3*);
Bag for collecting waste sorbent materials – 10 pcs;
Protective gloves – 5 pairs;
Safety glasses – 1 pc.

* taking into account the use of a special squeezing device (OMU-1), which is also supplied by our company (not included in the “Spill Response Kit” delivery set).

Portable Heating Installation

Posted on October 18, 2023 by admin

Portable Heating Installation

Auxiliary Equipment

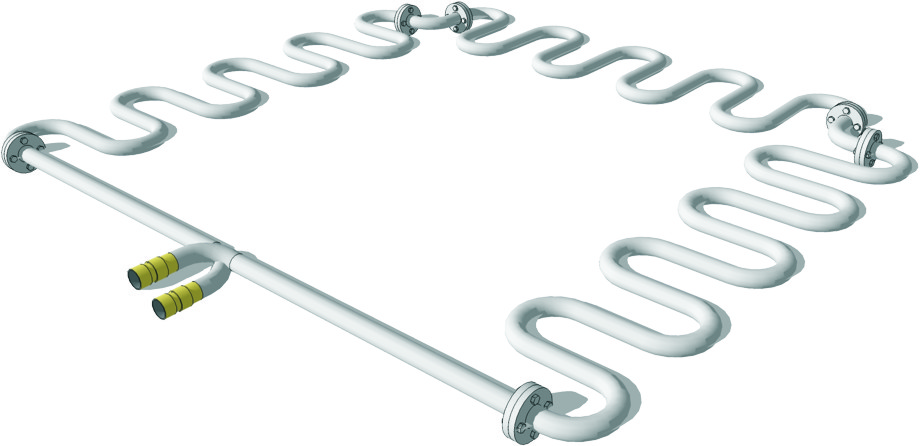

External Heating Unit

General View of pump-powerpack

Description
Properties

Request Order

Description

Company «Ecoservice Oil» offers portable heating installation.
The installation set is good for heating skimmed oil in cold weather conditions and also for increasing fluidity of skimmed high-viscous oil. Moreover the portable heating installation is indispensable when independent heating system needed.
The heating installation independent work is provided by diesel engine. The circulation pump makes the inner liquid heating.
The installation is equipped with a special recovery appliance used for recovering of waste-gas heat that comes out of diesel engine exhaust pipe.
At its first stage the heating installation makes heating fluid circulate and heat the pump’s inner circuit.
Being heated up to 80-90 ^оС heating fluid comes to the outer heat generating set closed circuit. The shape and the size of the outer heating coil may vary according to the goals.
Diesel engine exhaust pipe equipped with spark arrestor.
Depending on coil length and size required by customer the heating installations can be manufactured with power packs output from 10 till 90 kW.

Properties

Description	Ratings
Total weight of heat-generating installation, (dry), kg	250
Overall dimensions, mm	1180 х 710 х 910
Hydraulic tank capacity, l	40
Maximum pressure of the inner fluid, МPa	0,02
Pumping power unit engine model and type	Diesel, Lombardini 25 LD 330-2
Pumping power unit engine output, кW	12
Number of pumping power unit hydraulic pumps	2
Hand starter	Yes
Fuel tank capacity, l	12,5
Type of the inner fluid	Water or antifreezing agent
Type of hydraulic pump	cavitational
Hydraulic pump capacity, l/min	50
Maximum temperature of the inner fluid in the outer heat generating set closed circuit	+ 80 °С
Maximum time heating of the inner fluid in the outer heat generating set closed circuit till maximum temperature, min	50
Heat transmission power, kW	22
Acceptable environmental temperature during exploitation	not below – 40 °С

Oil Flushing Installation “GP-1”

Posted on October 18, 2023 by admin

Oil Flushing Installation “GP-1”

Auxiliary Equipment

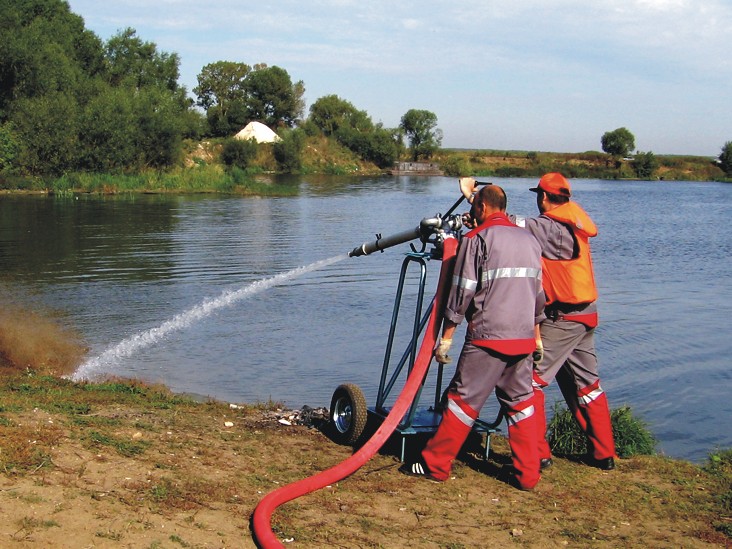

Installation “GP-1”

Installation “GP-1” on catamaran boat

Description
Equipment
Properties

Request Order

Description

Oil flushing installation “GP-1” is designed for flushing the oil from the shoreline and
for herding the oil slick to desired location on water “GP-1” is intended first of all for
cleaning of coastal zone of the rivers and lakes from oil.
Oil flushing installation “GP-1” is delivered in complete set of the equipment consisting of a motor-pump and a regular fire fighting portable monitor.
Installation can be used autonomously or be mounted on the catamaran boat.
Installation “GP-1” can be used:

for cleaning of coastal zone of the rivers and lakes from oil
for cleaning of the equipment used during the oil spill recovery
for fire fighting

Equipment

Motor pump with built-in motor;
Pressure portable barrel (PNPS-20);
Support stand for the barrel;
Suction pressure hose;
A set of pressure relief hoses.

Properties

Description	Ratings
Maximum water delivery, (l/sec)	20
Nameplate water delivery, (l/sec)	13,3
Maximum geometric suction height, m	7,5
Pump type	Two-stage centrifugal console
Motor pump dimensions, m	1,21 х 0,72 х 0,92
Motor pump weight, kg	215
Motor pump engine 75 (hp)	4-stroke gasoline carburetor
Fuel capacity, l	20
Fuel consumption, l/h	8,6
Angle of rotation, deg	360
Maximum speed of water supply by the pressure barrel, l/s	20
Suction pressure hose diameter, mm	100
Relief pressure hoses diameter, mm	70

Floating “RVH-Barge” tank series

Posted on October 18, 2023 by admin

Floating “RVH-Barge” tank series

Tanks for Temporary Storage of Oil

Assembled “RVH-25B” Tank

“RVH-25B” Tank

“RVH-25B” Tank scheme

Description
Properties

Request Order

Description

“Ecoservice Oil” offers quick-deployable floating tanks, which are inflatable structures made of neoprene-based polymer material. This material is resistant to oil, gasoline, and ultraviolet radiation.
The tank is equipped with a clip-on covering canopy in order to prevent atmospheric precipitation from entering the tank and a towing rope for transportation.

Properties

Characteristic	RVH-10B	RVH-25B
Length, mm	6900	9000
Width, mm	3300	4000
Side height, mm	800	900
Side height at bow, mm	1000	1150
Side height at stern, mm	850	980
The height of the above-water part with a frame canopy, mm	1300	1450
Draft (filled), mm	1200	1650
Weight without cover canopy, no more than, kg	200	260
Operational volume, m³	10	25
Number of air chambers, pcs	6	8
Overall volume of air chambers, m³	10	15
Storage temperature, t°	[-50; +70]
Material	Neoprene/Chloroprene
Resistance to seawater	resistant
Resistance to oil / petroleum products	resistant
UV resistance	resistant

Flexible “RVH-S” tank series

Posted on October 18, 2023 by admin

Flexible “RVH-S” tank series

Tanks for Temporary Storage of Oil

Description
Properties

Request Order

Description

The “RVH-S” flexible storage tanks manufactured by company “Ecoservice Oil” are designed for temporary storage of oil and other oily fluids and water.

The flexible storage tanks “RVH-S” series are available in a range of sizes up to 200 m3. The “RVH-S” exterior casing is made of synthetics with two-sided polyurethane coating, which is perfectly resistant to oil, gasoline, mineral oil, sea water and ultraviolet influence.

Recommended areas of application of the “PVH-S” series tanks:

during the elimination of emergency oil / oil products spills;
as a reservoir for receiving and storing water;
as a reservoir for detergents when washing equipment under high pressure, etc.

The end ends of the tanks are equipped with corners made of galvanized steel with hinges for fixing the tank with guy wires.
The tank has a neck for loading and unloading. The connector type and throat diameter are set according to customer requirements. Along the perimeter of the canvas, special loops are welded, designed for ease of installation.

To avoid damaging of the exterior tank casing it is preliminary recommended to guard its underlying surface with protective foamed polyethylene layer (delivered together with equipment). To decrease the level of tank fluid evaporation, as well as to avoid the influence of rain and other precipitation, covering canopy is applied (delivered together with equipment).

The customer can choose the color of the external side.

Storage and operation ambient temperature recommended for the “RVH-S” series tanks should be within the range from -30°C to + 60°C.

Properties

Storage modification	Operational volume, m³	Overall dimensions of the container in working condition, m	Volume in transport condition, m³	Weight in transport condition, kg
“RVH-50S”	50	7,8 х 6,8 х 1,0	0,68	170
“RVH-60S”	60	8,0 х 7,5 х 1,0		190
“RVH-70S”	70	9,0 х 7,0 х 1,0		210
“RVH-80S”	80	10,0 х 7,5 х 1,0		230
“RVH-100S”	100	10,0 х 9,0 х 1,0	0,72	250
“RVH-200S”	200	20,0 х 9,0 х 1,0	1,00	400
“RVH-250S”	250
“RVH-500S”	500

Floating “RVH-P” tank series

Posted on October 18, 2023 by admin

Floating “RVH-P” tank series

Tanks for Temporary Storage of Oil

Floating Tank “RVH-P”

Description

Request Order

Description

The «RVH-P» floating tanks manufactured by company «Ecoservice Oil» are designed for temporary storage and towing of oil and other oily fluids and water. The floating tanks «RVH-P» series are available in a range of sizes up to 20m³.
The «RVH-P» series floating tanks are made of polymeric material. This material is perfectly resistant to oil, gasoline, sea water and ultraviolet influence. The customer can choose the color of the external side.
The front ends of the tanks have special fittings made of anodized aluminum and supposed for connecting some tanks in case of their combined towing. Every «RVH-P» series floating tank has the towing bridle. The «RVH-P» series floating tank has two connections used for filling and offloading. Also there is a small threaded connection for the navigation light on the top of the tank.
Floating tank also can be used on the ground to storage oil/oil pruducts. Storage and operation ambient temperature recommended for the «RVH-P» series tanks should be within the range from -30°C to + 60°C.

Frame “RVH-Сarcass” tank series

Posted on October 18, 2023 by admin

Frame “RVH-Сarcass” tank series

Tanks for Temporary Storage of Oil

Inside “RVH-100К” Tank

Tank “RVH-100К” in Operational Condition

Tank “RVH-100К”

Description
Properties

Request Order

Description

The “RVH-Сarcass” series quick-installed framed tanks manufactured by company «Ecoservice Oil» are designed for temporary storage of oil/petroleum products and other oily fluids and water.
Recommended range of application of the “RVH-Сarcass” series tanks:

oil/petroleum product outflow elimination;
fire extinguisher water reservoir;
detergent service tank applied for equipment washing under high pressure etc.

The “RVH-Сarcass” series tank framework is enforced by its sidewalls made of 6 mm thick water-resistant plywood that is sealed in the foamed polyethylene casing.
The “RVH-Сarcass” series tank exterior casing is made of two-sided PVC or PVC+ polyurethane coating polymer-tissue fabric. These materials are perfectly resistant to oil, gasoline, mineral oil, sea water and ultraviolet influence.
To avoid damaging of the exterior tank casing it is preliminary recommended to guard its underlying surface with protective foamed polyethylene layer (delivered together with equipment).
To decrease the level of tank fluid evaporation, as well as to avoid the influence of rain and other precipitation, covering canopy is applied (delivered together with equipment).
The “RVH-Сarcass” series tank is painted in yellow and orange.
Storage and operation ambient temperature recommended for the “RVH-Сarcass” series tanks should be within the range from -30°С to + 60°С.

Properties

Tank modification	Operational tank volume, m³	Operating condition overall dimensions, m	Transportation volume of the tank, m³	Transportation weight of tank, kg
“RVH-1,0C”	1,0	Ø1,5; h 0,65	0,14	20
“RVH-1,5C”	1,5	Ø1,5; h 0,85	0,16	30
“RVH-2,5C”	2,5	Ø1,8; h 1,0	0,20	35
“RVH-3,0C”	3,0	Ø2,5; h 0,65	0,26	38
“RVH-4,0C”	4,0	Ø2,5; h 0,85	0,30	43
“RVH-5,0C”	5,0	Ø2,5; h 1,0	0,43	55
“RVH-8,0C”	8,0	Ø3,2; h 1,0	0,7	95
“RVH-10C”	10	Ø3,6; h 1,0	1,8	125
“RVH-100C”	100	Ø12,8; h 1,0	2	770
“RVH-200C”	200	Ø15,9; h 1,0	≤3	1000
“RVH-250C”	250	Ø19,1; h 1,0	≤3	1200
“RVH-300C”	300	Ø22,3; h 1,0	≤3	1400
“RVH-450C”	450	Ø25,5; h 1,0	≤4	1600
“RVH-500C”	500	Ø28,6; h 1,0	≤4	1800

Sorbing material storage device

Posted on October 18, 2023 by admin

Sorbing material storage device

Reels for booms and sorbing material

Description
Properties

Request Order

Description

For the convenience of storing and using the sorbent material, Ecoservice Oil offers a special device made of aluminum pipes.

Properties

Height in operating (completed) condition – 1.7 m;
Device width – 0.9 m;
Maximum capacity of the device (sorbing material) – 80 m2;
Device weight (without sorbing material) – 7 kg;
Device weight (with sorbing material) – 31 kg

Hydraulic reel (“BK series”) for sea oil booms

Posted on October 18, 2023 by admin

Hydraulic reel (“BK series”) for sea oil booms

Reels for booms and sorbing material

Description
Properties

Request Order

Description

Hydraulic reel “BK” series is designed for the deployment and storage of different inflatable booms including sea booms “Zaslon-Sea” series.
Hydraulic reel “BK” series comes in two modifications – BK-1500 for the housing of the inflatable booms with the total height not more than 1500 mm; and reel BK-2000 for the housing of the inflatable booms with the total height not more than 2000 mm.
Capacity of both modifications of reels is up to 250 running meters of booms.

Properties

Parameter	Value
Parameter	BK-1500 (480101)	BК-2000 (480102)
Speed of rotation, r/min	adjustable, up to 5	adjustable, up o 5
Length, mm	2700	3100
Width, mm	1820	1820
Height, mm	2030	2030
Weight (without booms), kg	630	750
Drum material	steel	steel
Frame material	steel	steel
Channels for the fork lifter	+	+
Slinging device	+	+
Backing roller for the booms	+	+
Hydraulic flow, l/min	40	40
Hydraulic pressure, MPa	20	20
Necessary power of the power pack, kW	Not less than 15,0	Not less than 15,0

Anchor Systems

Description

Equipment

Properties

Spill Response Kit

Description

Equipment

Portable Heating Installation

Description

Properties

Oil Flushing Installation “GP-1”

Description

Equipment

Properties

Floating “RVH-Barge” tank series

Description

Properties

Flexible “RVH-S” tank series

Description

Properties

Floating “RVH-P” tank series

Description

Frame “RVH-Сarcass” tank series

Description

Properties

Sorbing material storage device

Description

Properties

Hydraulic reel (“BK series”) for sea oil booms

Description

Properties

Get Order

Заказ на товар

Receive callback

Заказ обратного звонка
